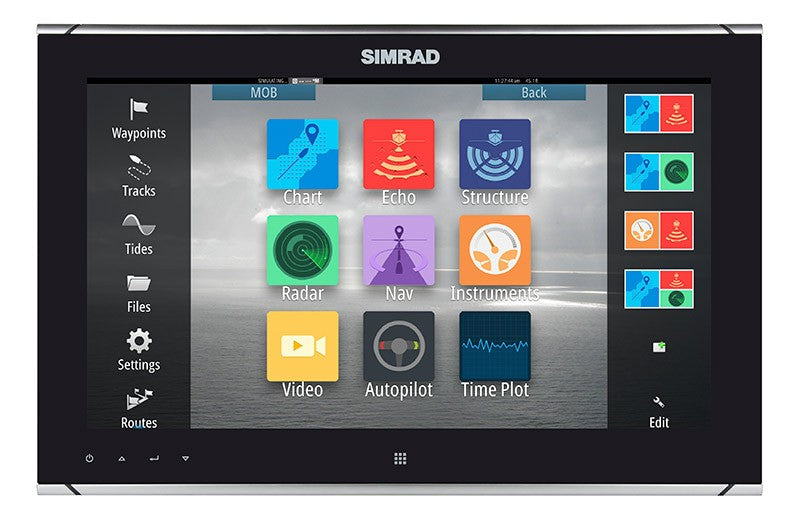

Simrad MO16-T Marine 16” Widescreen High Bright Multi-touch HD Monitor for evo2 Processor

Simrad MO16-T Marine 16” Widescreen High Bright Multi-touch HD Monitor for evo2 Processor

Sale
Regular price $2,299.95
1 available

Marine 16” Widescreen High Bright Multi-touch HD Monitor for evo2 Processors
Enclosure: ABS Plastic Rear Case, Glass Front
Operating Temperature: -15°C to +55°C
Non-Operating Temperature: -20°C to +60°C
Water Ingress: IPx6 (When dash mounted), IPx2 from back
Dimensions (WxHxD): 400 X 260 X 74 mm
Display Brightness: 1000 nit
Display Resolution: 1366 X 768
Display Viewable Area (WxH): 344 X 194 mm
Display Color Depth: 16.7 Million Colors
Display Viewing Angle H/V deg: 60/60/60/60
Contrast Ratio: 500:1
Touch Screen - Projected
Capacitance Multi Touch: Yes´
Operating Voltage: 10 - 31.2 V DC
Power Consumption (nominal): 20W
Low Power Standby Mode: Yes
Protection: Reverse polarity and temporary over-voltage to 36V
Conformity: CE, C-Tick, HDMI
Power and Setup Keys: Capacitive Touch - Power Key, Up, Enter, Down, Home

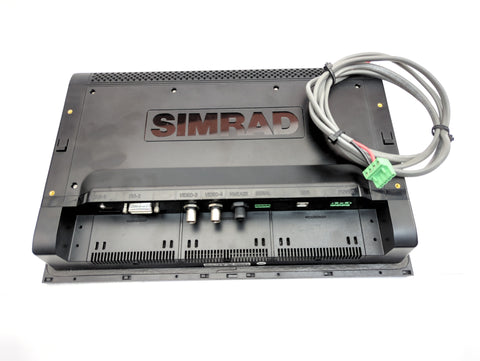

NMEA 2000: 1 port on rear (Micro-C male)
Composite Video Inputs: 2 ports on rear (BNC female. NTCS or PAL format)
Digital Video Inputs: 2 ports on rear (1 x DVI-D, 1 x HDMI)
Supported Video Resolutions: 640x480(VGA 4:3), 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9), 1280x800 (16:10), 1280x1024 (SXGA 5:4),1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200(WUXGA 16:10)
USB: USB Type-B Plug on rear for alternate touch screen connection
Serial: 4 way serial plug on rear for touch screen connection via RS422 to NSO evo2
Picture in Picture: Yes, Variable size and position
Thermal Protection: Automatic - Backlight reduced to 10%
Menu Languages: English, French, German, Spanish, Italian, Portuguese
Features:
- Low Profile Glass Bridge Design
- More Screen, Less Border
- Widescreen Displays, HD Resolutions
- Touch/Non-Touch Option
- High Bright Backlight Option
- Picture in Picture
- On-Glass Menu Keys
- VESA bracket Mounting Option
- IP66 in Dash Mounting
- Suitable for any monitor application (not limited to Simrad)
For use with:
- Simrad evo2 Processors or as a normal monitor.
Manufacturer: Simrad
Model Number: Monitor
Part Number: MO16-T

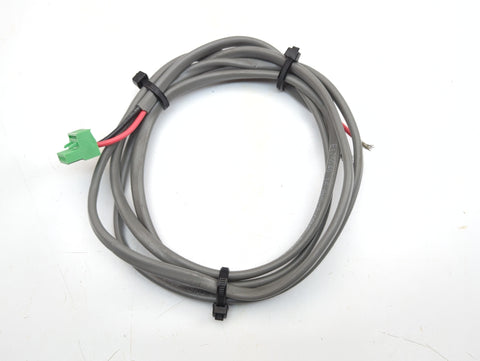

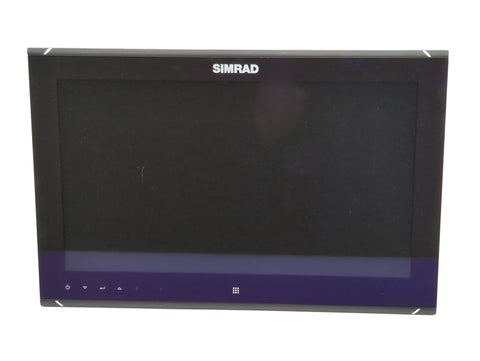

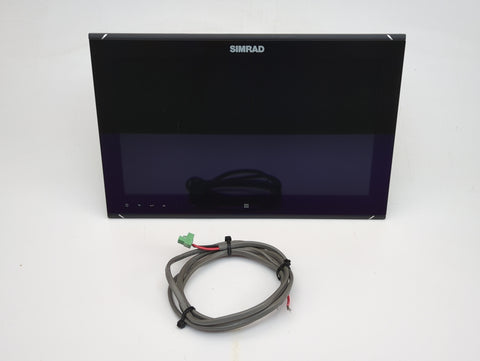

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
