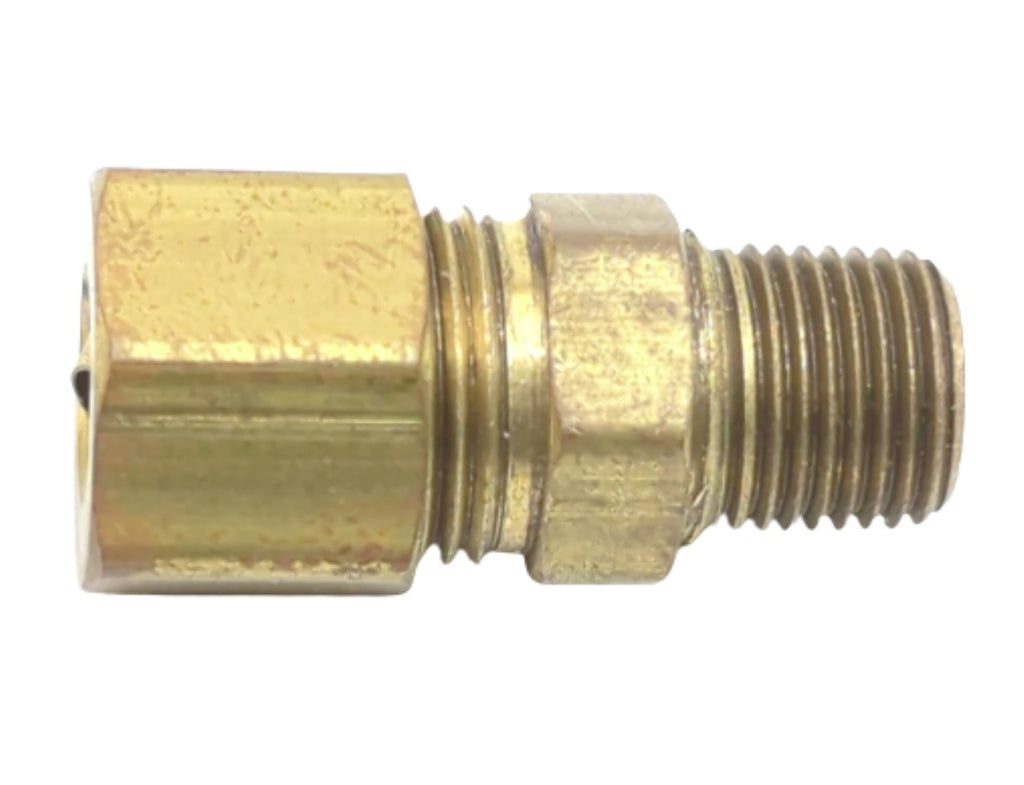

- 1/4” Compression X 1/8” MNPTF Straight Brass Male Adapter Fitting
- End Style: Compression X Male NPTF
- Size: 1/4” x 1/8”

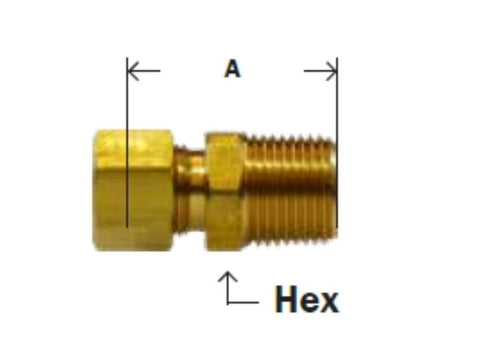

- A: 0.88
- Hex: 0.43
- Shape: Straight / Connector
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME, and SAE
- Manufacturer: Midland Metal
- Model Number: Male Adapter
- Part Number: 18-179, 18179
- Also Known As:
- 00068-0402, 168420, 2684, 268X4, 2P237, 50915K314, 68-42, 68-4A, 684A, 68A-4A, 68C-4-2, 68x4, C68-4-2, S68-4-2
