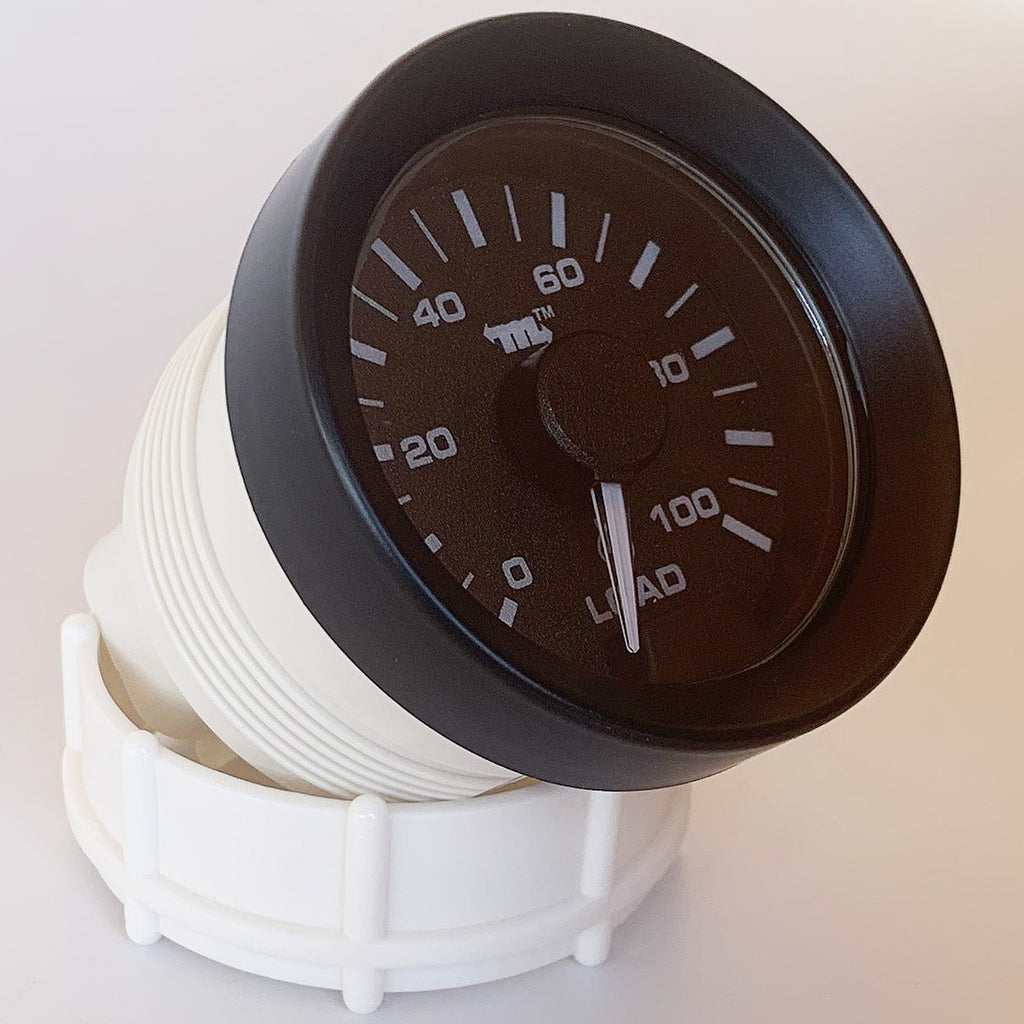

Murphy PVA20-D-100-EB 78700072 PowerView Analog Percent Load At Current RPM Gage
- Murphy PVA20-D-100-EB 78700072 PowerView Analog Percent Load At Current RPM Gage
- Size: 2”
- Cut Out: 2.062”
- Power: 12/24V
- Gauge Range: 100% Load @ Current RPM
- Gauge Series: PVA20 Series
- Bezel: Contemporary Glossy Black
- Face: Black
- Numbers: White
- Indicators: White
- EB = Contemporary Glossy Black Domed Lens
- Backlight Maximum Current: 24 mA (Not valid for PVAA20)
- Input: RS485 MODBUS RTU Data
- Output: Analog readout
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
- Storage Temperature: -76°F to 185°F (-60°C to 85°C)
- Gage Accuracy: Better than ± 1% of the full scale
- Maximum Panel Thickness: 3/8 inch (9.6mm)
- Connectors: 6-pin Deutsch DT06 Series
- For use with:
- Modern Electronic Engines and Equipment Using SAE J1939 Controller Area Network
- Manufacturer: Murphy PowerView
- Model Number: PVA20-D-100-EB
- Part Number: 78700072, 78-70-0072
