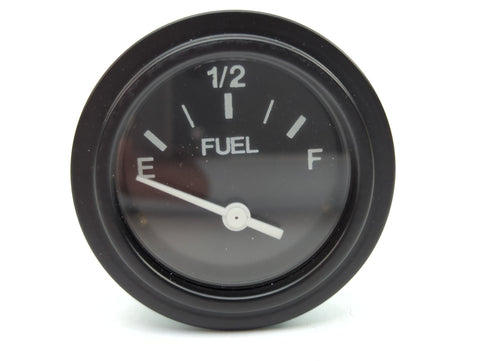

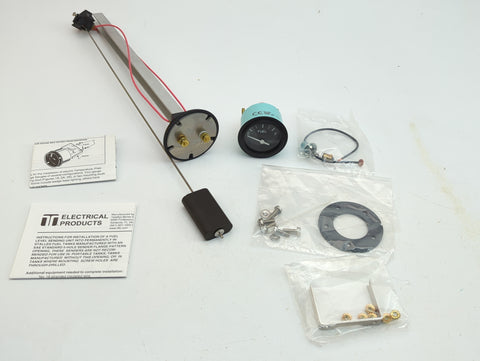

Teleflex 56948P 56948 Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge
Teleflex 56948P 56948 Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge
Teleflex 56948P 56948 Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge
Teleflex 56948P 56948 Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge

Teleflex 56948P 56948 Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge

  • Sale
  • $114.95
  • 1 available
  • Sender Kit 4" - 24" Tank Depth with E-1/2-F Fuel Gauge
  • Size: 2”
  • Cut out: 2-1/18”
  • Power: 12 Volt
  • Gauge Range: E-1/2-F
  • Gauge Series: Analog
  • Bezel: Black
  • Face: Black
  • Numbers: White
  • Indicators: White
  • Adjustable for tank depths from 4" to 24".
  • Left or right arm adjustable in 90deg increments.
  • Standard SAE 5-hole pattern, rust proof Delrin flange with rigid aluminum insert.
  • 10-24 stud connections for maximum integrity.
  • Stainless steel, aluminum and brass construction.
  • 240 (empty) to 33 (full) ohm resistance range.
  • Manufacturer: Teleflex Morse Seastar
  • Model Number: 56948
  • Part Number: 56948P
  • Also Known As: Sierra 56948P
