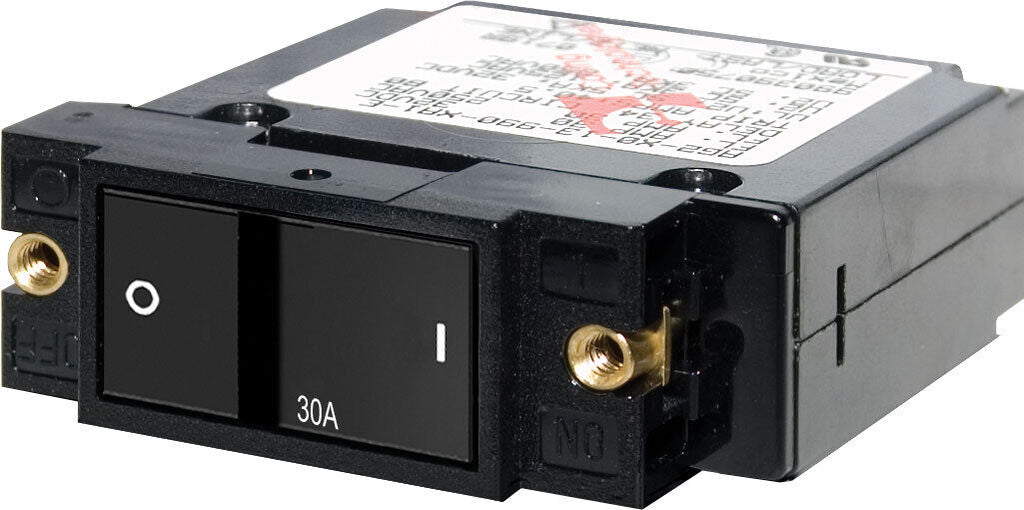

Blue Sea 7406 A-Series Single Pole Small Case 2” 240V AC 32V DC 30A Flat Rocker Circuit Breaker

A-Series Single Pole Small Case 2” 240V AC 32V DC 30A Flat Rocker Circuit Breaker
Amperage: 30A AC, 30A DC
Actuator Style: Flat Rocker
Poles: 1
Maximum Voltage: 240V AC, 32V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 3000A @ 125V AC, 1500A @ 240V AC, 5000A @ 32V DC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature : 85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Screw Terminal Torque: 14 in-lb (1.58 Nm)
Switching Cycles: 10000
Terminal Screws: #10-32 Stainless Steel
Manufacturer: Blue Sea
Model Number: A-Series
Part Number: 7406
