Blue Sea 7702 ML-RBS ML-Series Locked Off 24 VDC 500A Remote Battery Switch

Blue Sea 7702 ML-RBS ML-Series Locked Off 24 VDC 500A Remote Battery Switch

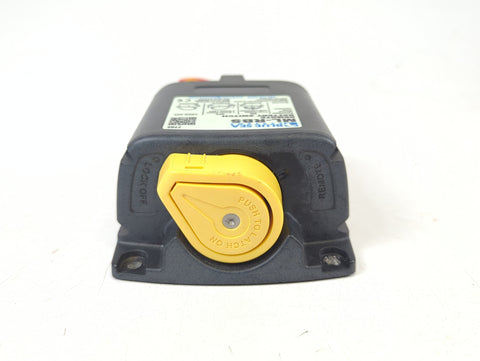

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
LED output to remotely indicate switch state - requires optional LED
3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7∕ 8" (22 mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads
Voltage: 24V DC
Amperage Operating Current: 0 mA
Manual Control: Yes
Control Circuit Voltage: 18-32V DC
Continuous Rating: 500 Amps DC
Intermittent Rating: 700 Amps DC (5 minutes)
Cranking Rating: 1450 Amps DC (30 seconds)
Operating Temperature: Control: -10° C
Terminals: Battery Connections: 3/8" size plated copper studs
Manufacturer: Blue Sea System
Model Number: ML-RBS ML-Series
Part Number: 7702

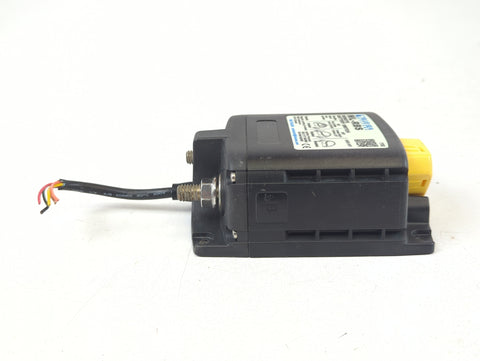

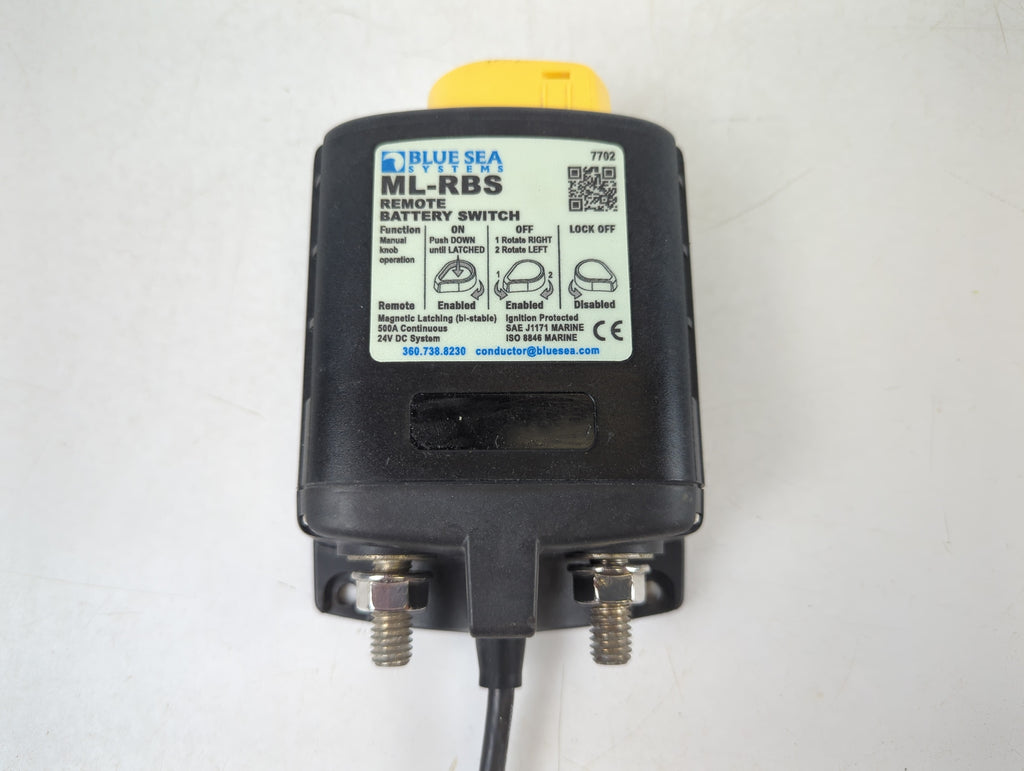

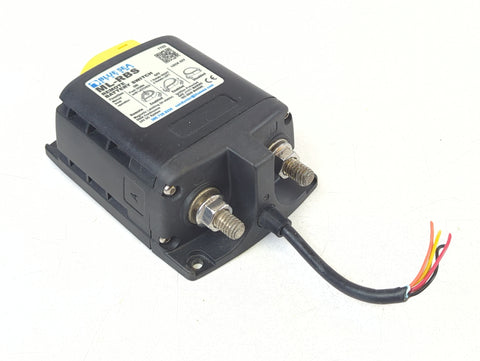

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
