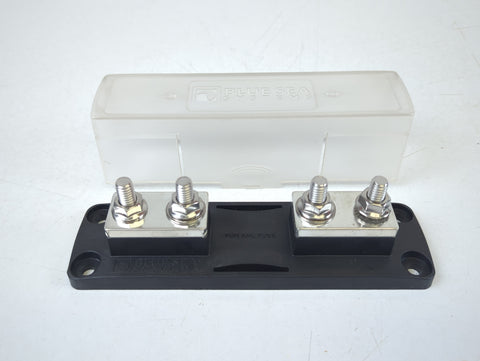

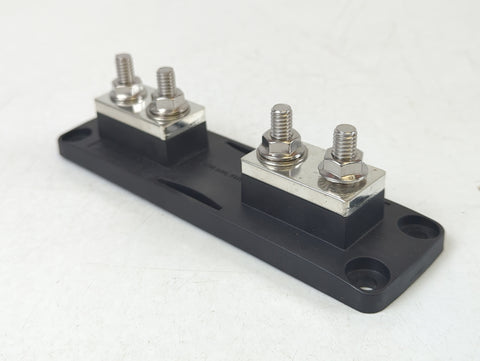

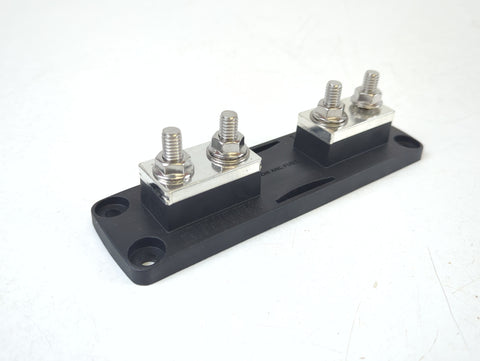

- Blue Sea Systems 5503 Boat Marine Heavy Duty 35–750 AMP ANL Fuse Block

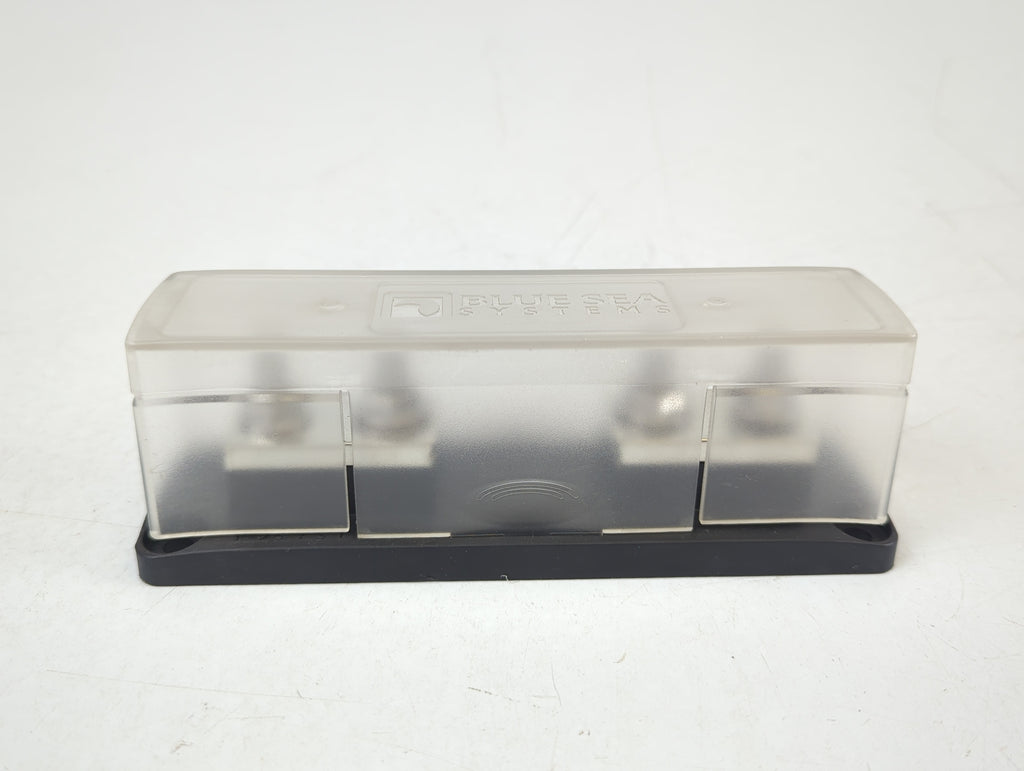

- Cover included
- Accepts 5/16" (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Maximum Voltage: 32V DC
- Stud Size: 5/16"
- Base Material: Reinforced Polycarbonate
- Fuse Mounting Blocks: Tin-Plated Copper
- Maximum Cable Size: 4/0 AWG
- Maximum Torque: 107 in-lb (12.09 Nm)
- Stud Torque: 107 in-lb (12.09 Nm)
- Terminal Stud Size: 5/16" - 18 (M8)
- Manufacturer: Blue Sea Systems
- Model Number: ANL Fuse Block
- Part Number: 5503
- Also Known As: Marinco BEP 778-ANL2S
- Condition: New! In Stock, Ready to Ship! NOS New Old Stock. See Photos.
