Boat Marine 4-Circuit 12V DC Electrical Circuit Breaker Switch Panel West Marine 11861531
Sale
Regular price
$49.95
Will be in stock after

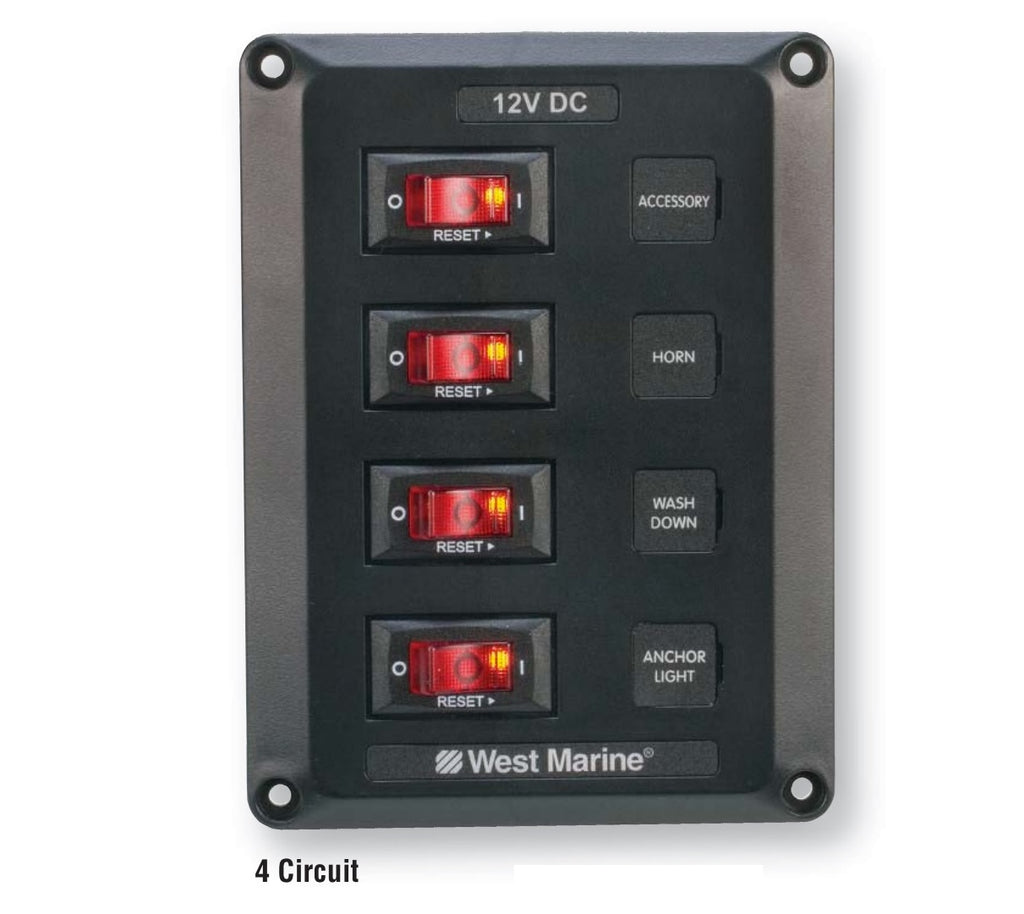

Boat Marine Water Resistant 4-Circuit 12V DC Electrical Circuit Breaker Panel
Size: 4-1/4" W X 5-3/4" H
Cut Out: 2" W X 4-1/2" H
UV stabilized, flame retardant, water resistant, corrosion resistant panel
15 Common square labels
Integrated bus bars and simple two-wire connection eliminate wiring clutter behind panel.
Polycarbonate/ABS panels cannot corrode, are flame retardant and feature LED illuminated ON indication.
Carling 15A circuit breakers are reset by simply switching the breaker off, then on again.
Installation requires placement of an in-line fuse with a maximum rating of 60A between the power source and the panel's positive buss.
To further reduce wiring clutter consider the MAXI Fuse Block (Model 594343) which accommodates tab-style automotive blades fuses from 30A to 80A in its easily-mounted, insulated case.
Design for mounting in dry locations.
Stainless Steel #6 x 5/8" mounting screws included.
