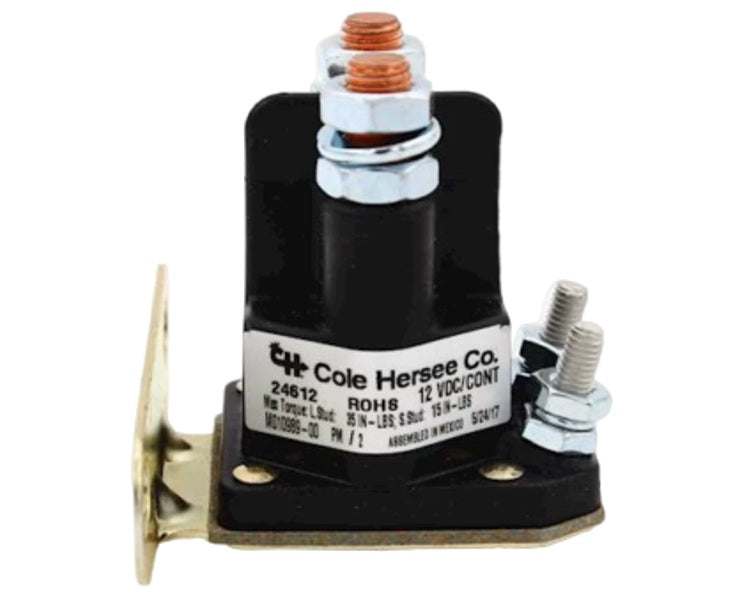

Cole Hersee 24612 Plastic Body 12V 100A Grounded Intermittent Continuous Duty SPST Solenoid

Cole Hersee 24612 Plastic Body 12V 100A Grounded Intermittent Continuous Duty SPST Solenoid

  • Sale
  • $49.95
  • Will be in stock after
  • Plastic Body 12V 100A Grounded Intermittent Continuous Duty SPST Solenoid
  • Normally Open/Normally Closed: Normally Open
  • Circuitry: SPST
  • Contacts: Silver
  • Housing: Plastic
  • Coil Type: Grounded
  • Voltage Rating: 12V DC
  • Continuous Current: 100A
  • Bracket: F
  • Bracket Mounting: Holes 5/16 x 19/32 2-13/64 on center
  • Contact Stud Material: Copper
  • Contact Stud Threads: 5/16"-24 Threads hex nuts and lock washers included
  • Coil Stud Material: Steel
  • Coil Stud Threads: 10-32" hex nuts and lock washers included
  • Type: Intermittent
  • Temperature: -40°C to 59°C (-40 to 140°F)
  • Manufacturer: Cole Hersee
  • Model Number: 24612-BX
  • Part Number: 24612
