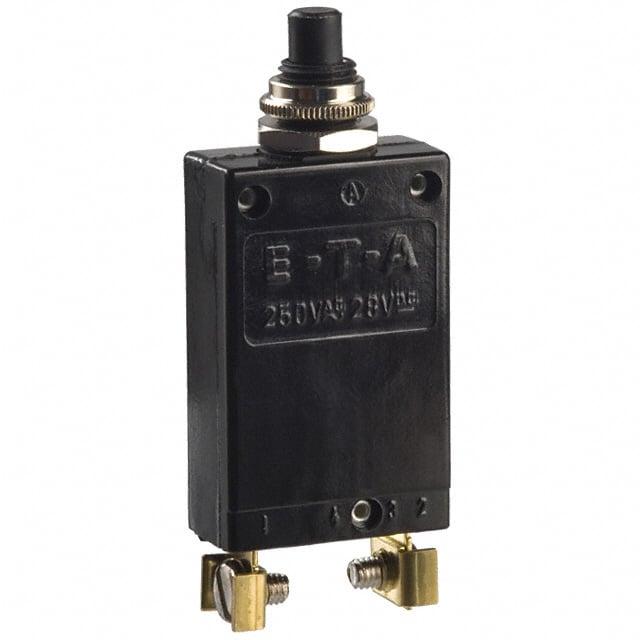

E-T-A ETA 2-5700-iG1-K10-DD-10A 10A 28V Thermal Push-to-Reset Circuit Breaker 45-700-IG8-S10

ETA 2-5700-K10 10 AMP Single Pole Thermal Push-to-Reset Panel Mount Circuit Breaker
Actuator Type: Push-button
Series: 2-5000
Button Color: Black
Current Rating: 10 AMP
Dielectric Strength: 3000 VAC
Dimensions: 1.14 L x 0.571 W x 1.83 H in.
Insulation Resistance: 100 Megohms (Min.)
Mounting Hole Size: D-Shaped, 0.378 Dia. x 0.35 H in
Mounting Type: Chassis, Rear Mount
Number of Poles: 1 Pole
Termination: Screw Terminal
Type: Thermal
Voltage Rating : 250 VAC;28 VDC
Voltage, AC: 250V
Voltage, DC: 50V
For: Motors, transformers, solenoids, battery chargers, power supplies, appliances, machinery, and extra low voltage systems.
Manufacturer: E-T-A
Model Number: 2-5700-K10
Part Number: 2-5700-iG1-K10-DD-10A
Also Known As: 45-700-IG8-S10
Condition: New! In Stock, Ready to Ship! NOS New Old Stock. Shows signs of age and shelf wear.
