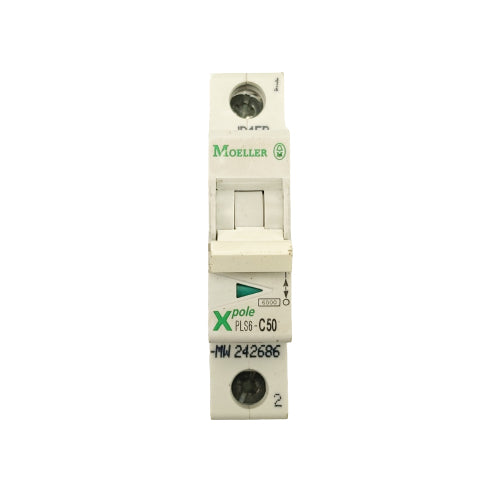

Eaton 242686 Moeller PLS6-C50-MW Type C 1-Pole 50A 230V MCB Miniature Circuit Breaker
- Type C 1-Pole 50A 230V MCB Miniature Circuit Breaker
- Tripping characteristic: C
- Number of poles: 1 pole
- Rated current: 50 A
- Rated voltage: 230 V
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 6 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 0 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 0 kA
- Voltage type: AC
- Frequency: 50 - 60 Hz
- Current limiting class: 3
- Suitable for flush-mounted installation: No
- Concurrently switching N-neutral: No
- Overvoltage category: 3
- Pollution degree: 2
- Additional equipment possible: Yes
- Width in number of modular spacings: 1
- Built-in depth: 70.5 mm
- Degree of protection (IP): IP20
- Ambient temperature during operating: -25 - 75 °C
- Connectable conductor cross section multi-wired: 1 - 25 mm²
- Connectable conductor cross section solid-core: 1 - 25 mm²
- Rated switching capacity according to IEC/EN 60898-1: 6 kA
- Product range: PLS6
- Rated operational current for specified heat dissipation: 50 A
- Heat dissipation per pole, current-dependent: 0 W
- Equipment heat dissipation, current-dependent: 4.5 W
- Static heat dissipation, non-current-dependent: 0 W
- Heat dissipation capacity: 0 W
- Minimum Operating ambient temperature: -25 °C
- Maximum Operating ambient temperature: +75 °C
- Linear, per +1 °C, results in a 0.5% reduction of current carrying capacity
- For use with: Switchgear for Residential and Commercial applications
- Manufacturer: Eaton, Moeller
- Model Number: Circuit Breaker
- Part Number: 242686, PLS6-C50-MW
- Also Known As: PLS6-C50
