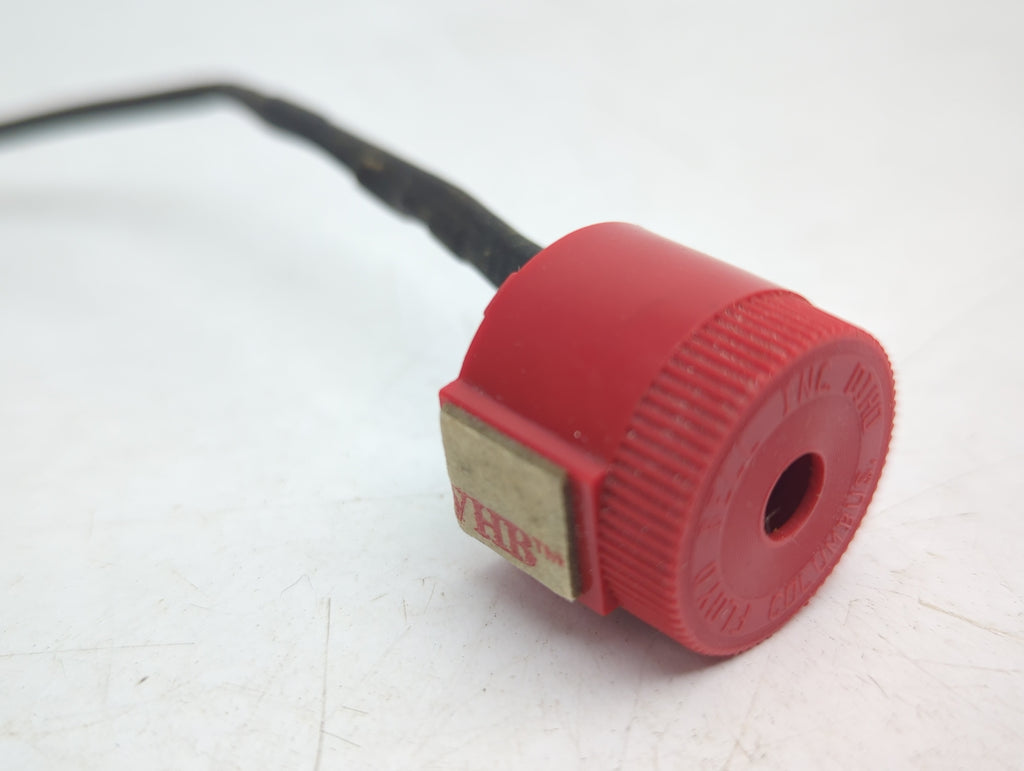

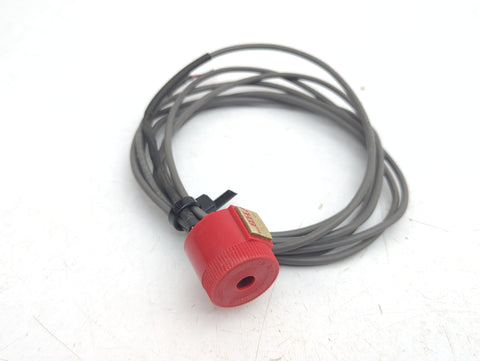

Floyd Bell M-80W SP-509 Adhesive Mount 5-15 VDC Boat Marine Alarm
Sale
Regular price
$14.95
1 available
Floyd Bell M-80W SP-509 Adhesive Mount 5-15 VDC Boat Marine Alarm
Mounting: Adhesive Mount
Operating: Medium Loud Continuous Tone
Operating Voltage: 5-15 VDC
Operating Frequency: 2900±250 Hz
Typical Operating Current: 10 mA at 5 VDC, 50 mA at 15 VDC
Typical Sound Pressure: 92 ±5 dB(A) at 5 Vdc at 24 inches (61 cm), at 25°C, 103 ±5 dB(A) at 15 Vdc at 24 inches (61 cm), at 25°C
Termination: Wires
Termination Strength: Pull test with a maximum of 22 pounds (10 kg) load
Operating Temperature: -20 to +65 °C
Storage Temperature: -40 to +85 °C
Surge Voltage: 20% over maximum rated voltage for less than 5 minutes
Reverse Voltage Protection: To the maximum operating voltage
Construction Materials:
Case- Plastic _NORYL_ N-190, Flame Retardant UL 94-VO
Red Internal Circuit- Audio-oscillator and piezoelectric driver
Potting- 2 parts epoxy resin or silicone, black
Diaphragm- Stainless Steel 304
Construction Materials:
ASTM B117 Certified - Withstands exposure to salt spray for 300 hours
IP 68 Certified - Withstands water submergence and dust exposure
Humidity- 95% relative humidity at +40_C continuously for 100 hours.
Vibration- Withstands vibration between 0 and 55 Hz. on all axes.
Life Expectancy: 10 years under normal operating conditions.
Manufacturer: Floyd Bell
Model Number: M-80W
Part Number: SP-509
Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
