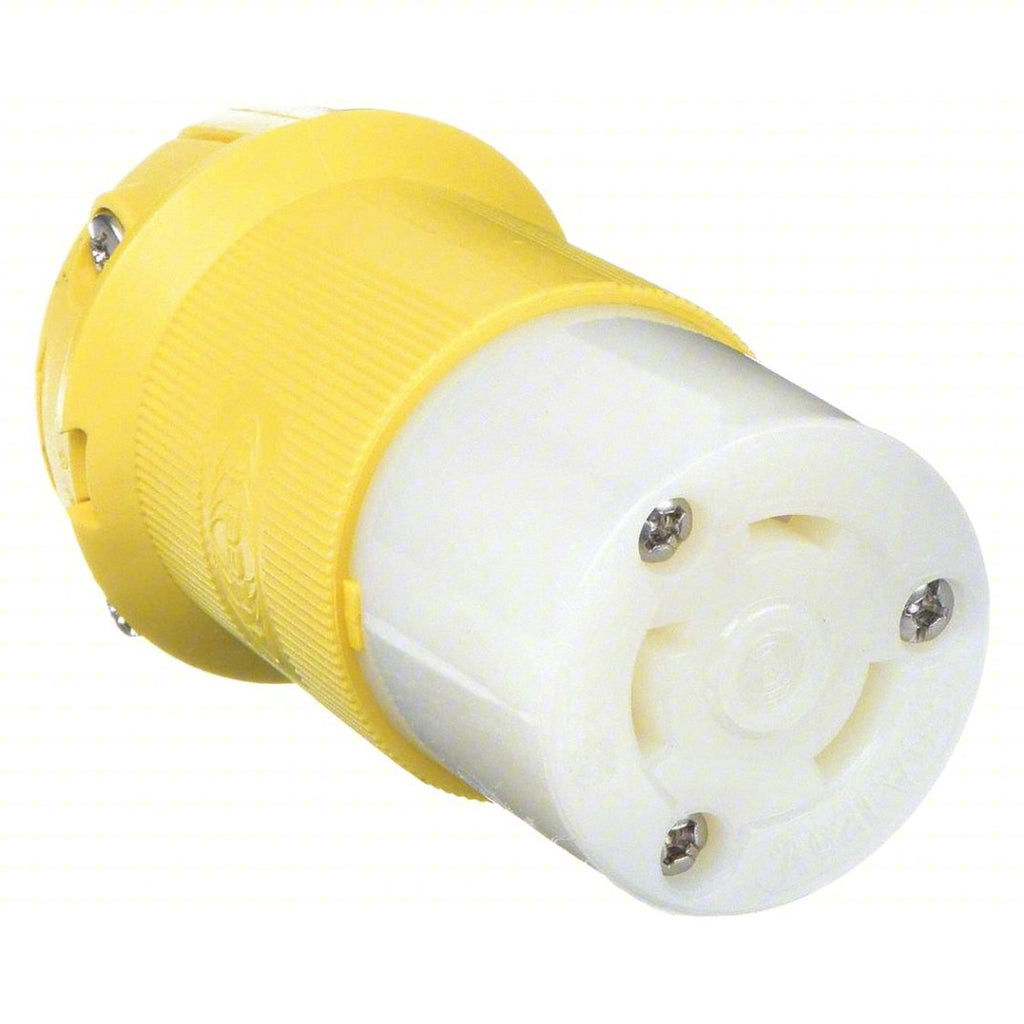

Hubbell 26CM13 Twist-Lock Marine Grade 30A 125V 2-Pole Female Locking Connector

Hubbell 26CM13 Twist-Lock Marine Grade 30A 125V 2-Pole Female Locking Connector

  • Sale
  • $39.95
  • 4 available
  • Marine Grade 30A 125V 2-Pole Female Locking Connector
  • General Specifications:
    • Color: Yellow
    • Material: Nylon
    • Number of Poles: 2
    • Type: Connector Body
    • NEMA Rating: L5-30R
    • Insulation: Insulated Body
    • Cord Range: 0.360"-0.930" (9-24)
    • Application: Heavy Duty Industrial/Marine
    • Material - Mounting Hardware: Cord Mounted
    • Environmental Conditions: Corrosion Resistant
    • Item Type: 30A Corrosion Resistant Insulgrip Connector
    • Dimensions: 2.26” X 2.26” X 3.86” (57.404 X 57.404 X 98.044 mm)
    • Operating Temperature: Maximum Continuous 75°C and Minimum -40°C without Impact
    • Performance:
      • Electrical - Current Interrupting - Certified for current interrupting at full rated current
      • Electrical - Dielectric Voltage - Withstands 2,000V minimum
      • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
      • Environmental - Moisture Resistance - IP20 Suitability
      • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
      • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
      • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Electrical Specifications:
    • Amperage: 30A
    • Voltage: 125 VAC
    • Phase: Single Phase
    • Connectivity: Pressure Terminal Screws
    • Dielectric Strength: Withstands 2,000V minimum
  • Conductor Specifications:
    • Cable Range: 0.360” - 0.930”
    • Number of Wires: 3
    • Wire Size: #16 AWG to #8 AWG
  • Manufacturer: Hubbell
  • Model Number: Twist-Lock
  • Part Number: 26CM13
  • Also Known As: 63CM13, Marinco 305CRCN
