Mastervolt 25012000 Mass Sine 12/2000 12V X 120V 2000W True Sine Inverter
Mastervolt offers a complete range of inverters from 300 watt to 40 kwatt in AC Master, Mass Sine and Mass Sine Ultra models. The AC Master is ideal for small and medium-sized applications, while Mass Sine and the advanced Mass Sine Ultra inverters are mainly intended for larger systems and for professional purposes. Mastervolt offers inverters for 230V/50Hz as well as 120V/60Hz (American voltage)
Features:
No humming with HF technology: Our use of high-frequency switch technology means you can say goodbye to humming transformers and hello to efficiency. Mastervolt inverters are also small and lightweight to ensure easy installation.
High peak power during start up: The Mastervolt sine wave inverter can provide up to 200 % surge capacity to equipment that requires extra power during start up.
Efficient use of batteries: A high efficiency when inverting and an automatic economy mode when there is no consumption gives you longer use of your batteries.
Simple and safe to connect: The inverters feature robust connection technology, internal in the larger models and a plug & play socket with cable for the smaller models.
MasterBus compatible: Every Mass Sine inverter can be easily connected to a MasterBus network with only one cable and one connection. You can also choose central, local or remote monitoring, configuration and control of your system.
Specifications:
General:
Output Voltage (± 5%): 120V – 60 Hz (± 0.01 Hz)
Output Waveform: True Sine
Nominal Battery Voltage: 12V
Recommended Battery Capacity: > 200 Ah
Continuous Power at 40 °C / 104 °F, Cos Phi 1: 1800W
P30 Power at 40 °C, Cos Phi 1: 2000W
Peak Load: 4000W

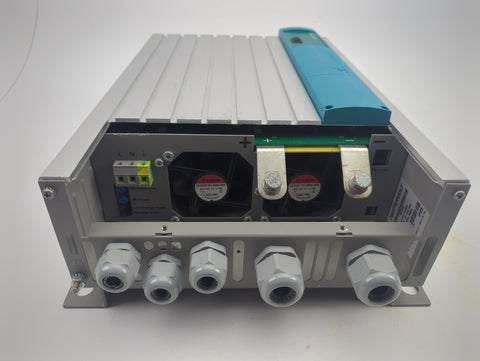

AC Connection: Internal
Efficiency: 92%

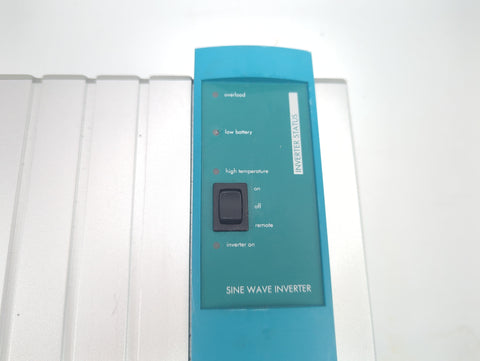

Display/Read-Out: LED Display
Dimensions, Hxwxd: 16.5” X 12.5” X 5.1” (420 X 318 X 130 mm)
Weight: 14.6 kg (32.2 lb)
Approvals CE, E-Mark, ABYC A-31
Technical:
Technology: Hf Switch Mode
Low Battery Voltage, Switches off at: 10 V, ± 0.5 V
Low Battery Voltage, Switches on at: 11 V, ± 0.5 V
High Battery Voltage, Switches off at: 15.5 V, ± 0.5 V
High Battery Voltage, Switches on at: 14.5 V, ± 0.5 V
Max. Ripple on DC (Battery): 5% Rms
Input Current (Nominal Load): 183A
No-Load Power Consumption (On Mode): 480 Ma – 6W
No-Load Power Consumption (Energy Saving Mode): 50 Ma – 0.6 W
Minimal DC Fuse (Slow Blow): 250A
Minimal Cable Size: 70 Mm²
Harmonic Distortion Typical: < 5%
Cos Phi: All Power Factors Allowed
Transfer System: the Masterswitch and Systemswitch Can Be Connected to All Sine Wave Inv
Temperature Range (Ambient Temp.): -25 °C to 80 °C, Derating > 40 °C, -13 °F to 176 °F
Sound Level: 48 Dba at 1 Mtr
Protection Degree: IP23
Protections: Over Temperature, Overload, Short Circuit, High/Low Battery Voltage
Cooling: Natural/Forced
Masterbus Compatible: Yes, using a MasterBus Inverter Interface or AC power analyser
Manufacturer: Mastervolt
Model Number: Mass Sine 12/2000
Part Number: 25012000

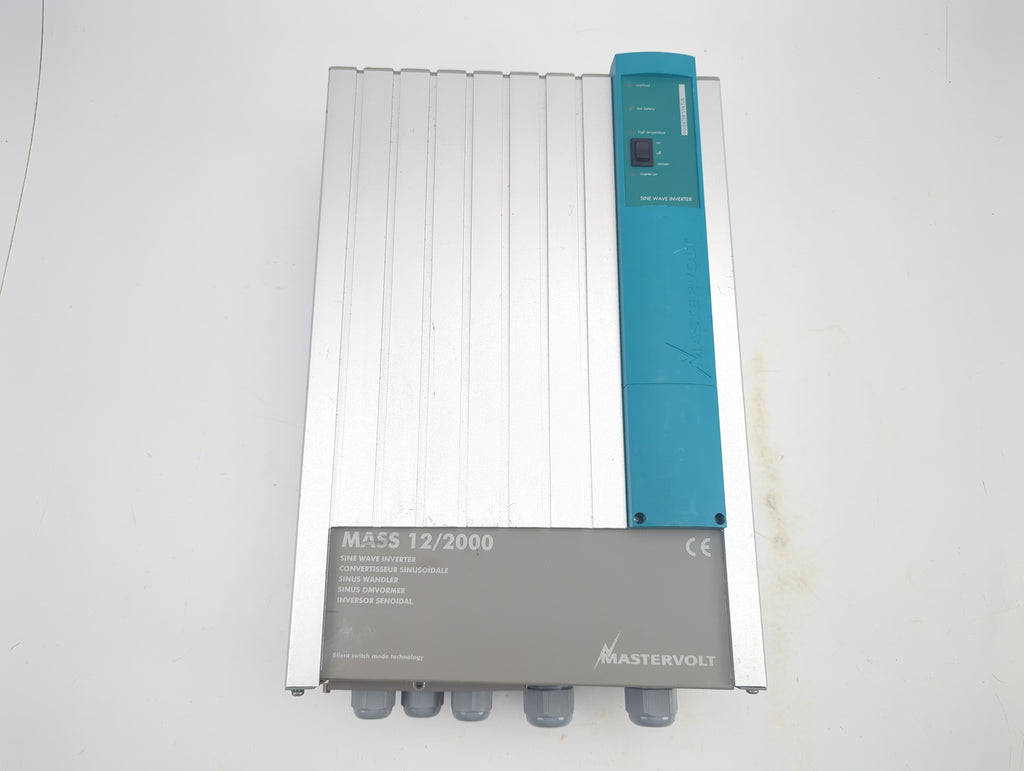

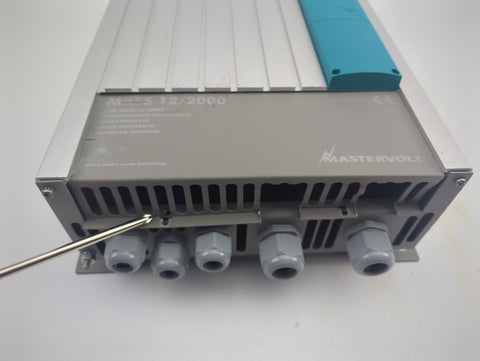

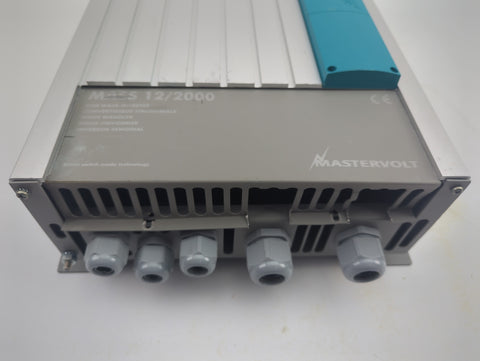

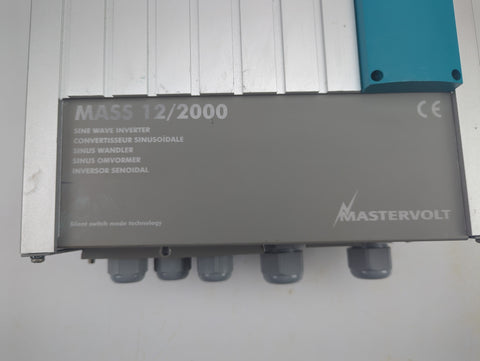

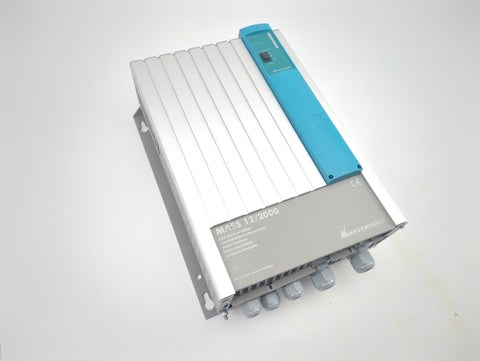

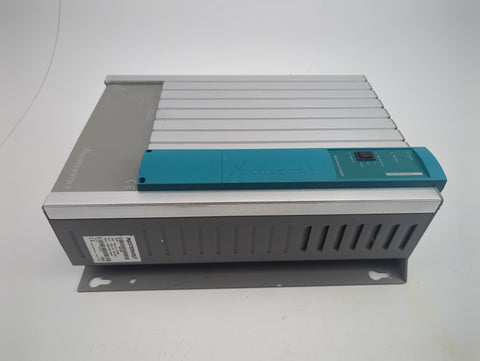

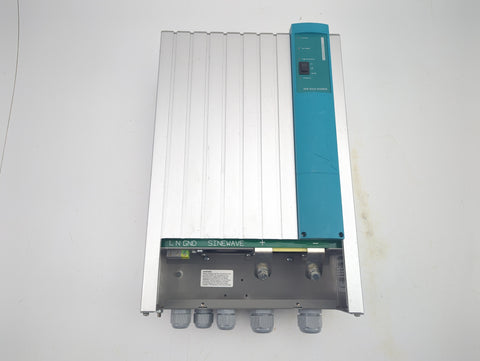

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
