Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.
All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2 and ChargeMaster 24/6). What’s more, you have the option for central, local or remote monitoring, configuration and control of your system.
Features:
For recreational and semi-professional use.
Suitable for any type of battery, including Lithium Ion batteries.
3-Step+ charging technology for fast and complete charging, also charges depleted batteries.
Memory function prevents overcharging in case of unreliable mains.
Safe and complete charging due to standard safety features.
Charging capacity up to 1000 Ah battery banks.
Easy to connect and quick to install.
Can charge multiple battery banks simultaneously.
Built-in system functionality (MasterBus) in combination with other Mastervolt products.
Clear control panel (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2 and ChargeMaster 24/6).
Supplies your system without a battery.
Clear Display: A clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system.
Charging your batteries with every voltage: The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1-regulation gets the most out of limited generator capacity.
Robust Connections: Solid metal-to-metal connectors equipped with strain relief prevent corrosion and overheating.
Charging multiple battery banks: The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.
DC Power Supply: Even if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold.
Specifications:
General:
Nominal Output Voltage: 12V
Total Charge Current: 100A
Number of Battery Outlets: 3
Charge Current Second Output: 10A
Charge Current Third Output: 10A
Battery Bank Size: 200-1000 Ah
Nominal Input Voltage: 120/230 V (90-265 V), 50/60 Hz
AC Connection: Connector Strips
Power Supply Mode: Yes
Galvanic Isolation: Yes
Display/Read-Out: LCD Display
Fastening: With Supplied Mounting Bracket or 4X Screw for Wall Mounting or 4X Screw for Floor Installation
Dimensions, Hxwxd: 14.3” X 10.9” X 5.9” (362 X 277 X 150 mm)
Charge Characteristic: IUoUo, Automatic / 3-Step+ for Gel/Agm/Wet/Lithium Ion
Charge Voltage Bulk: 14.4V
Charge Voltage Absorption: 14.25V
Absorption Time: 4 Hours
Charge Voltage Float (Wet Batteries): 13.25V
Charge Voltage Float (Gel/Agm Batteries): 13.8V
Temperature Compensation: -30 MV/ °C, -17 MV/ °F
DC Voltage Compensation: Automatic
Power Consumption (DC Side): < 5 Ma
Full Load Consumption (230 V AC): 1700W
Current Control Function: Yes, Through Masterbus
Power Factor Control: ≥ 0.98
Temperature Range (Ambient Temp.): -25 °C to 60 °C, Derating < 0 °C and > 40
Cooling: Vario Fan
Protection Degree: IP23
Protections: Over Temperature, Overload, Short Circuit, High/Low Battery Voltage
Masterbus Compatible: Yes
Manufacturer: Mastervolt
Model Number: Chargemaster 12/100-3
Part Number: 44011000

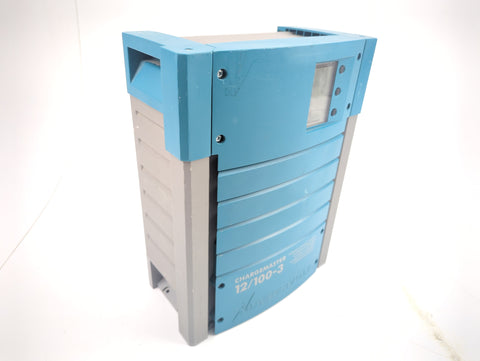

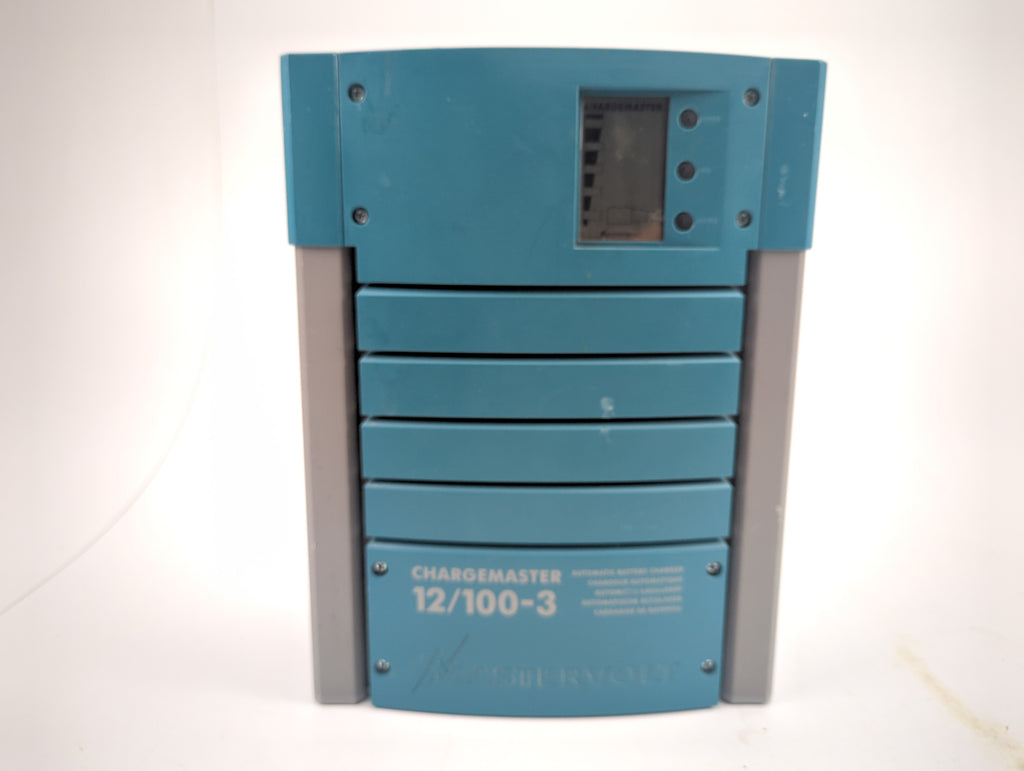

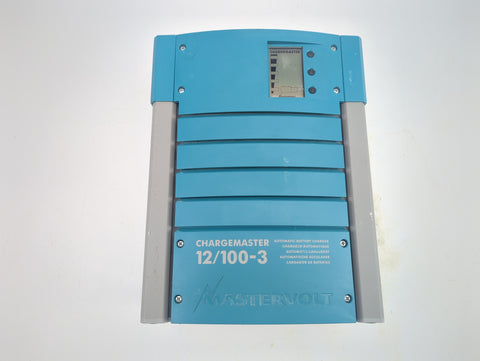

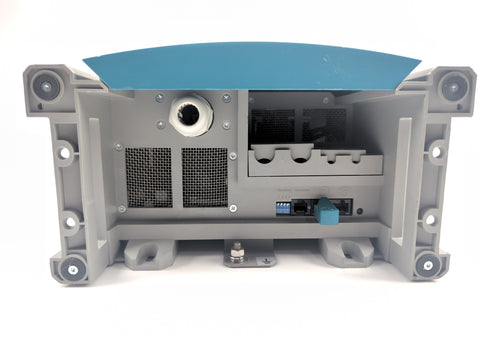

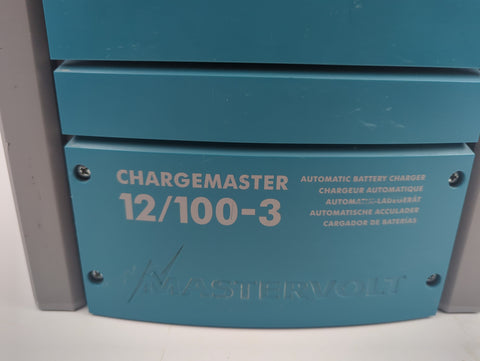

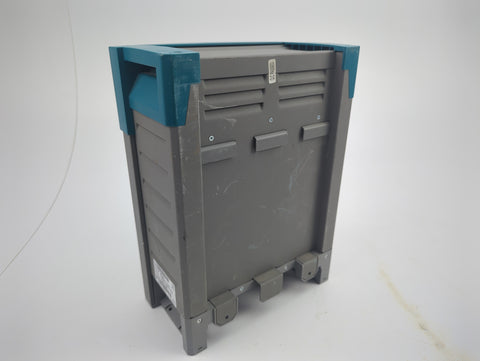

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
