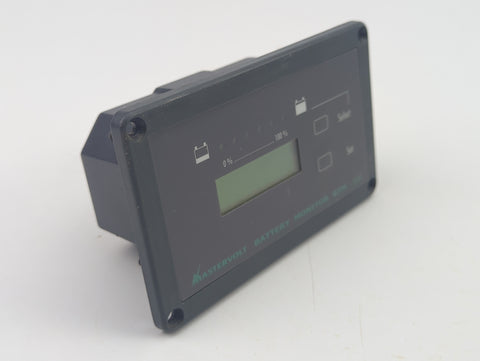

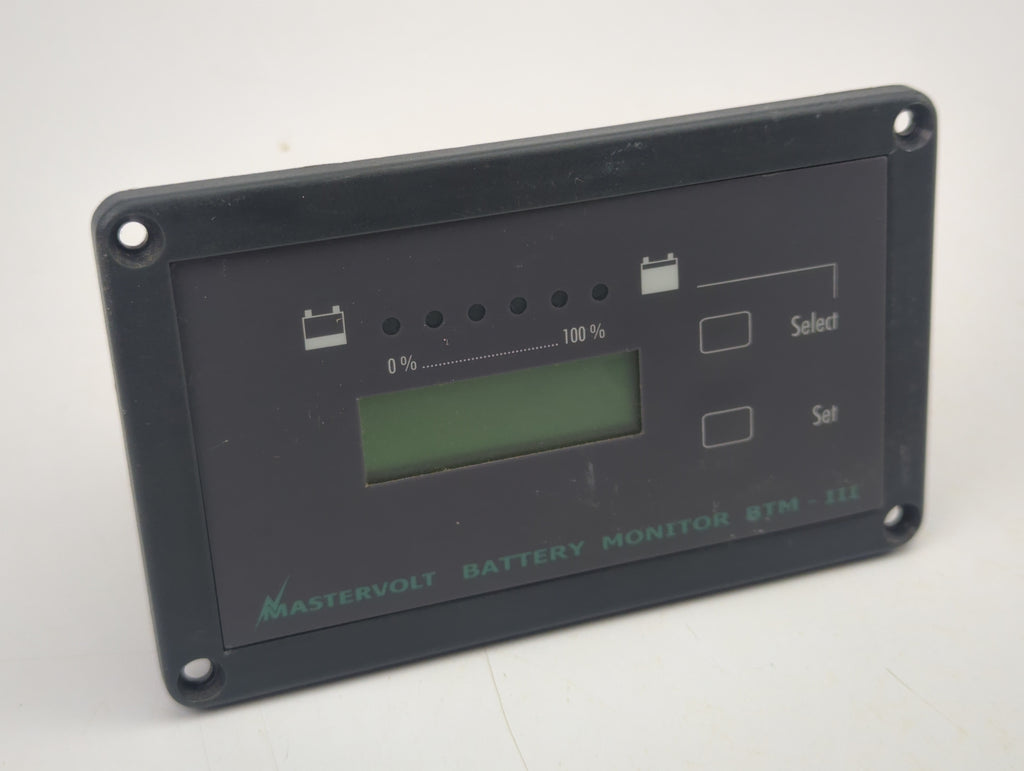

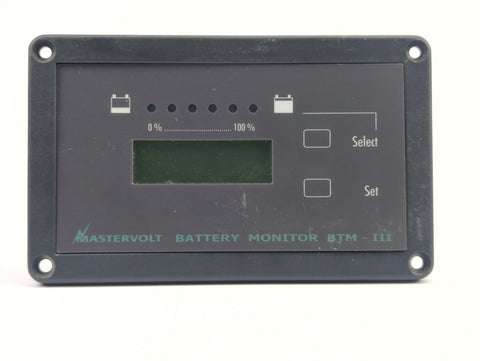

Mastervolt 70403163 Masterlink BTM-III Boat Marine Battery Monitoring Control Panel
A Mastervolt battery monitoring panel brings an end to nasty surprises, like a sudden shortage of
battery power. The Masterlink BTM-III battery monitor provides an accurate indication of the current, amperage, remaining time and remaining capacity of battery bank 1, and the current and estimated capacity of battery banks 2 and 3. The built-in microprocessor calculates the remaining capacity and stores historic data.
The Masterlink BTM-III includes ten languages: English, French, German, Spanish, Italian, Dutch, Norwegian, Danish, Swedish and Finnish.
Specifications:
General:
Number of Battery Outlets: 3 (Service, Starter & Bowthruster)
Display/Read-Out: Voltage, Current, Amp-Hours, Time Remaining, Battery Capacity in
%Voltage, Current, Amp-Hours, Time Remaining, Battery Capacity in %, Special Battery Status Events
Languages on Display: English, Dutch, French, Spanish, German, Danish, Finnish, Norwegian, Italian, Swedish
Built-in Depth: 40 MM, Incl. Cover and Cable: 55mm, 1.6”
Dimensions, Hxwxd: 2.6” X 4.7” X 1.6” (65 X 120 X 40 mm)
Dimensions Shunt, Hxwxd: 3.3” X 1.7” X 1.7” (84 X 44 X 44 mm)
Weight: 0.25 kg (0.6 lb)
Technical:
Max. Ah Capacity: 9999 Ah
Supply Voltage: 8-50 V
Voltage Range: 7-35 V
Current Consumption (Backlight Off): 28 Ma/12 V, 16 Ma/24 V
Current Consumption (Backlight On): 100 Ma/12 V, 50 Ma/24 V
Voltage Resolution: 0.01 V
Voltage Accuracy: ± 0.6 %
Shunt Specification: 500 A/50 MV (Service Set)
Current Measurement Range: 0-500 A (Optional 1000 A)
Current Accuracy: ± 0,8 %
Battery Alarm Contact: Yes, Open Collector
Remaining Time Indication: Yes
Historical Data: Yes
Masterbus Compatible: No
Connection Cable (6-Wire) Necessary: No
Modular Cable Necessary: No
Manufacturer: Mastervolt
Model Number: Masterlink BTM-III
Part Number: 70403163

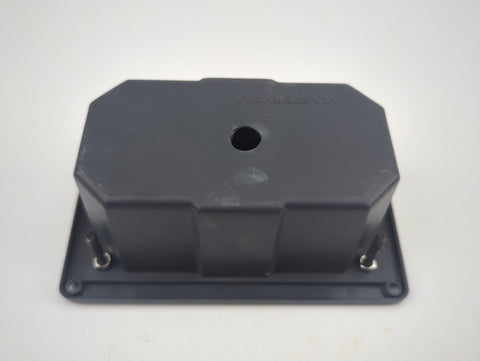

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
