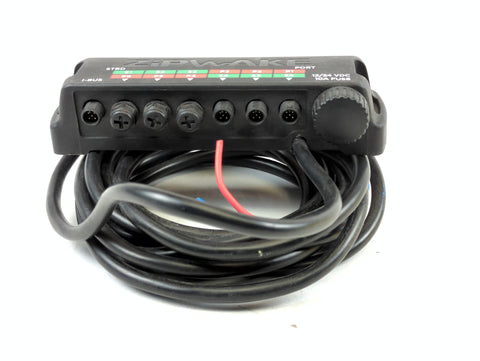

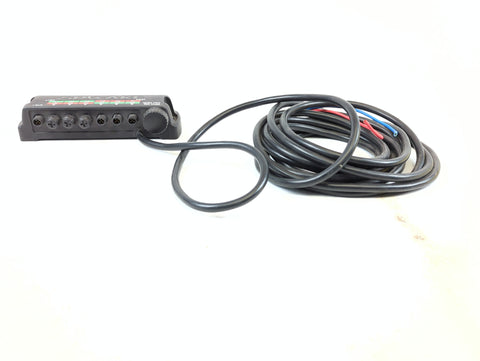

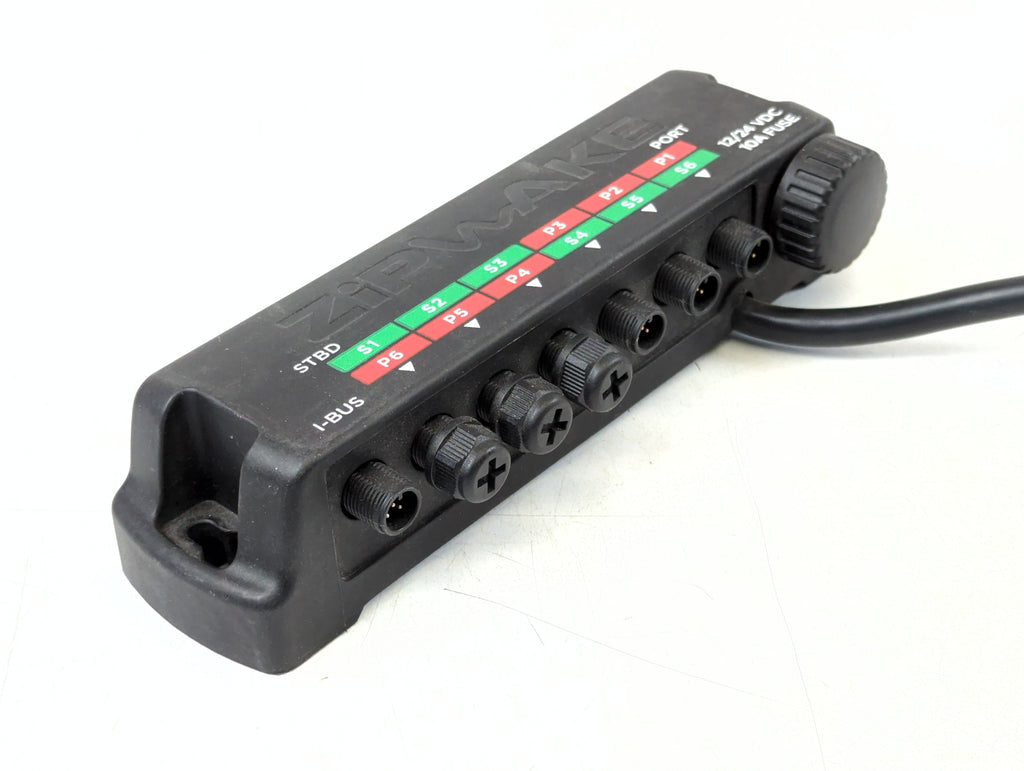

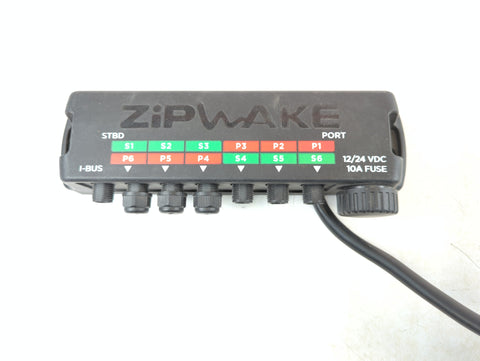

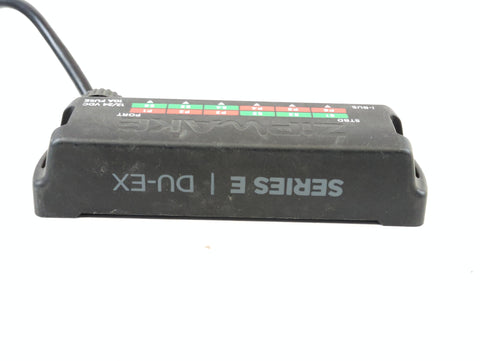

Zipwake DU-EX ZW2012034 Boat Marine Trim-Tab Distribution Expansion Unit with Power Cable

Zipwake DU-EX ZW2012034 Boat Marine Trim-Tab Distribution Expansion Unit with Power Cable
The unit is connected to the main control panel.
It is robust, waterproof, oil-resistant, and ignition-protected for mounting in an engine room.
The system can be expanded with the Distribution Expansion Unit (DU-EX) in order to accommodate up to six Series E interceptors or any mix with Series S interceptors engine room.
Supply Voltage: 12-32V DC
Power Consumption: 0.1W max
Protection Fuse: 10 A ATO
Power Cable Length: 6 m (19.7')
Power Cable Diameter: 9 mm (0.35"), 12 AWG
Operating Temperature: 20°C to +85°C (-4°F to +185°F)
Storage Temperature: 40°C to +90°C (-40°F to +194°F)
Waterproof Rating: IP67 with cable and/or protective caps mounted
Oil Resistance: Common engine fluids
Compliance: CE, FCC, SAE J1171
Manufacturer: Zipwake
Model Number: DU-EX
Part Number: ZW2012034
Also Known As: 2011144, 2011144, ZW2011144
Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
