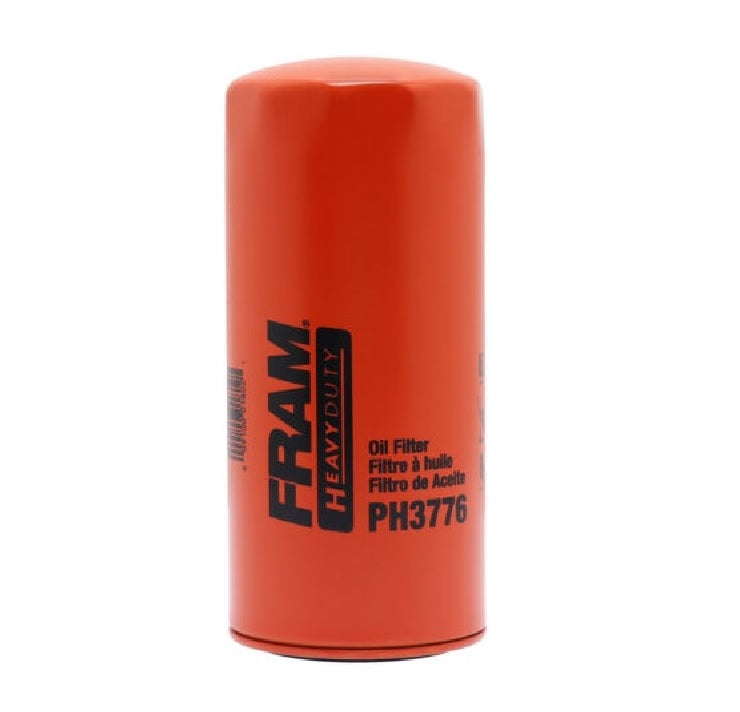

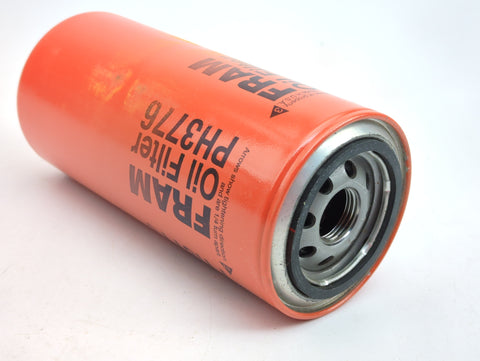

Fram PH3776 Marine GMC Topkick Engine Heavy Duty Full Flow Spin-On Lube Oil Filter
- Marine GMC Topkick Engine Heavy Duty Full Flow Spin-On Lube Oil Filter
- Proven protection for up to 10,000 miles
- Engineered for conventional motor oil
- 95 percent filtration efficiency
- Internally lubricated sealing gasket for easier filter removal
- Precision-molded nitrile anti-drainback valve for start-up engine protection
- Coil spring with glass fiber reinforced nylon poppet relief valve
- Sure Grip coating provides a non-slip finish for easier installation and removal
- Filter Type: Spin-On
- Anti-Drainback Valve: Yes
- Base Gasket Inside Diameter: 2.469"
- Base Gasket Outside Diameter: 2.813"
- Base Gasket Thickness: 0.188"
- By-Pass Valve Setting: 30
- Height: 8.125"
- Inside Diameter: 1-12 Thread
- Outside Diameter: 3.797"
- Turning Specification: 3/4
- For use with:
- Manufacturer: Fram
- Model Number: XFRM.PH3776, 07140716551, X71831 07825
- Part Number: PH3776
- Also Known As:
- AGCO 1174421
- Baldwin B236
- BAUDOUIN 040340W, 15040340W
- BIG A 92820
- BOMAG 5710634, 5710640
- Bosch 0451105067, P5067
- CARQUEST 85820
- CASE A44081, A44081
- COMPAIR CANADA C11158-1775, C11158/1775
- DEUTZ 01173430, 1160025, 1173430, 1174421, A15H4123
- Donaldson P553771, P557624
- FIAT 1153430, 1901919
- FIAT-ALLIS 1901919
- FIBA F530
- FIL FILTER ZP505B
- Fleetguard LF3625, LF3687, LF4054
- FLEETRITE LFR-84054
- Fram PH3776
- GOODWILL OG1032
- HASTINGS B236, LF315
- HENGST H18W01
- John Deere AZ22878
- KNECHT OC60
- LIEBHERR 5502096
- LINDE 0-116-0025, 000-983-0610, 016-000-000-200
- LUBER-FINER LFP2222
- Magneti Marelli 154020130190
- MAHLE OC60
- MANITOU 128680
- Mann W962, W962/14, W962/6
- MANN & HUMMEL W962, W962-14, W962-6
- NAPA 1820
- Purolator L40106
- STEYR 610-00-07-0005
- TIMBERJACK 413977
- TROJAN 4795837
- UNICO-FILTER LI9210
- Volvo 3831236, 6211489
- WILMINK-GROUP WG1217205, WG1379106
- Wix 51820
