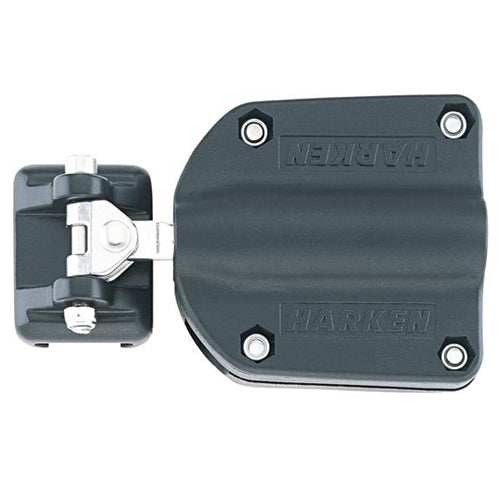

Harken 3803 System A Marine 22mm Flat Round Slider Battcar with 40mm Receptacle
- Marine 22mm Flat Round Slider Battcar with 40mm Receptacle
- Length: 1-3/4" (44mm)
- Width: 1-3/8" (35mm)

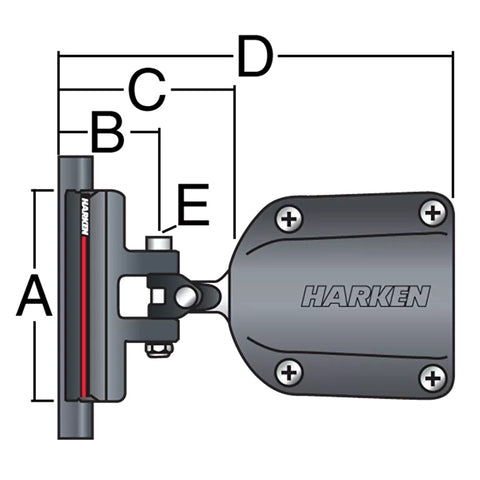

- A: 1-3/4" (44mm)
- B: 1-1/16" (27mm)
- C: 2-1/8" (54mm)
- D: 5-1/8" (130mm)
- E: 3/16" (5mm)
- Maximum Sail Area - Monohull: 56 m² (600 ft²)
- Maximum Sail Area - Multihull: 46 m² (500 ft²)
- Maximum Batten Width: 1-5/8" (41mm)
- Maximum Batten: 5/8" (16mm)
- Batten Shape: Flat/Round
- Manufacturer: Harken
- Model Number: System A
- Part Number: 3803
