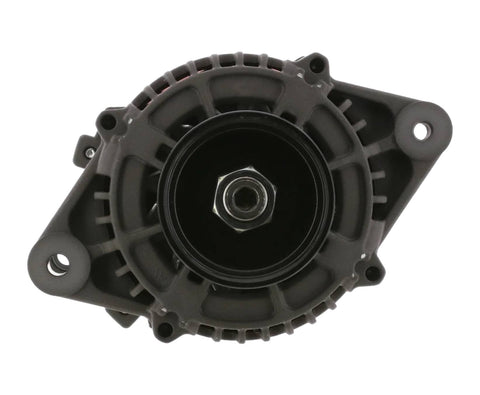

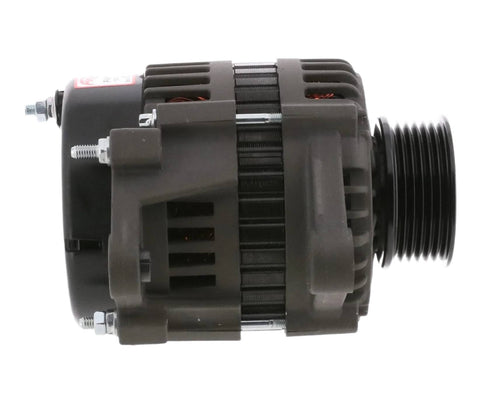

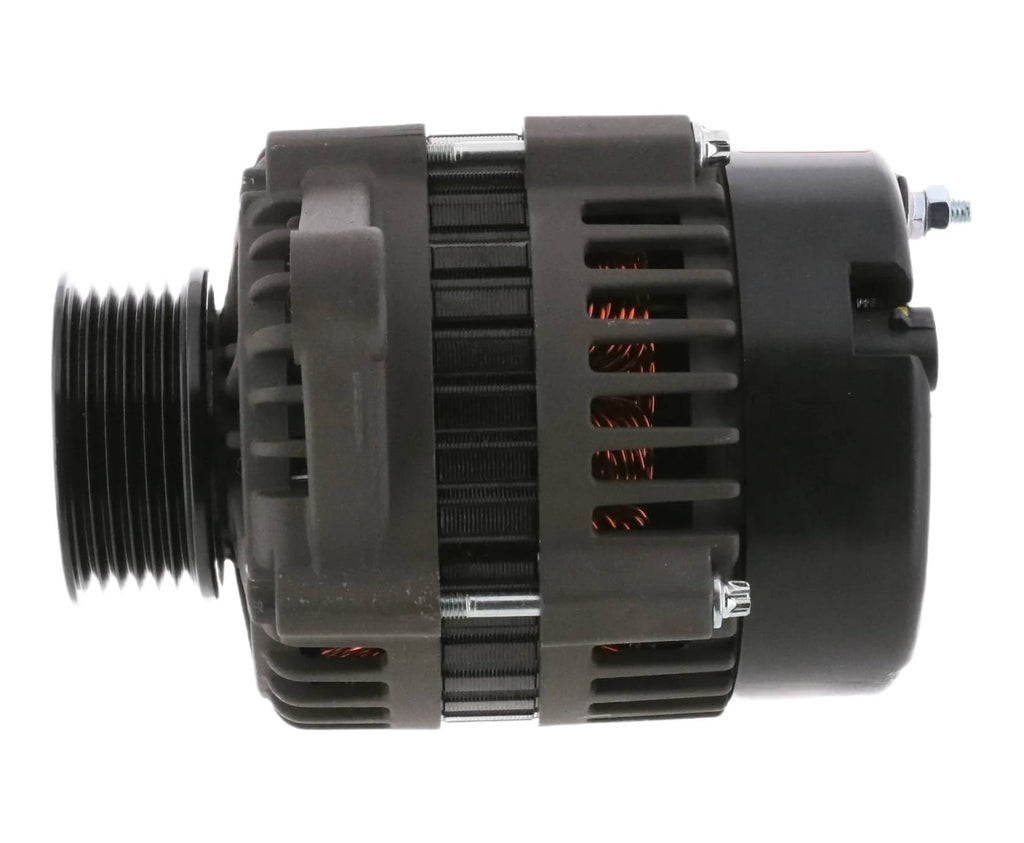

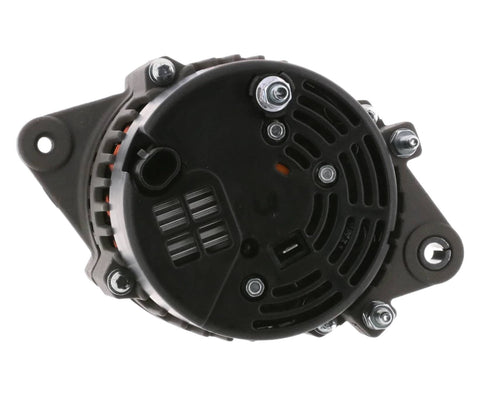

Mercury MerCruiser 862031T 862031T1 Marine Grade 12V 70 AMP Alternator Arco 20800
-
Marine Grade 12V 70 AMP Alternator
- Voltage: 12V
- Amp Rating: 70
- Mount Type: Hinge
- Pulley Type: Serpentine
- Diameter: 2.44" or 62mm
- For use with:
- 4.3L (GEN +) (2 BBL.) GM 262 V-6 1998 - 0L010044 THRU 0M614999
- 4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999
- 4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780
- 4.3L MPI ALPHA/BRAVO - 0M300000 THRU 0M614999
- 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 - 0L010044 THRU 0M614999
- 5.0L (2 BBL.) GM 305 V-8 1998-2001 - 0L015751 THRU 0M599999
- 5.0L EFI GM 305 V-8 1999-2001 - 0L331631 THRU 0M299999
- 5.0L MPI ALPHA/BRAVO - 0M300000 THRU 0M599999
- 5.7L (2 BBL.) GM 350 V-8 1998-2001 - 0L010037 THRU 0M599999
- 5.7L CARB MIE - 0L002003 THRU OM316999
- 5.7L COMPETITION SKI (GEN+) GM 350 V-8 1998 - 0L002005 THRU 0M316999
- 5.7L EFI GM 350 V-8 1999-2001 - 0L325977 THRU 0M299999
- 5.7L EFI MIE GM 350 V-8 1997 - 0K040300 THRU 0K261160
- 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 - 0L010003 THRU 0M024330
- 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 1998-2000 - 0L002006 THRU 0L674613
- 8.2L MIE MPI (GEN. VI) GM 502 V-8 - 0L086013 THRU 0L674200
- 350 MAG MPI ALPHA/BRAVO - 0L331599 THRU 0M299999
- 350 MAG MPI ALPHA/BRAVO - 0M300000 THRU 0M599999
- 350 MAG MPI HORIZON ALPHA/BRAVO - 0M300000 THRU 0M599999
- 350 MAG MPI HORIZON MIE - 0L302200 THRU 0M299999
- 350 MAG MPI HORIZON MIE - 0M310000 THRU 0M316999
- 350 MAG MPI MIE - 0L302200 THRU 0M299999
- 350 MAG MPI MIE - 0M310000 THRU 0M316999
- 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP - 0L002600 THRU 0M310009
- 385 Performance Tuned - 1G400000 & Up
- 454 MAG. MPI BRAVO (GEN VI) GM 454 V-8 - 0L085400 THRU 0M024999
- 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 - 0L086050 THRU 0L674000
- 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 - 0L085433 THRU 0M024999
- BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 - 0K040001 THRU 0M391599
- BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 - 0L670015 THRU 0M391599
- MX 6.2L MPI BRAVO - 0L680003 THRU 0M299999
- MX 6.2L MPI BRAVO - 0M300000 THRU 0M599999
- MX 6.2L MPI HORIZON BRAVO - 0M300000 THRU 0M599999
- MX 6.2L MPI HORIZON MIE - 0M310000 THRU 0M316999
- MX 6.2L MPI MIE - 0L302200 THRU 0M299999
- MX 6.2L MPI MIE - 0M310000 THRU 0M316999
- Manufacturer: Arco
- Model Number: Alternator
- Part Number: 20800
- Also Known As:
- Mercury MerCruiser 862031T, 862031T1
- Delco 19020601, 19020609
- Sierra 18-6293
- Protorque PH300-0034, PH300-0035
