Actisense NGT-1-ISO Boat Marine NMEA 0183 to NMEA2000 Conversion Gateway
Sale
Regular price
$169.95
1 available
Actisense NGW-1-ISO Boat Marine NMEA 0183 to NMEA2000 Conversion Gateway
The Actisense NGT-1 is an NMEA 2000 certified Gateway device, enabling software applications to both read and send NMEA 2000 messages in a protected environment. The electrical isolation and firewall capabilities of the NGT-1 place it in a unique position as a computer Interface to NMEA 2000.
Power Supply
Supply Voltage (NMEA 2000 Port): 9.5 to 35V DC
Supply Current (NMEA 2000 Port): 35mA @ 12V DC, Max 50mA
Load Equivalent Number (LEN): 1
ISO Port (NMEA 0183 port – ISO)
Compatibility: Fully RS232 & RS422 compatible
Galvanic Isolation: 2500V input to ground, 1500V output to ground using ISO-Drive
Speed/Baud Rate: 4800 to 115200 Baud
Output Voltage Drive: >= 2.1V (differential) into 100Ω
Output Current Drive: 20mA max.
Output Protection: Short circuit and ESD
Input Voltage Tolerance: -15V to +15V continuous -35V to +35V short term (< 1 second)
Input Protection: Current limited and overdrive protection to 40VDC

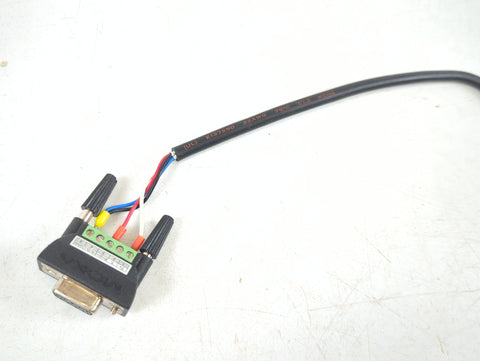

Connectivity: 5mm stripped and tinned wire
Cable Length:1.5m
NMEA 2000 Port
Compatibility: Fully NMEA 2000 certified
Galvanic Isolation: Refer to ‘ISO port’ or ‘USB port’
Speed / Baud Rate: 250kbps

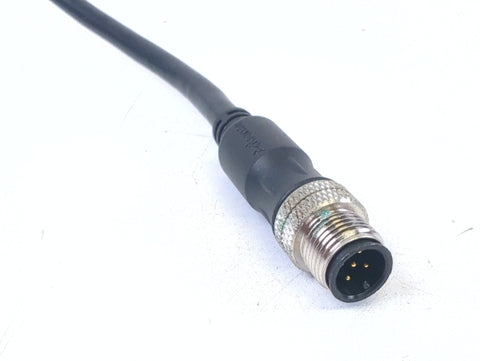

Connectivity: M12 Male (A polarised) connector moulded on cable
USB version is fully isolated to prevent dangerous ground loops
ISO version has OPTO-isolated input and ISO-Drive output for safely interfacing with RS232 or RS422
Up to 230,400 baud data transfer rate
Integrated 1.5m drop cable
Diagnostic receive LEDs
Manufacturer: Actisense
Model Number: NGT-1
Part Number: NGT-1-ISO

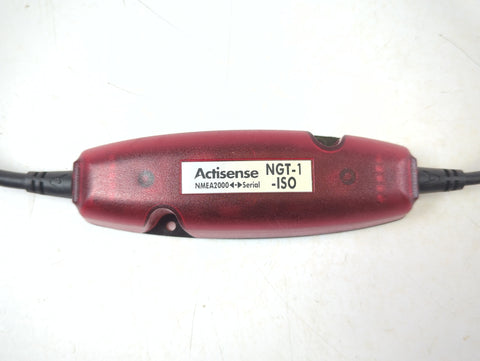

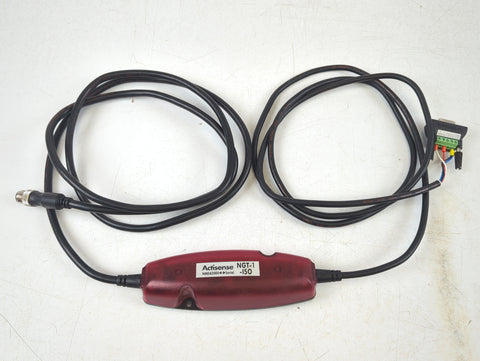

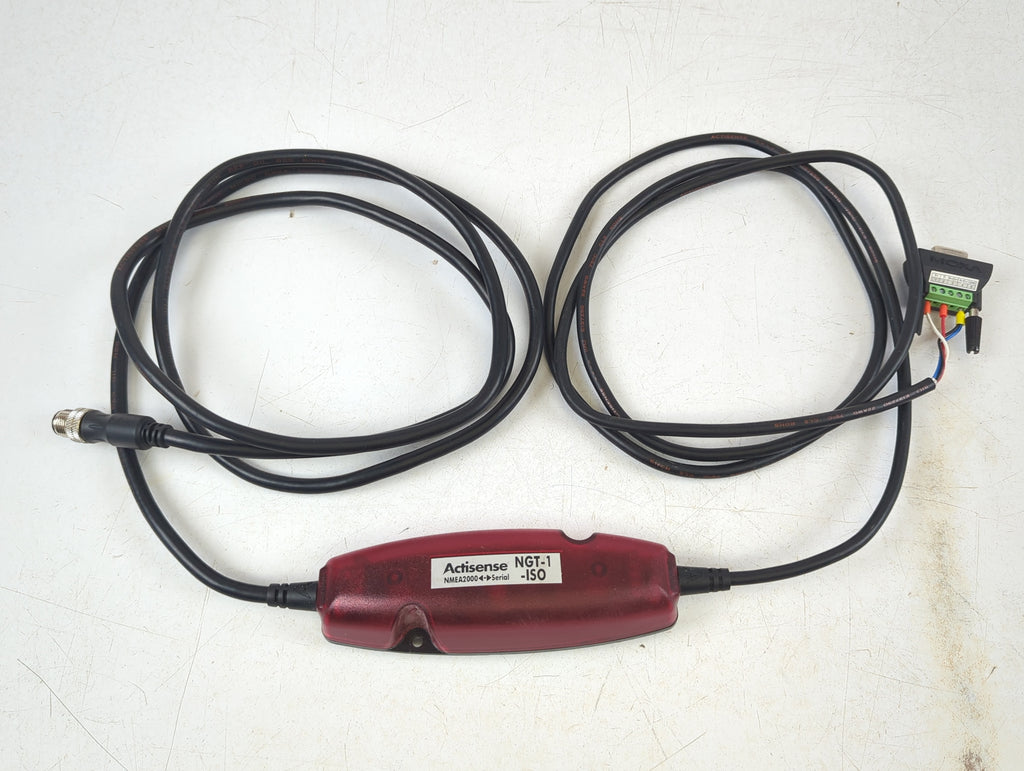

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was used briefly to test a system. Like New Condition. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
