  • Sale
  • $349.95
  • 1 available
  • Icom AH-2 HF Marine SSB Ham Radio Single Sideband Telephone Antenna Tuner
  • Frequency Range: 10-80 m / 3.5~30 MHz (when used with AH-2B), 10-160m 1.8~30MHz (when antenna length is 12 meters or longer)
  • Maximum Input Power: 120W
  • Input Impedance: 50 Ohms
  • Tuning Power: 10W (5-15W)
  • Tuning Time: 2-4 seconds average (20 seconds maximum)
  • Rated Voltage: 13.8V DC ±15% (negative ground)
  • Rated Current: 2A or less
  • Usable Temperature Range: -10 to +60 °C
  • VSWR: 1.5:1 or less
  • Dimensions:
    • Control Unit: 53 X 63 X 205 mm (2.09” X 2.48” X 8.07")
    • Tuner Unit: 230 X 85 X 380 mm (9.06” X 3.35” X 14.96")
  • For use with: IC-720A, IC-735, IC-740, IC-745, IC-751 Radios
  • Manufacturer: Icom
  • Model Number: Antenna Tuner
  • Part Number: AH-2
  • Also Known As: IC-AH2

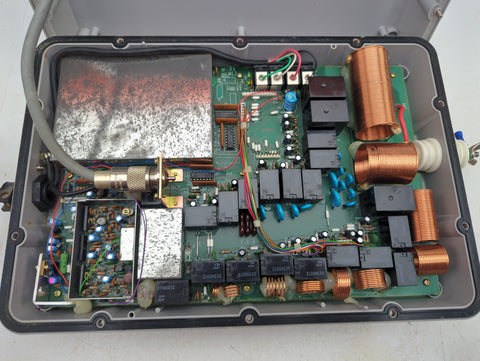

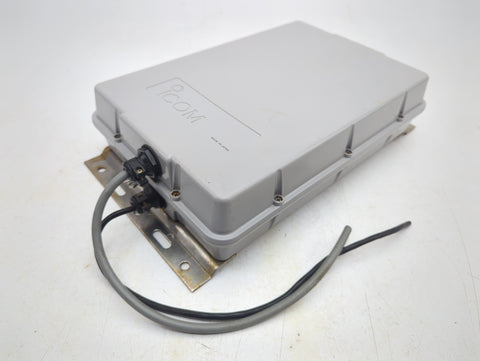

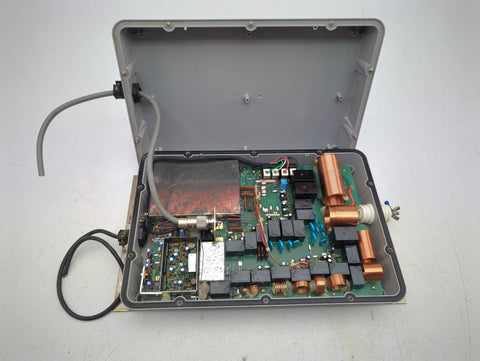

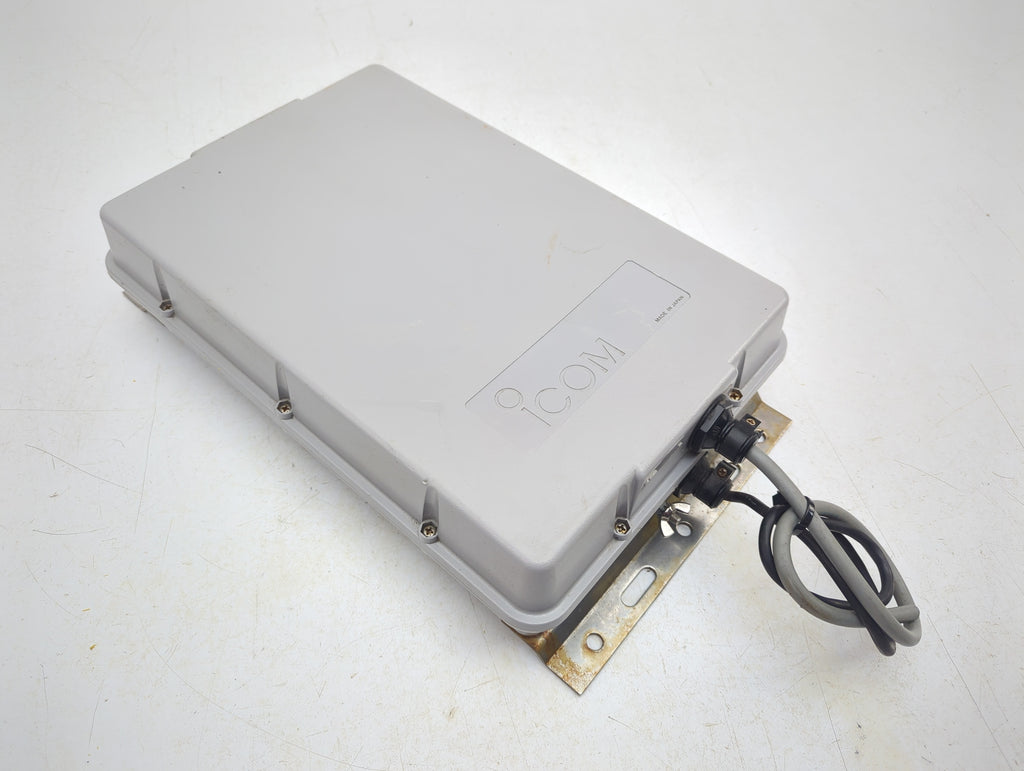

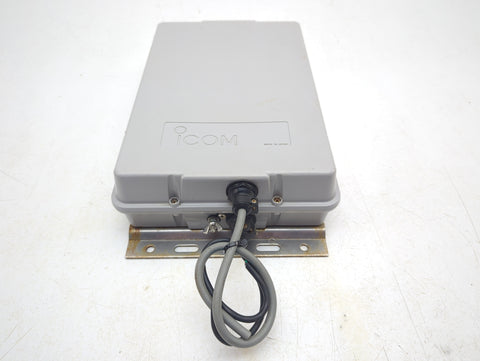

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
