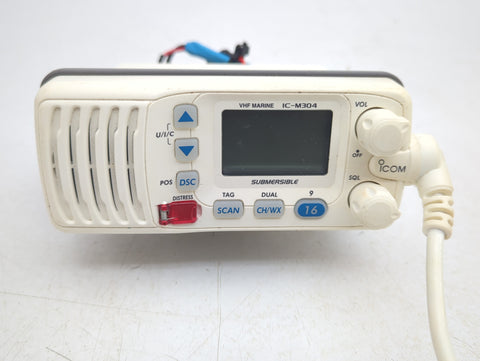

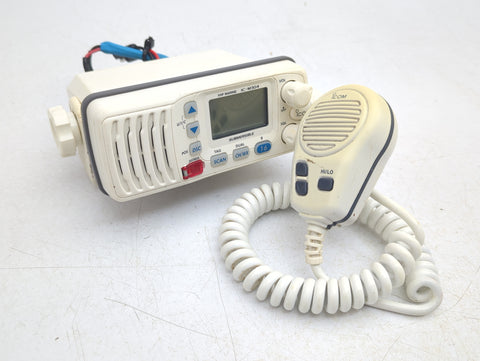

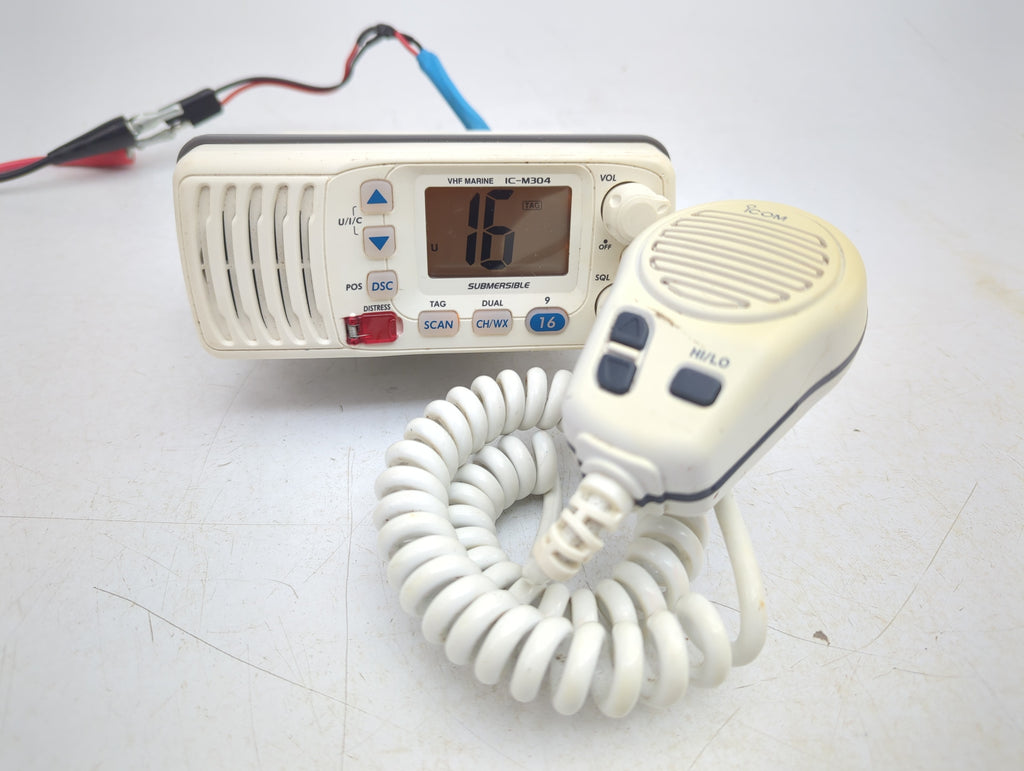

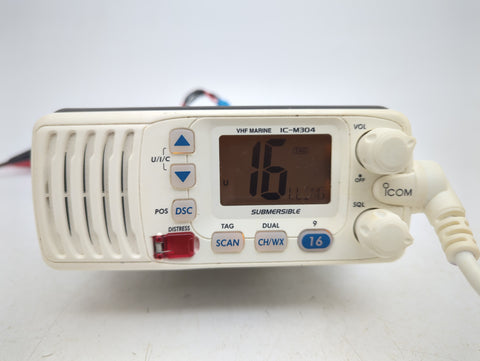

- Icom IC-M304 Boat Marine DCS VHF Radio Transceiver and HM-164SW Microphone
- Color: White
- Submersible: 1m 30 min.
- Frequency Error: ±10ppm
- Power Supply: (12V) 13.8V DC ±15%
- Max. Frequency Deviation: ±5 kHz
- Antenna Impedance: 50Ω (SO-239)
- Adj. Channel Power: More than 70dB
- Residual Modulation: More than 40dB
- Type of Emission: 16K0G3E, 16K0G2B
- Output power: 25W or 1W (at 13.8V DC)
- Spurious Emissions: Less than –70dBc (at 25W)
- Usable Channels: USA, CAN, INT, WX Channels
- Audio Harmonic Distortion: Less than 10% (at 60% dev.)
- Dimensions: 6-1/32” X 25/8” X 5-1/4” (153 X 67 X 133mm)
- Current Drain: 5.5A (at 25W Output), 1.5A (at AF Maximum)
- Modulation System: Variable Reactance Frequency Modulation
- Operating Temperature Range: –20°C to +60°C; –4°F to +140°F
- Frequency Range: Tx - 156.025–157.425 MHz, Rx - 156.050–163.275 MHz
- Includes:

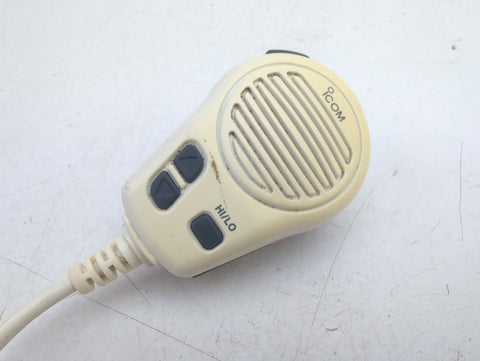

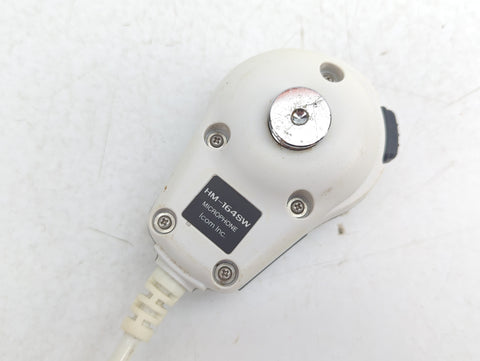

- Hand Microphone - HM-164SW
- Manufacturer: Icom
- Model Number: Transceiver
- Part Number: IC-M304
- Also Known As: ICM304
- Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
