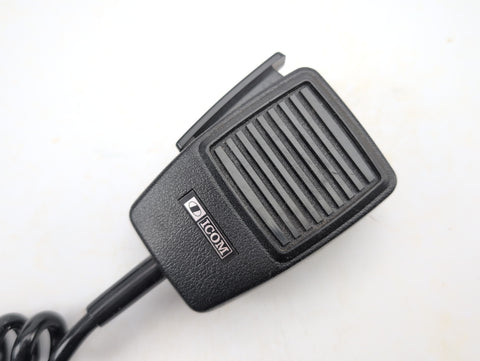

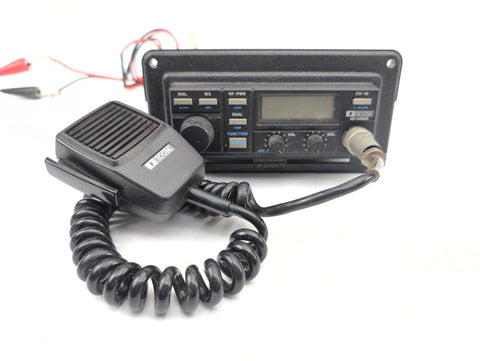

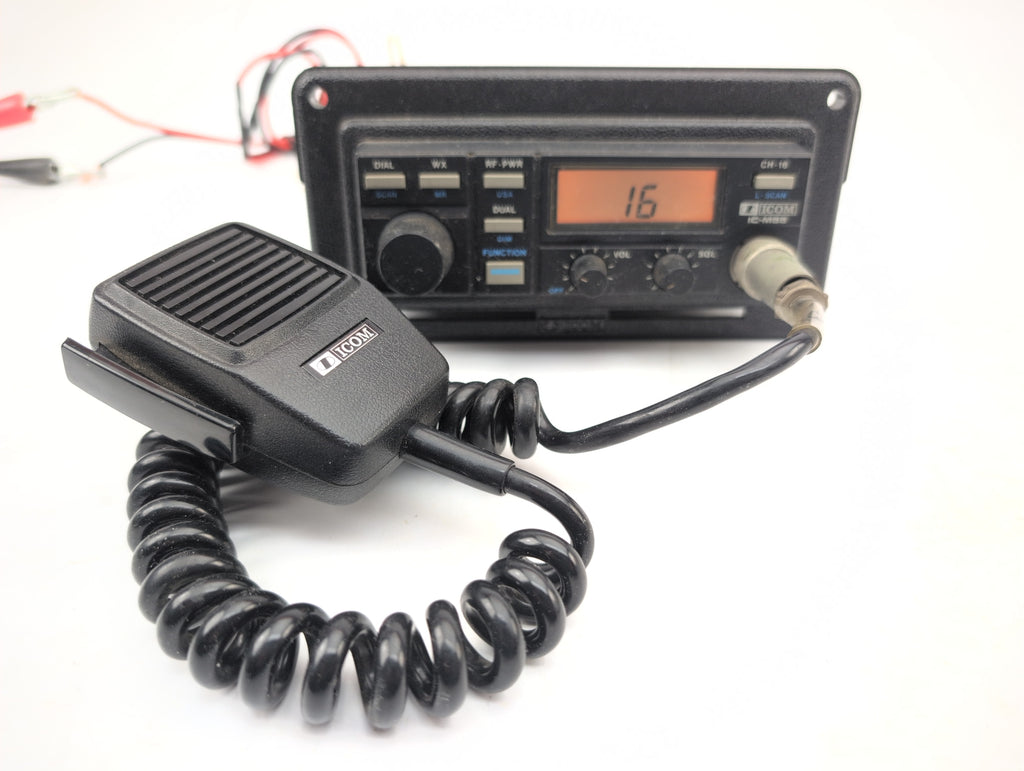

Icom IC-M55 Boat Marine Compact VHF Radio Transceiver with Microphone
Icom IC-M55 Boat Marine Compact VHF Radio Transceiver with Microphone
Icom IC-M55 Boat Marine Compact VHF Radio Transceiver with Microphone General Specifications:
Type: Marine VHF Transceiver
Frequency Range:
TX: 156.000-157.425 MHz
RX: 156.000-163.425 MHz
Tuning Steps: Channelized
Frequency Stability: 0.001% @ -10 to +60°C (14 to 140°F)
Mode: FM
Channels/Memory Management:
All US and international channels
10 NOAA WX channels (US version only)
10 user memories
RAM storage with lithium battery backup
Duplex Shift/Offset: Automatic according to bandplan
Power Supply: 13.8 VDC (2-pin connector on pigtail)
Current Drain/Power Consumption:
RX: Max 650 mA
TX: Max 5.5 A
Antenna Impedance/Connector: 50 ohm / SO-239 (On pigtail)
Dimensions: 5.51” X 1.97” X 6.42” (140 X 50 X 163 mm)
Weight: 1.3 kg (2.86 lb)
Other Features: Dual watch. Channel 16 button. Dimmer. Scanning.
Receiver Section:
Receiver System: Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
Sensitivity: 0.3 uV (12 dB SINAD)
Squelch Sensitivity:
0.4 uV (Threshold)
0.6 uV (Tight)
Image Rejection:
AF Output Power/Speaker: 3 W at 10% distortion / 4 ohm
External Speaker Connector: TS "Minijack" (3.5 mm)
Transmitter Section:
RF Output Power:
Max FM Deviation (Factory set): ±5 KHz
Spurious Emissions: Better than -70 dBc

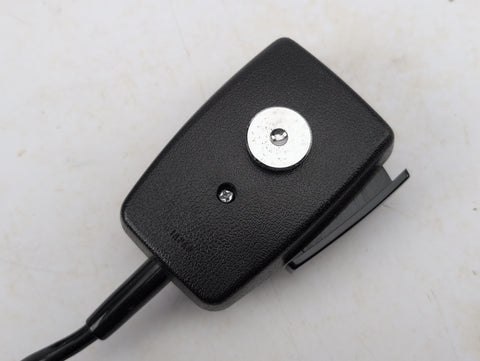

Microphone Impedance/Connector: 600 ohm / 7-pin
Manufacturer: Icom
Model Number: VHF Radio FM Transceiver
Part Number: IC-M55

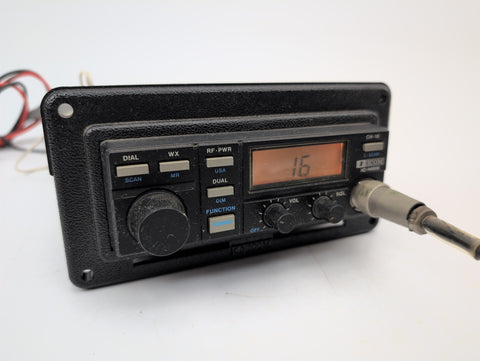

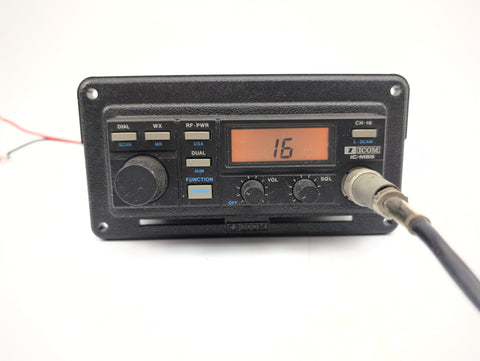

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
