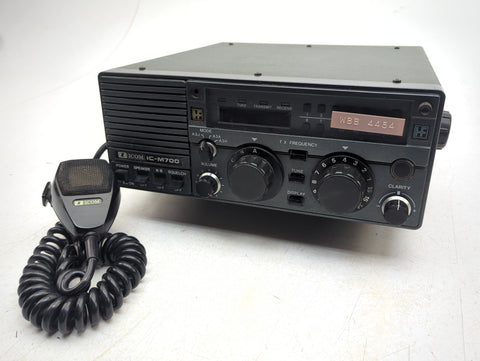

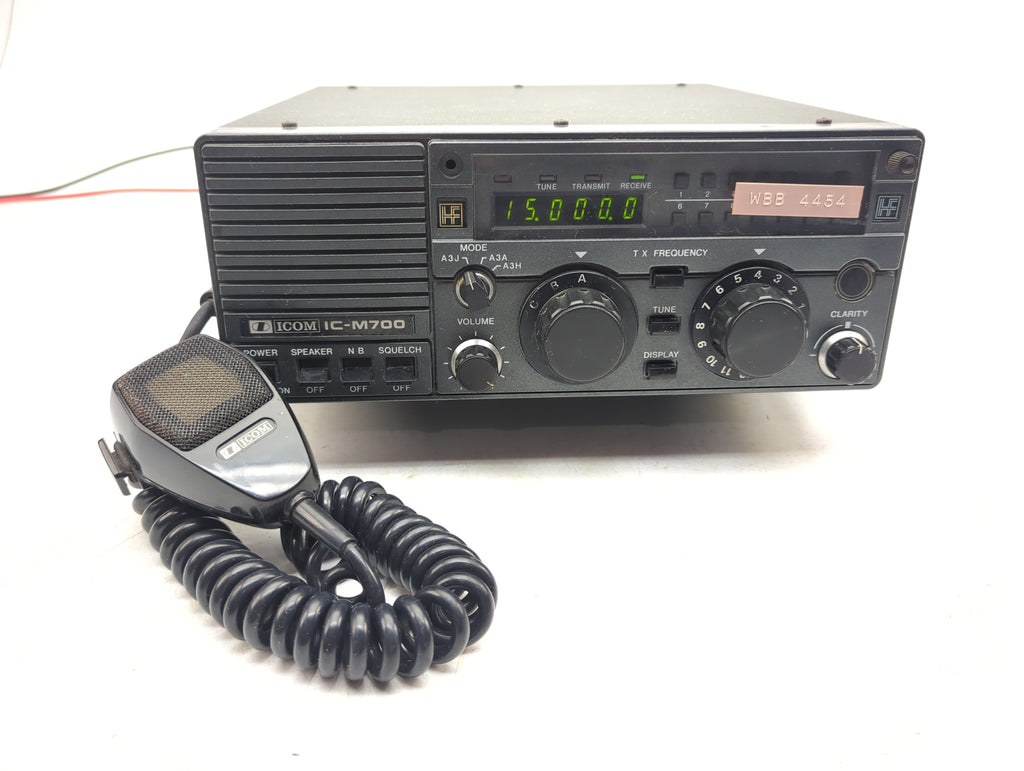

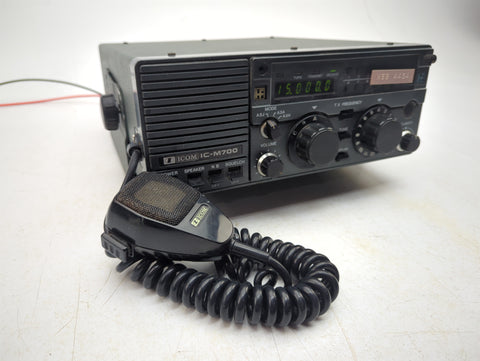

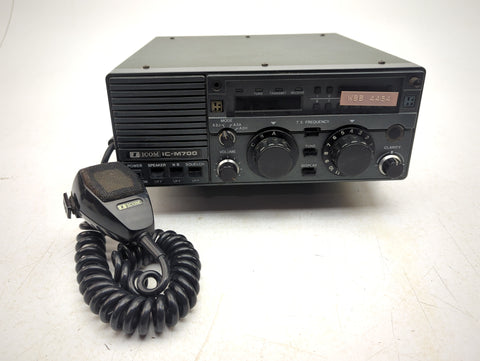

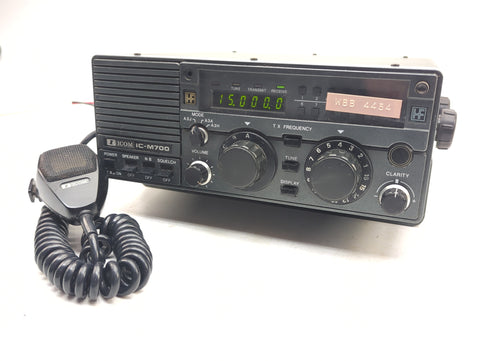

Icom IC-M700 Vintage HF Marine SSB Ham Single Sideband Radiotelephone Transceiver Radio

Vintage HF Marine SSB Ham Single Sideband Radiotelephone Transceiver Radio
Frequency Coverage: Transmit 2.0000~2.9999 MHz, 4.0000~4.9999 MHz, 6.0000~6.9999
MHz, 8.0000~8.9999 MHz, 12.0000~13.9999 MHz, 16.0000~17.9999 MHz,
22.0000~22.9999 MHz; Receive 1.6000~23.9999 MHz
Modes: A3J (J3E; USB, LSB), A3A (R3E; USB), A3H (H3E; USB)
Number of Channels: 48
Antenna Impedance: 50 - unbalanced
Power Supply Requirement: 13.6 V DC +/-15% (negative ground)
Current Drain (at 13.6 V DC): Transmit, Average voice 12 A, Two tone 19A;
Receive, Squelched 1.2 A, Max. audio output power 1.6 A
Usable Temperature Range: -30°C~ to +60°C
Frequency Stability: +/-20 Hz (-30°C~ to +60°C)
Dimensions: 287(W) x 112(H) x 356(D) mm; 11.3(W) x 4.4(H) x 14.0(D) in (projections not
included)
Includes Microphone
NO POWER CABLE INCLUDED
Manufacture: Icom
Part Number: IC-M700
Also Known As: ICM700
Condition: In Stock, Ready to Ship! This vintage unit is in fair physical condition and was removed from a boat that received a total electronics refit. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
