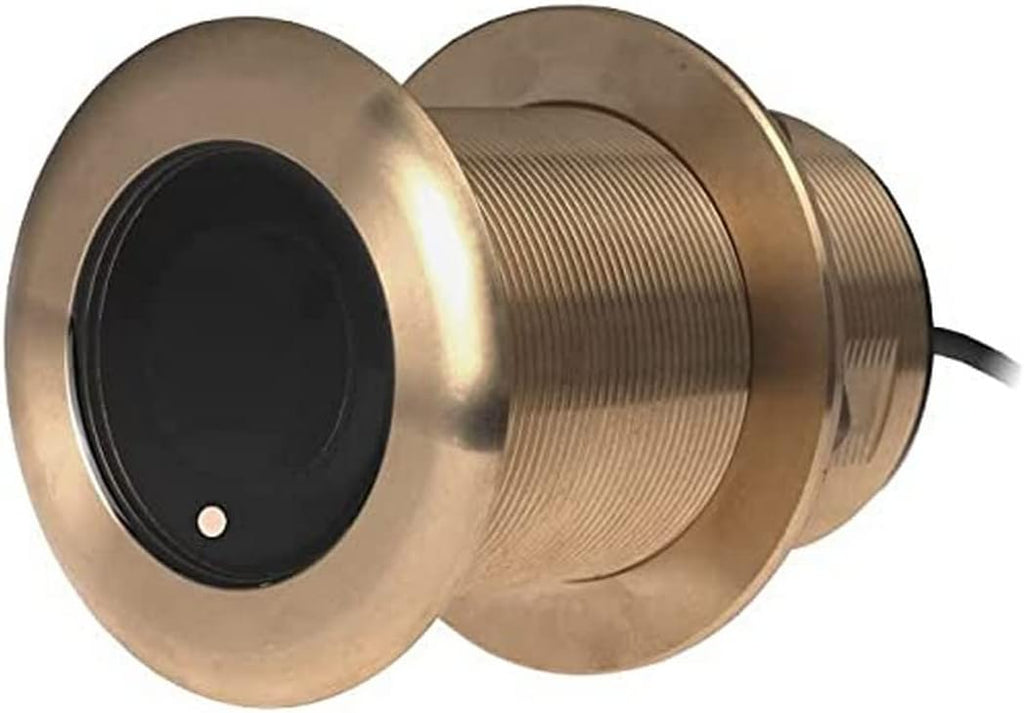

Raymarine A80034 B75M Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer
Raymarine A80034 B75M Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer
Raymarine A80034 B75M Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer
Raymarine A80034 B75M Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer

Raymarine A80034 B75M Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer

  • Sale
  • $899.95
  • 1 available
  • Bronze Low-Profile 12° Tilted Element Thru-Hull CHIRP Transducer

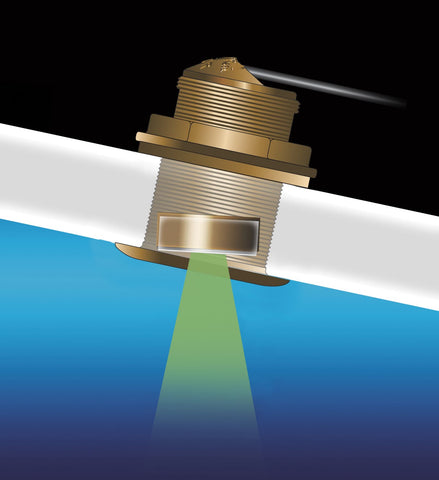

  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Hull deadrise = 8º to 15º
  • Power: 600W
  • Frequency: 80-130 kHz
  • Beamwidth: Medium: 24-16 degree
  • Depth and Temperature
  • Compatible Raymarine Sounders: CP450C, CP470, CP570
  • Manufacturer: Raymarine
  • Model Number: B75M
  • Part Number: A80034
  • Also Known As:
    • Airmar 41-552-1-01
    • B75M-12
