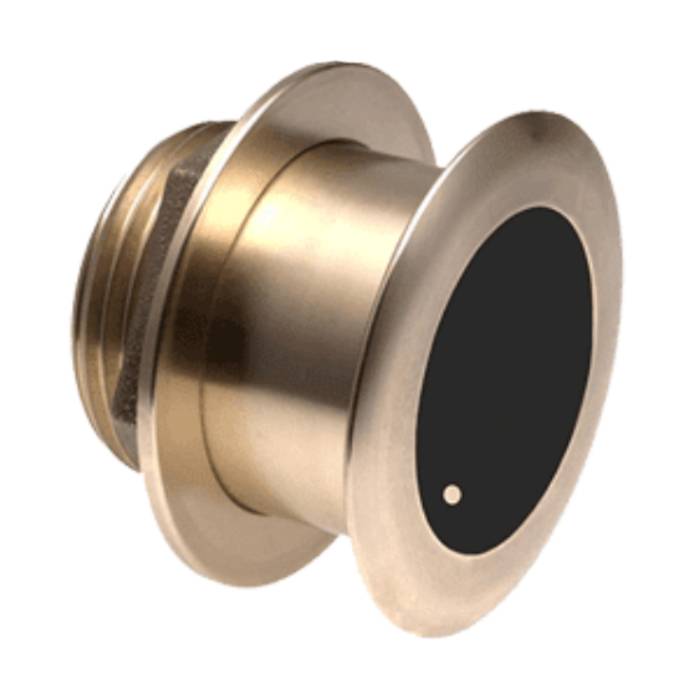

Raymarine A80319 Airmar B175HW 41-697-1-01 Bronze 1Kw Depth and Temperature 0° Tilted Thru-Hull Transducer

Raymarine A80319 Airmar B175HW 41-697-1-01 Bronze 1Kw Depth and Temperature 0° Tilted Thru-Hull Transducer
Fixed 0° tilted version for 0 to 7° hull deadrise angles
Cable-Length: 9m (30')
Frequency Band: High Wide
Functions: Depth, Temperature
High Frequency: 150-250 kHz
High-Wide Beamwidth: 25°
Hole Size: 95 mm (3-3/4")
Hull Material: Fiberglass or wood
Material: Bronze
Max Depth: 150 m (500')
Power Rating: 1 kW
Single or Dual Frequency: CHIRP-Ready Single-Band
Usable Shaft Length: 71 mm (2.80")
Manufacturer: Raymarine, Airmar
Model Number: A80319, B175HW
Part Number: 41-697-1-01
Also Known As: 41697101
