SeaTalk NG: 1 X SeaTalk NG connection, Adaptable to NMEA2000 Devicenet.
Wireless Data:
WiFi: 802.11 b/g
Bluetooth: AVCRP 2.1+ EDR power class 1.5
Internal GPS Specifications:
Included: Yes
Satellite Based Aiding System (SBAS): WAAS + EGNOS
Operating Frequency: 1575.43 MHz
Signal Acquisition: Automatic
Almanac Update: Automatic
Geodetic Datum: WGS-84, Alternatives selectable through e7 interface
Update Rate:1 second
Antenna: Patch
Accuracy: Without SBAS
Accuracy: With SBAS (WAAS /EGNOS)
Video Input:
Number of Inputs: 1
Signal Type: Composite
Format: PAL, NTSC or SECAM
Connector Type: BNC
Electronic Charts:
Chart Card Slots: 2
Chart Card Format: micro-SD
Compatible Charts: Navionics Ready-to-Navigate, Silver, Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps
Conformance:
NMEA: NMEA2000 certification
Wireless: WiFi Alliance certification
Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2
Power Specifications:
Nominal Supply Voltage: 12/24V DC
Operating Voltage Range: 10.8V to 31.2V DC
Fuse/Breakers: 7A. Standard 20mm glass fuse.
Consumption: 16W, At full display brightness
LEN: 1
Environmental Specifications:
Operating Temperature: -25 ºC to +55 ºC (-13 ºF to 131 ºF)
Storage Temperature: -30 ºC to +70 ºC (-22 ºF to 158 ºF)
Manufacturer: Raymarine
Model Number: C125
Part Number: E70013

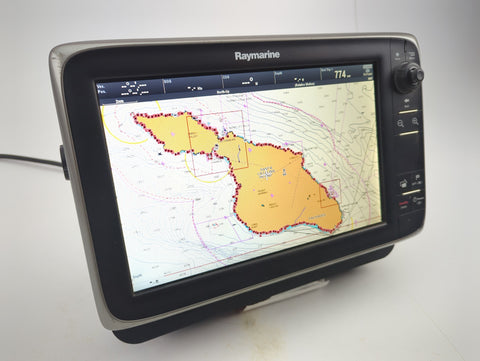

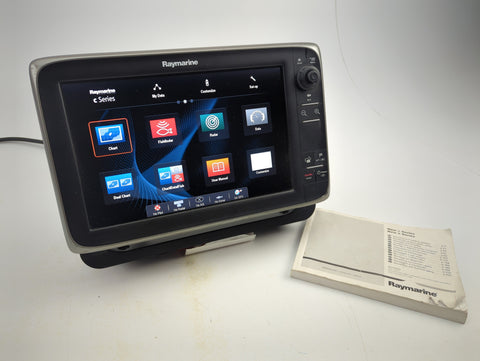

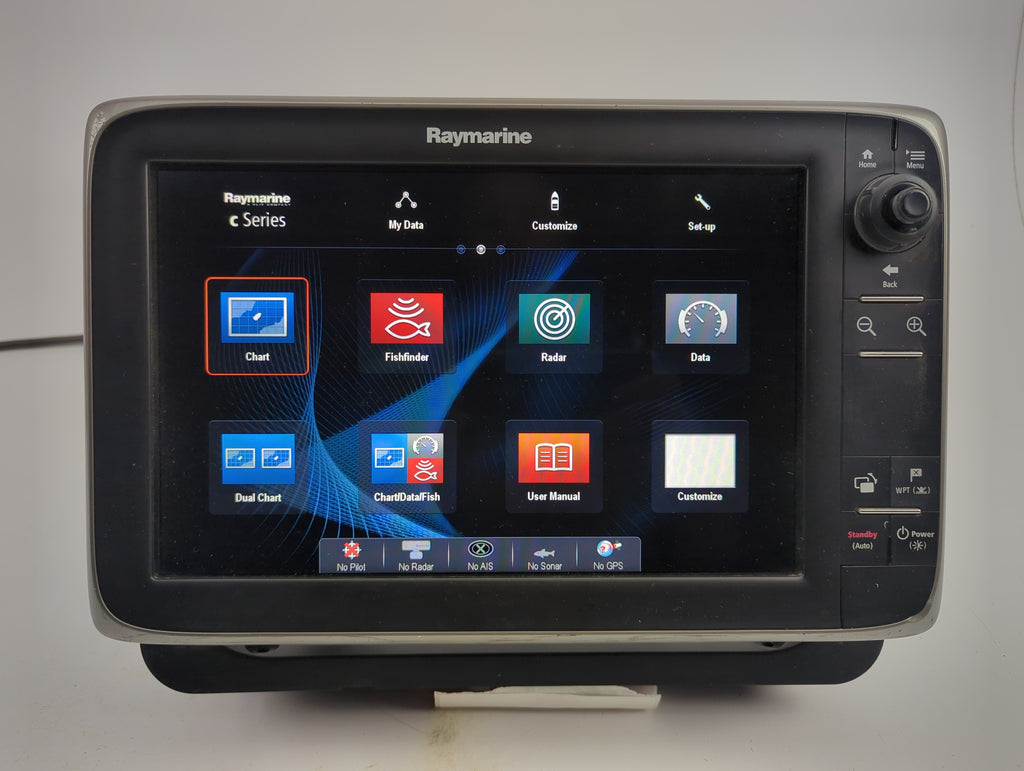

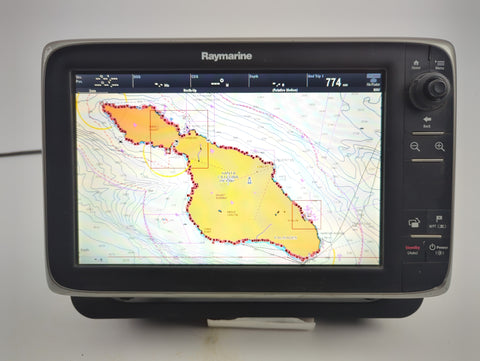

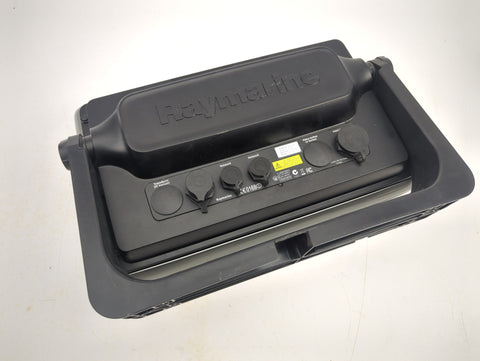

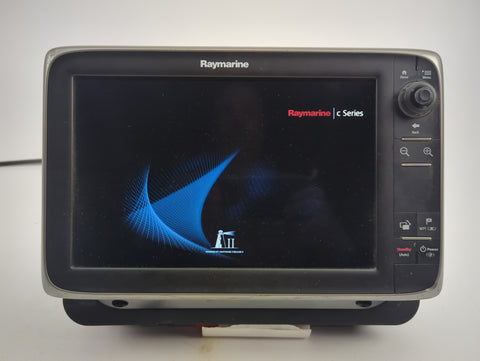

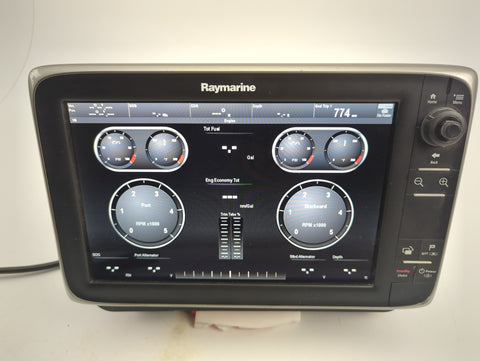

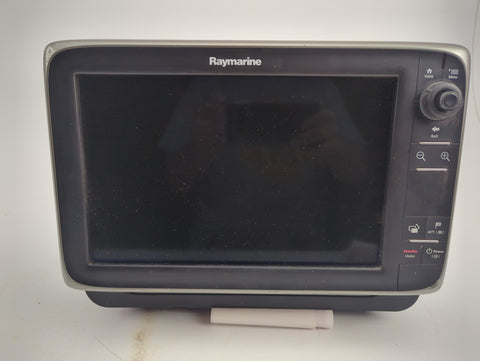

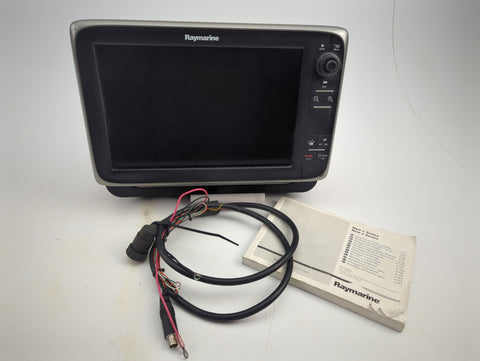

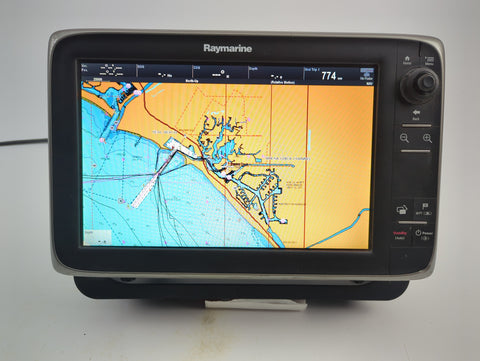

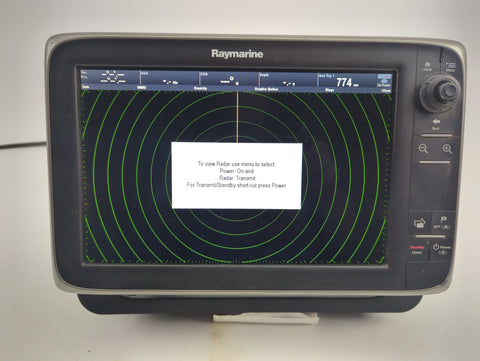

Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
