Raymarine T70434 Ray90 Ray91 Marine VHF Radio Wireless Station Pack with Active Speaker and Handset

Raymarine T70434 Ray90 Ray91 Marine VHF Radio Wireless Station Pack with Active Speaker and Handset

  • Sale
  • $479.95
  • 1 available

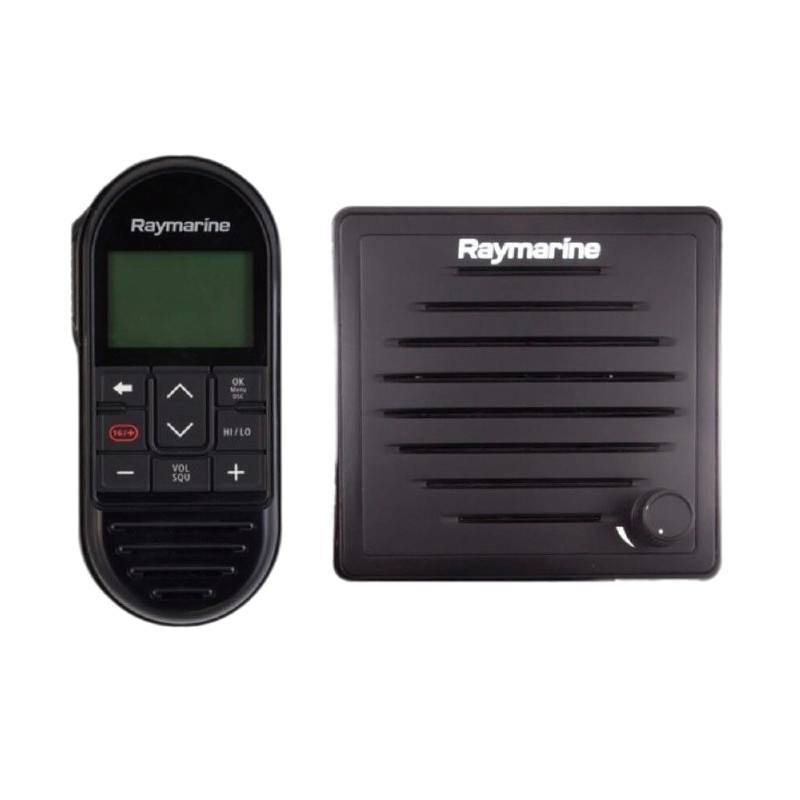

  • Wireless Station Pack with Active Speaker and Handset for Ray90 Ray91 Marine VHF Radios
  • Power Specifications:
    • Nominal Supply Voltage: 12VDC
    • Operating Voltage Range: 10.2 VDC to 16VDC
    • Fuse Requirements:
      • Inline Fuse: 10A
      • Thermal Breaker: 7A
    • Current Consumption:
      • Standby: 600 mA
      • Receive: 2A
    • Loud Hailer: 3A (8 ohm) / 6A (4 ohm)
    • Less than 6A at high power (13.6V)
    • LEN: 1
  • Environmental Specifications:
    • Operating Temperature: -25 to +55 ºC (-13 to 131 ºF)
    • Storage Temperature: -25 to +70 ºC (-13 to 158 ºF)
    • Relative Humidity: 95%
    • Water Proofing: IPX6 and IPX7
  • Connections:
    • Wired Handsets: x 2 via HS1 and HS2 Connector
    • Wireless Hub: x 1 via Hub Connector
    • GNSS (GPS) Antenna: x 1 via GPS Connector (TNC)
    • VHF Antenna/Splitter: x 1 via VHF Connector (50 Ohm SO239)
    • NMEA 0183 Input: x 1 via bare ended wires on data cable
    • NMEA 0183 Output: x 1 via bare ended wires on data cable
    • NMEA 2000/SeaTalkng: x 1 via N2K (DeviceNet) Connector
    • Loud Hailer: x 1 via bare ended wires on data cable
  • VHF Transmitter Specifications:
    • Channels: All available US, International and Canadian VHF marine bands
    • Frequency Range: 156.025 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
    • Frequency Stability: +/- 1.5 ppm
    • Channel Spacing: 25 kHz
    • Power Output:
      • Low Power Setting: 1W
      • High Power Setting: 25W
    • Spurious Emissions: Better than -36 dBm at 25W (Less than 0.25 μW)
    • Maximum Deviation: +/- 5 kHz
    • Antenna Impedance: 50 Ohms (Typical)
  • Receiver Specifications:
    • Receiver Type: Double Conversion Superheterodyne
    • Channels: All available US, International and Canadian VHF marine bands
    • Receiver: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
    • Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
    • Squelch Sensitivity: Less than -2 dBμ EMF
    • Hum and Noise: Better than -40 dB
    • Audio Distortion: Less than 10%
  • Receiver Sensitivity:
    • Distance: 119dBm (0.25uV) @ 12dB SINAD (Typical)
    • Local: 110dBm (0.7uV) @ 12dB SINAD (Typical)
    • Adjacent Channel Selectivity: More than 70 dB
    • Spurious Response Rejection: More than 70 dB
    • Intermodulation Rejection: More than 68 dB
  • GNSS (GPS) Specifications:
    • Channel: 72
    • Cold Start: 29 seconds
    • Receiver IC Sensitivity:
    • Tracking and Navigation: -167 dBm
    • Reacquisition: -160 dBm
    • Cold Start: -146 dBm
    • Hot Start: -156 dBm
    • GNSS Compatibility: GPS, GLONASS, Beidou
    • SBAS Compatibility: QZSS, WAAS, EGNOS, MSAS, GAGAN
    • Special Features: Active Jamming and Interference Reduction
    • Operating Frequency: GPS L1 C/A, GLONASS L10F, Beidou B1
    • Signal Acquisition: Automatic
    • Almanac Update: Automatic
    • Geodetic Datum: WGS-84 (alternatives available through Raymarine MFD)
    • Refresh Rate: 20 Hz (20 times per second Concurrent GNSS)
    • Antenna: An external passive antenna is required
    • Horizontal Position Accuracy:
      • Autonomous: 2.5m (8.2 ft)
      • SBAS: 2m (6.56 ft)
  • For use with:
    • Raymarine Ray90 and Ray91 Marine VHF Radios
  • Manufacturer: Raymarine
  • Model Number: Wireless Station Pack
  • Part Number: T70434
