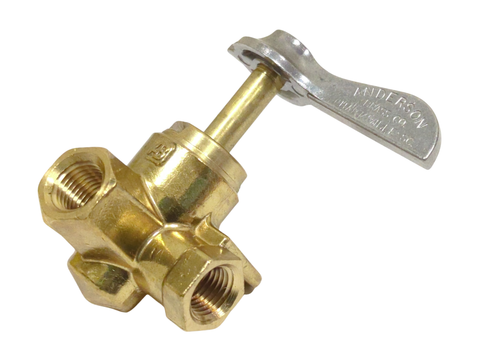

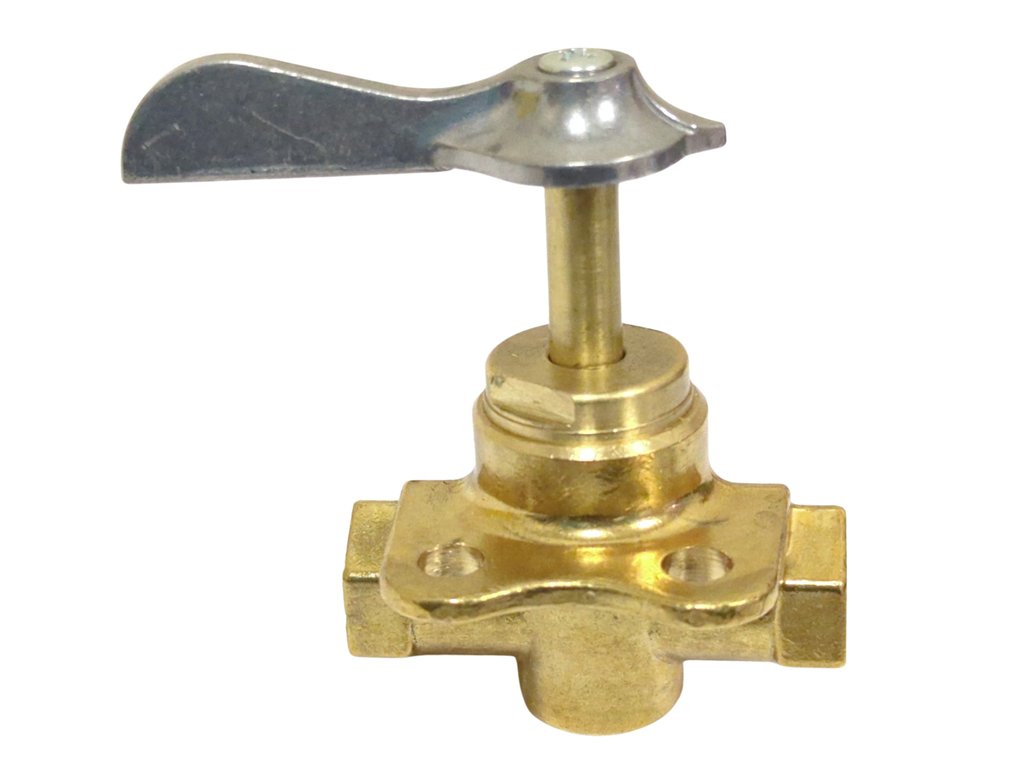

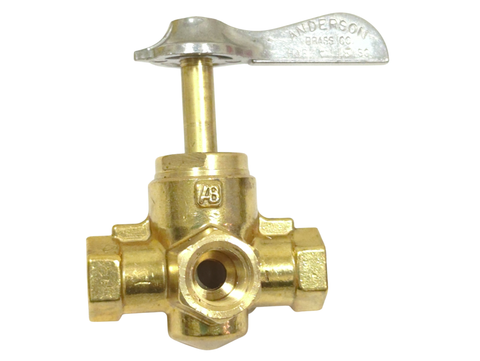

Anderson Brass 210C-L 210 Series 1/4" NPT 3-Way Selector Valve West Marine 13854747
Sale
Regular price
$29.95
1 available
Anderson Brass 210C-L 210 Series 1/4" NPT 3-Way Selector Valve West Marine 13854747
The 210 Series non-lubricated selector valves are designed to operate in systems where instantaneous port selection is desired. Since lubricants are not used, re-lubrication is not required. There is no lubricant to freeze and lock the valve or to contaminate fine fluids. The O-ring sealed cap and stem eliminate leakage. Designed for panel or bracket mounting.
Standard with pointer lever and an audible click mechanism. This arrangement assures proper porting selection by sound or touch. This construction is highly desirable when the operator's visual attention cannot be distracted or for remote valve locations. The valve rotates 360 degrees with click intervals spaced every 90 degrees.
Features:
360° Handle Rotation with detent and audible click every 90°.
Connects two tanks to one engine or two engines to one tank.
Click detents ensure proper position.
Specifications:
Material: Brass
Connection Type - Side 1: NPT
Connection Gender - Side 1: Female
Connection Size - Side 1: 0.25” (6.35mm)
Connection Type - Side 2: NPT
Connection Gender - Side 2: Female
Connection Size - Side 2: 0.25” (6.35mm)
Connection Type - Side 3: NPT
Connection Gender - Side 3: Female
Connection Size - Side 3: 0.25” (6.35mm)
Max. Pressure: 150 psi
Various stem lengths and handle rotations available upon request.
