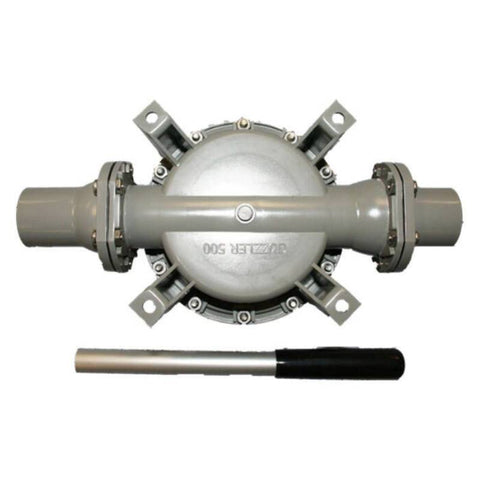

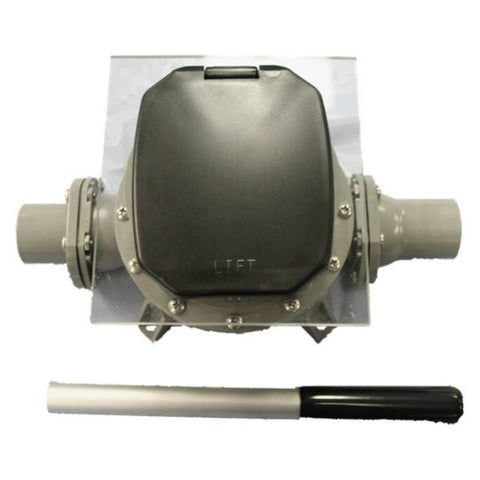

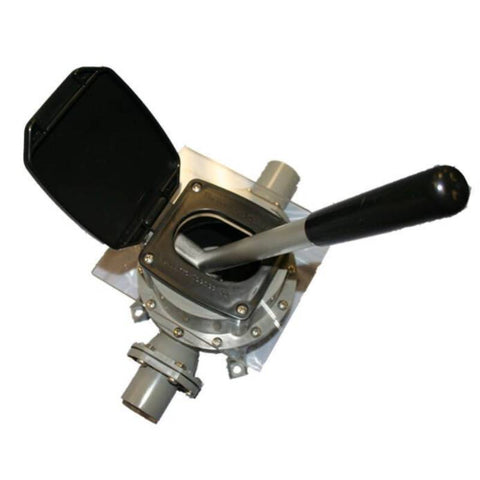

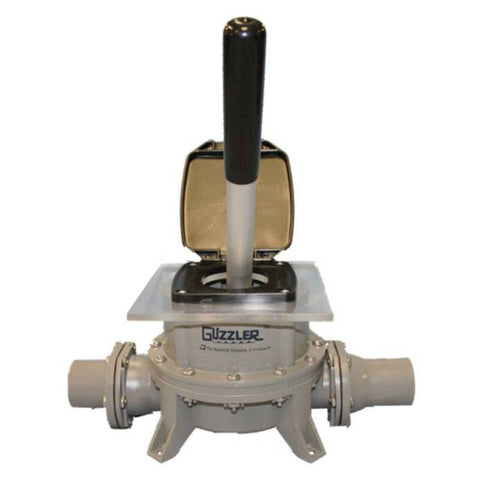

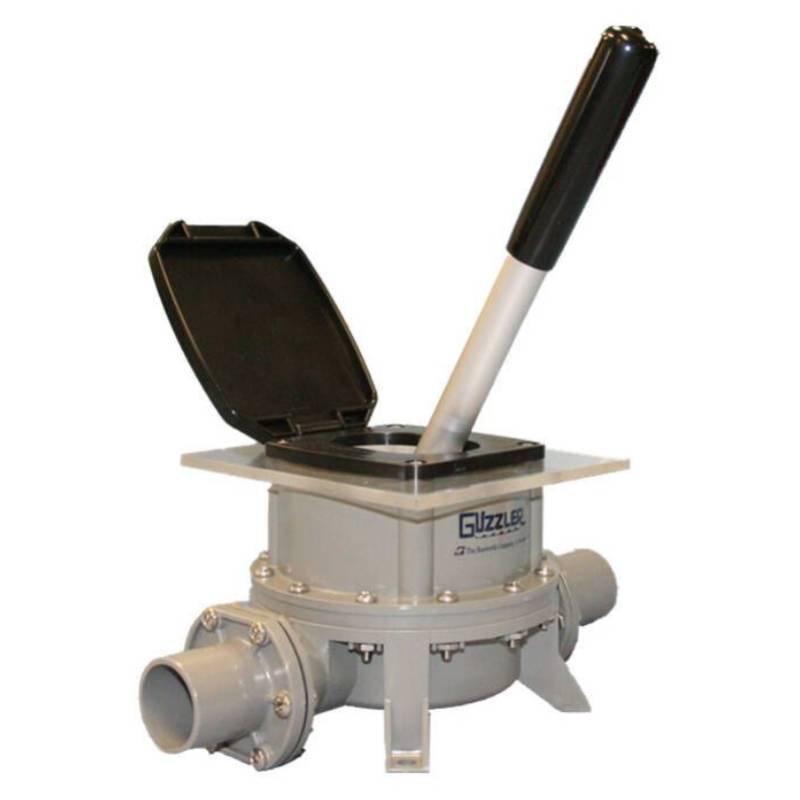

Bosworth Guzzler G-09001 M-5-V Boat Marine 1-1/2" Manual Bilge Waste Pump
-
Bosworth Guzzler G-09001 M-5-V Boat Marine 1-1/2" Manual Bilge Waste Pump
- Features:
- The Bosworth Guzzler GM-5-V Manual Bilge Pump is a flush-mounted ("thru-deck") version of the popular Guzzler 500 pump
- Ideal for use as bilge or sanitation pump
- Flush-mounted below deck or behind wall (max. deck / wall thickness: 3/4")
- Sleek, low-profile cover plate is black Delrin
- Removable, rugged aluminum handle
- Handle can be positioned in 12 different orientations relative to pump ports
- Specifications:
- Handle Orientation: Vertical (removable)
- Flow Rate: 12 GPM @ 90 strokes per minute
- Volume per stroke 0.55 qt / 0.52 l
- Port Size: 1-1/2" inlet and outlet
- Max. Pressure: 15 PSI
- Max Service Temp: 212° F / 100° C
- Dimensions: 13-7/8" H X 9-1/2" W X 10-7/8" L
- Diaphragm Material: Buna-N (Nitrile)
- Flapper Check Valves Material: Buna-N (Nitrile)
- Lift:
- 12.0 ft / 3.7 m
- 22.0 ft / 6.7 m with check valve
- Head: 30 ft / 9.1 m
- Manufacturer: Bosworth Guzzler
- Model Number: M-5-V
- Part Number: G-09001
