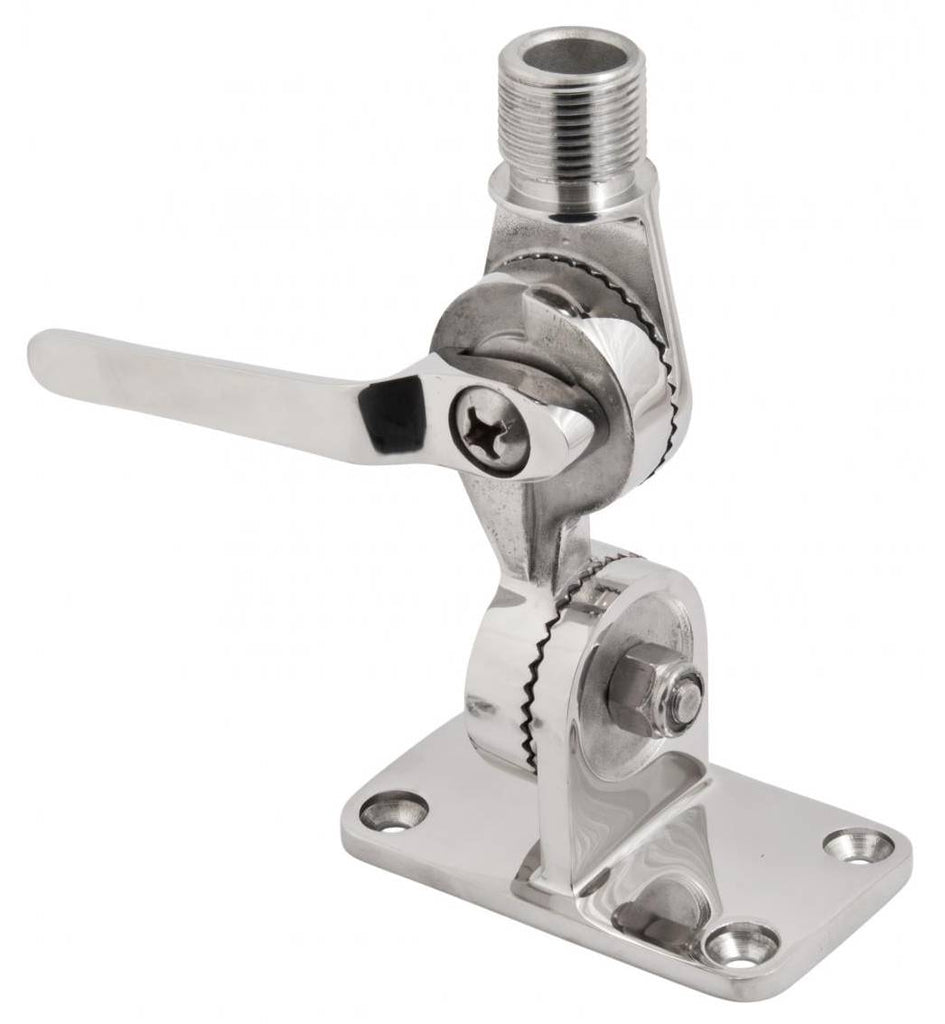

AC Antennas N286FE Marine Stainless Steel 1"-14 Thread 4-Way Heavy Duty Ratchet Surface Antenna Mount

  • Sale
  • Regular price $59.95
  • 1 available


  • AC Antennas N286FE Marine Stainless Steel 1"-14 Thread 4-Way Heavy Duty Ratchet Surface Antenna Mount
  • The N286FE is a stainless steel four way ratchet mount for installation on any flat surface. The handle allows quick and easy antenna tilt when needed. N286Fe is equipped with a feed through hole for RG58C/U cable. Screw set is included. N286Fe has a smaller foot print than the similar mount N287Fe. This mount is manufactured in premium quality materials in order to prevent galvanic corrosion. The mount is always subject for improvement. The mount has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on Sea and Land.
  • Specifications:
    • Base Mount: 2.6” X 3.7” (65mm X 94mm)
    • Thread: 1"-14
    • Dimensions:
      • Length: 6” (152.4mm)
      • Width: 3.6” (91.44mm)
      • Height: 3.12” (79.25mm)
    • Material: Stainless Steel
    • Finish: SS316
  • For use with: 1"-14 Ferrule Antennas
  • Manufacturer: AC Antennas
  • Model Number: N286FE
  • Part Number: 900064-B
