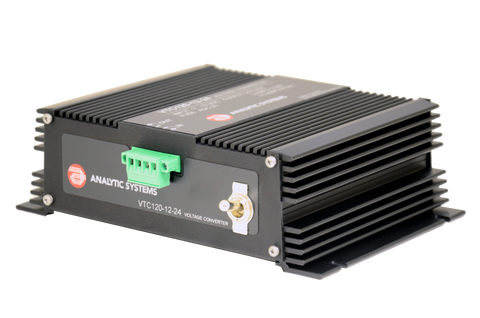

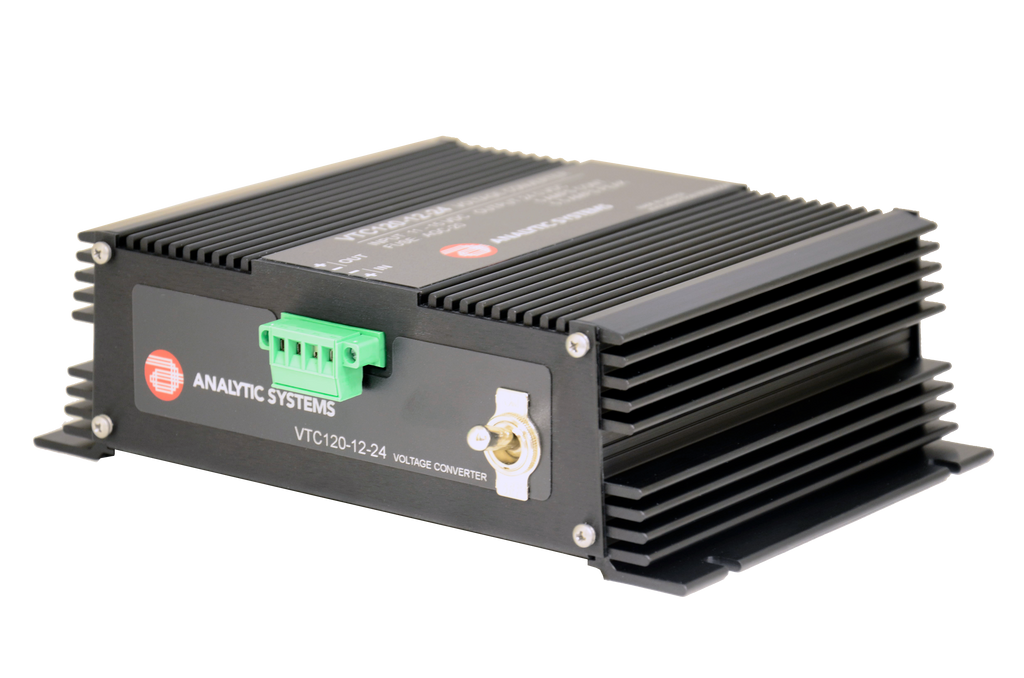

Analytic Systems VTC120-12-24 Step-Up 12V to 24V DC/DC Isolated Voltage Converter

Analytic Systems VTC120-12-24 Step-Up 12V to 24V DC/DC Isolated Voltage Converter

  • Sale
  • $299.95
  • 1 available
  • Analytic Systems VTC120-12-24 Step-Up 12V to 24V DC/DC Isolated Voltage Converter
  • Specifications:
    • Conversion: DC to DC
    • Power (Watts): 120
    • Input Voltage: 11 – 15 VDC
    • Output Voltage: 24 VDC
    • Output Amperage Continuous: 5
    • Input/Output Isolation: Yes
  • Features:
    • Ultra-quiet
    • Power sensitive electronics without interference
    • Rugged and reliable to ensure years of safe and trouble free operation
    • Versatile design with wide variation of input and output combinations
    • Precision linear regulator final stage for ultra clean output (except VTC120nr-12-24)
    • Extremely rugged and suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Ideal for running 24V PLC controls from 12 VDC
    • Reverse input protection
    • Short circuit protection
  • Manufacturer: Analytic Systems
  • Model Number: Isolated Voltage Converter
  • Part Number: VTC120-12-24
