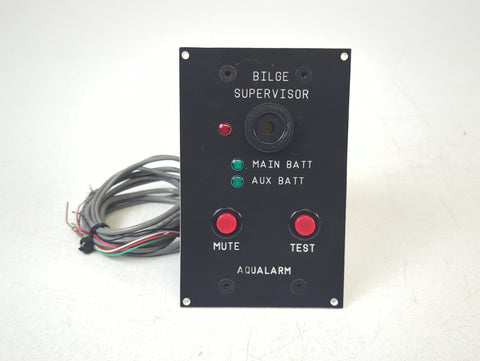

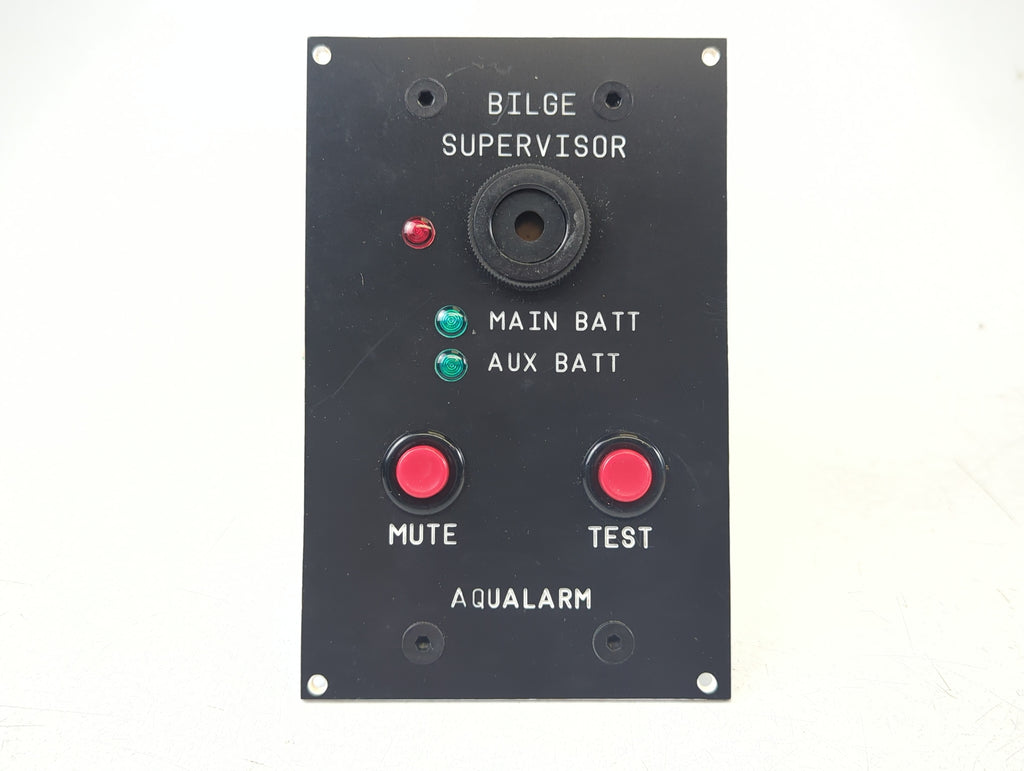

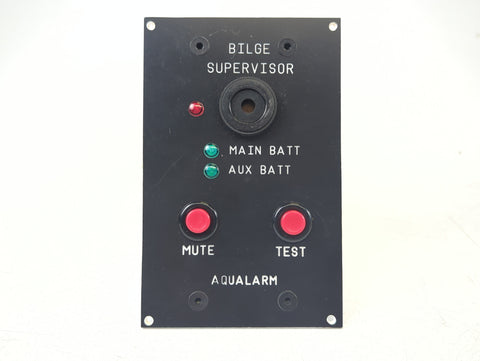

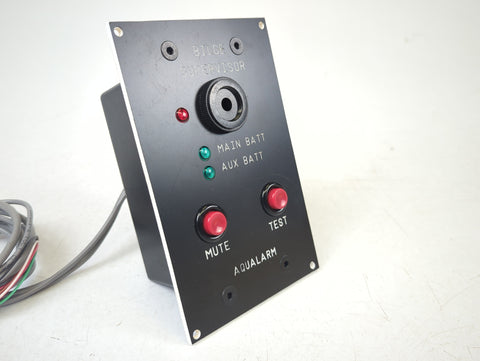

Aqualarm 20074 Bilge Supervisor Control Panel with 208A Bilge Water Level Detector utilizes a supervised circuit in addition to the alarm activated in the event of high bilge water.
A supervised circuit is a circuit that sounds an alarm if a wire is broken, corroded, or tampered with, in addition to the normal alarm in the event of high water.
Features:
Loud audible alarm is built in: Intermittent sound indicates a broken connection. Constant sound indicates high water alarm conditions.
Red Warning Light: Red warning light on panel indicates pump is running.
Green light indicator for main battery and auxiliary battery power: When the AUX BATT option is connected, the system switches from MAIN to AUX automatically if MAIN battery power is lost.
Specifications:
Nominal Voltage: 24V DC
Dimensions (Panel): 4-7/8" H X 3-15/16" W (123.83 X 84.14 mm)
Will work on 12V, 24V and 36V systems.
Manufacturer: Aqualarm
Model Number: Bilge Supervisor

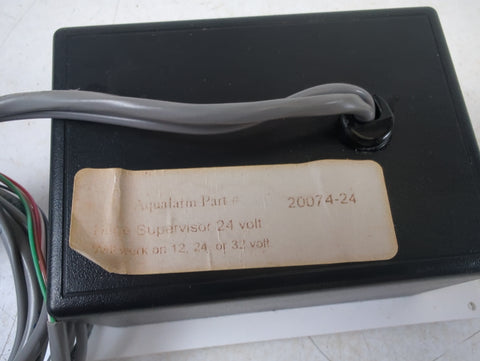

Part Number: 20074-24
Also Known As: 20074

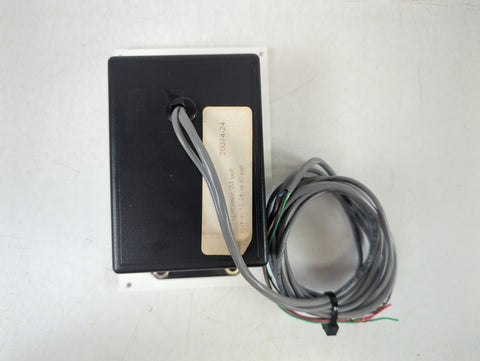

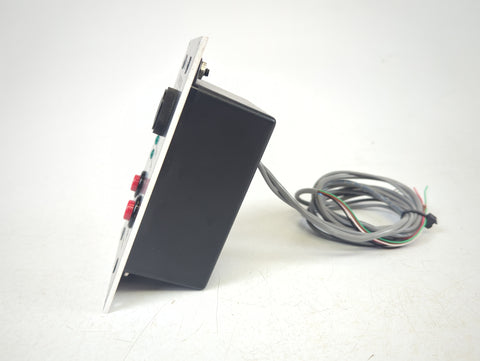

Condition: New! In Stock, Ready to Ship! NOS New Old Stock. No original packaging. See Photos.
