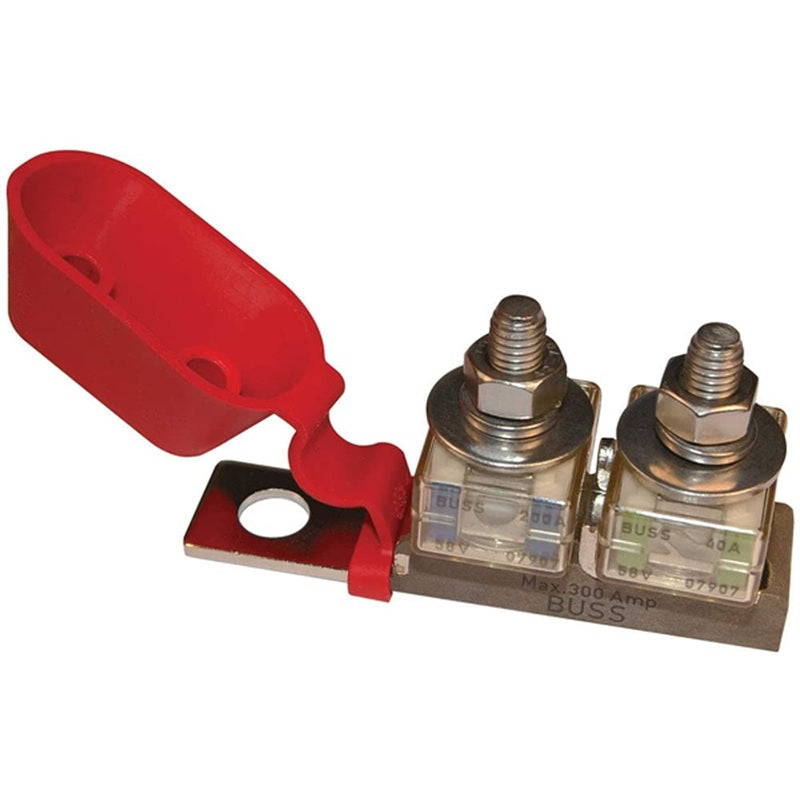

Blue Sea Systems 2151 Boat Marine 30A to 300A Dual MRBF Terminal Fuse Block

Blue Sea Systems 2151 Boat Marine 30A to 300A Dual MRBF Terminal Fuse Block

  • Sale
  • $39.95
  • 1 available
  • Blue Sea Systems 2151 30A to 300A Dual MRBF Terminal Fuse Block
  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5/16" ring terminals
  • Mounts on 3/8” terminal studs
  • Fuse sold separately
  • Maximum Amperage: 300A
  • Maximum Voltage: 58 VDC
  • Terminal Stud: M8 (5/16")
  • Maximum Torque: 75 in-lb (8.47 Nm)
  • Manufacturer: Blue Sea Systems
  • Model Number: MRBF
  • Part Number: 2151
