  • Sale
  • $27.95
  • 1 available

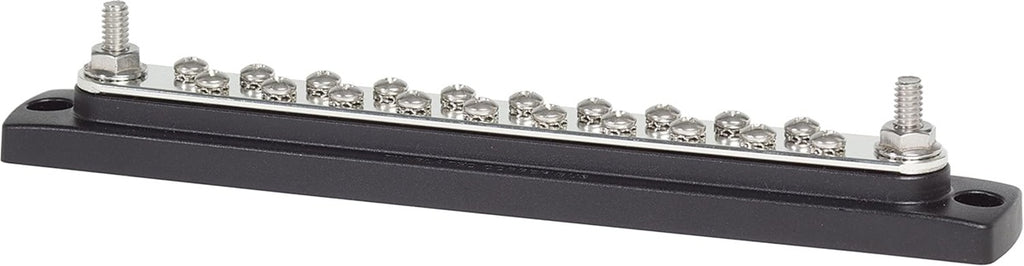

  • Blue Sea Systems 2302 Boat Marine 20-Gang Common 150A BusBar Bus Bar
  • Insert molded stainless steel studs eliminate need for securing nuts and allow high torquing for excellent electrical contact.
  • Raised bus provides easy access to multiple wires on a single screw.
  • UL 94-V0-rated base material resists high heat.
  • Captive star-type lock washers meet CE requirements for anti-rotation and easy installation.
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces.
  • Corrosion resistant Tin-plated copper Bus reduces heat and improved efficiency of electrical System.
  • Maximum Voltage:
    • 300V AC
    • 48V DC
  • Number of Screw Terminals: 20
  • Number of Terminal Studs: 2

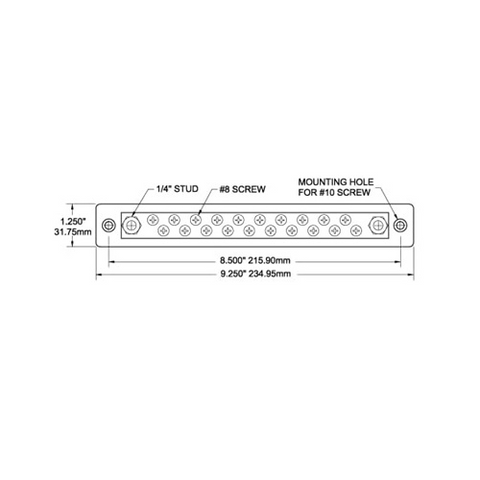

  • Terminal Type:
    • 1/4" Stud
    • #8-32 Screw
  • Continuous Rating:
    • 130A AC
    • 150A DC
  • Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
  • Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
  • Screw Terminal Torque: 15 in-lb (1.69 Nm)
  • Stud Torque: 60 in-lb (6.78 Nm)
  • BusBar is used to consolidate multiple wires or feed multiple circuits.
  • Manufacturer: Blue Sea System
  • Model Number: Common BusBar
  • Part Number: 2302
