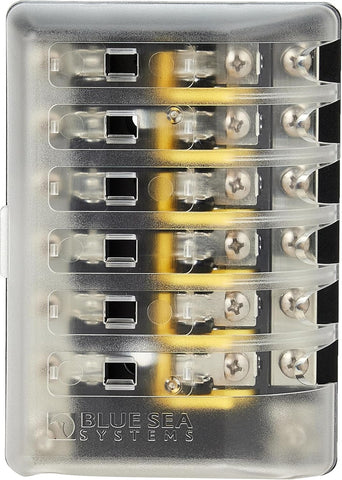

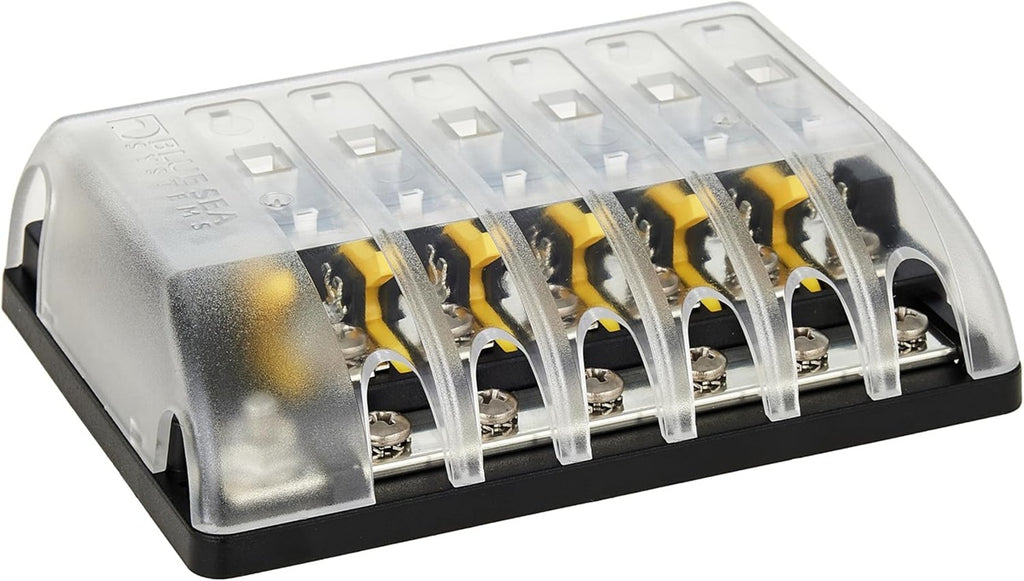

Blue Sea Systems 5015 AGC / MDL Glass 6 Circuit Negative Bus Fuse Block with Cover
- Blue Sea Systems 5015 AGC / MDL Glass 6 Circuit Negative Bus Fuse Block with Cover
- Innovative design allows for labeling, spare fuse storage, and easy fuse removal
- Clear insulating cover with label recesses for accepting Large Format Labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Phosphor Bronze fuse clips give a 30 Ampere rating per circuit
- Accepts AGC (Fast Acting), MDL (Time-Delay), and all other 3AG Glass Fuses
- Can be used for 24-hour circuits.
- Fuses sold separately
- Circuits: 6
- Maximum Amperage:
- 100A per block
- 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #10 Screw
- Negative Bus: Yes
- Base Material: Reinforced Polycarbonate
- Cover Material: Polycarbonate
- Screw Terminal Type: #8-32 with Captive Star Lockwasher
- Recommended Wire Size:
- Positive Feed: 6-4 AWG (16-25mm2)
- Branch Circuit: 16-10 AWG (1.5-6mm2)
- Recommended Torque:
- #10 Stud: 24 in-lb (2.71 N-m)
- #8 Screw: 18 in-lb (2.03 N-m)
- Fuse Dimension: 0.25” X 1.25” (6.35 X 31.75 mm)
- Manufacturer: Blue Sea Systems
- Model Number: ST Glass Fuse Block
- Part Number: 5015
