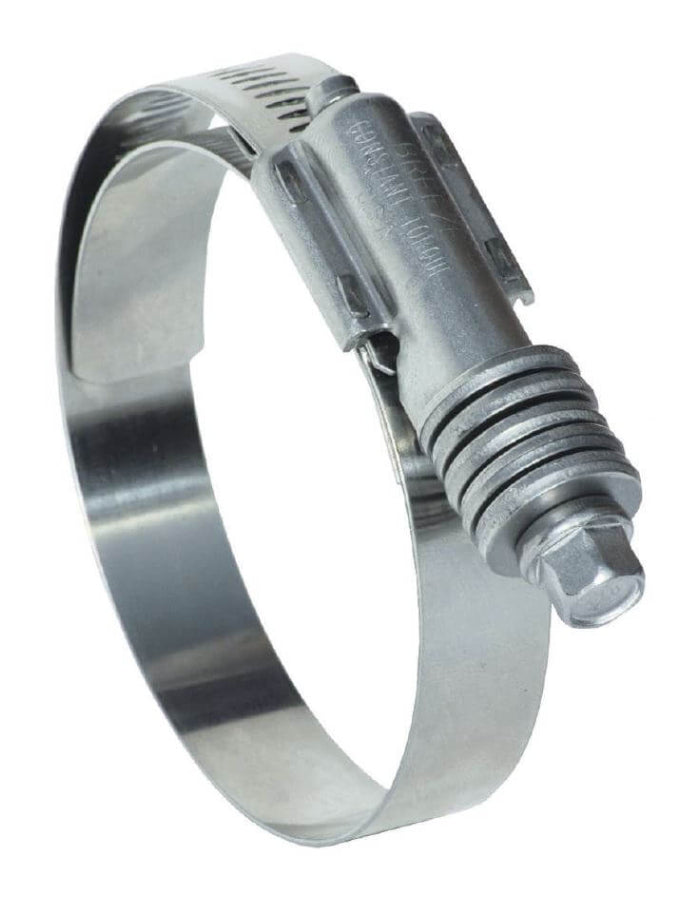

Breeze CT-500-L-SS Constant-Torque HD SS SAE 512 4-1/4" to 5-1/8" Stainless Steel Hose Clamp 01560005119

Breeze CT-500-L-SS Constant-Torque HD SS SAE 512 4-1/4" to 5-1/8" Stainless Steel Hose Clamp 01560005119

  • Sale
  • $15.95
  • 1 available
  • Breeze CT-500-L-SS Constant-Torque HD SS SAE 512 4-1/4" to 5-1/8" Stainless Steel Hose Clamp
  • Size:
    • SAE 512
    • Minimum Diameter: 4-1/4” (108mm)
    • Maximum Diameter: 5-1/8” (130mm)
  • Screw: 3/8”, 410 Stainless Steel Hex Screw
  • Band: 5/8”, 300 stainless steel
  • A revolutionary clamp that reacts to changes in hose systems by actually increasing or decreasing its own diameter as the system expands or contracts
  • Heavy Duty Construction, Stops Fluid Leaks
  • Liners are Integral Extensions of the Band that Lie True to the Clamping Axis
  • Special Spring Mechanism Maintains Consistent Sealing Pressure
  • For use with:
    • Applications that Require Thermal Expansion and Contraction.
    • In Large Diameter Applications-Torque Rated 50-125 in./lbs.
  • Manufacturer: Breeze
  • Model Number: Constant-Torque HD SS
  • Part Number: CT-500-L-SS, CT-500L SS, (CT 500 L SS), CT500LSS
  • Global Part Number: 01560005119, 0156 0005 119, 0156-0005-119
