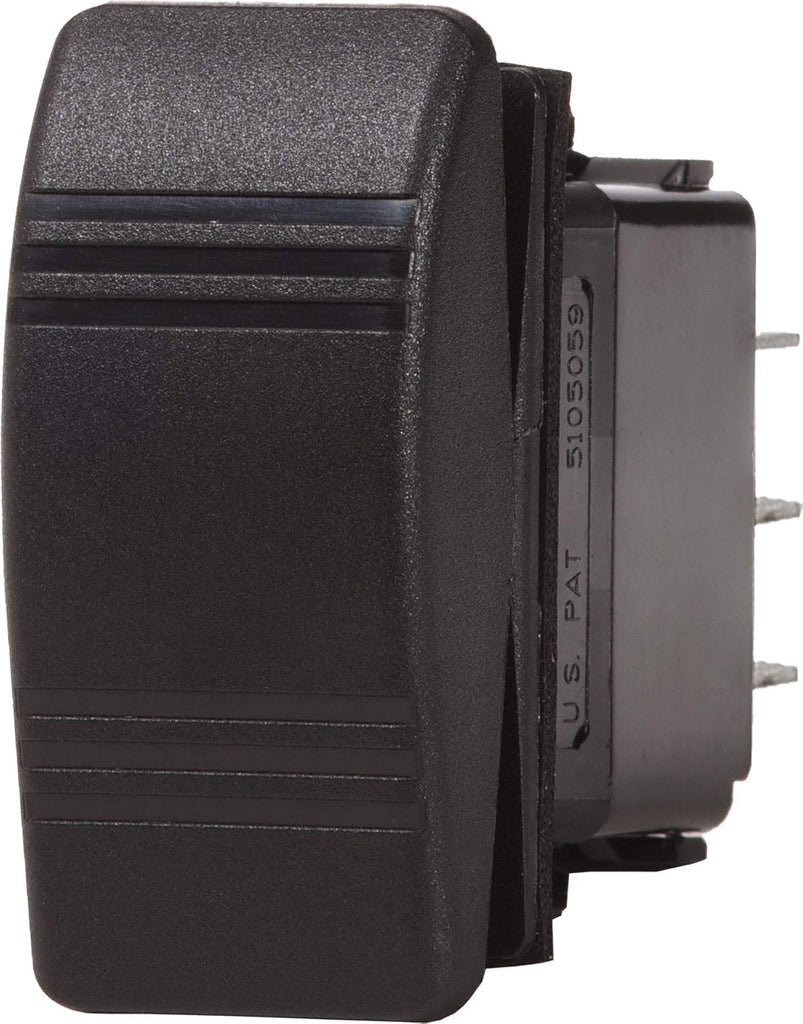

Carling Contura III Water Resistant Black (ON)-OFF-(ON) DPDT Rocker Switch Blue Sea System 8290

Carling Contura III Water Resistant Black (ON)-OFF-(ON) DPDT Rocker Switch Blue Sea System 8290

  • Sale
  • $21.95
  • 3 available
  • Carling Contura III Water Resistant Black (ON)-OFF-(ON) DPDT Rocker Switch
  • Vibration, shock, thermoshock, moisture, and salt spray resistant.
  • Snap into the panel with the gasket in place.
  • Custom retention wings for water-resistant mounting in 1/8" panels.
  • Ignition Protected - Safe for installation aboard gasoline-powered boats
  • Meets UL1500 and ISO8846 ignition protection requirements
  • Action: (ON)-OFF-(ON)
  • Pole/Throw: DPDT
  • Actuator Color: Black - Contura III
  • Amperage Max Operating:
    • 20A @ 12V DC
    • 15A @ 24V DC
  • Temperature Rating: -40°C to 85°C
  • Operating Current: 18 Milliamps
  • Seals: Internal & External Gasket Panel Seal
  • Mounting Hole: 1.450” X 0.830” (36.8mm X 21.1mm)
  • Manufacturer: Blue Sea System
  • Model Number: Carling Contura III
  • Part Number: 8290
