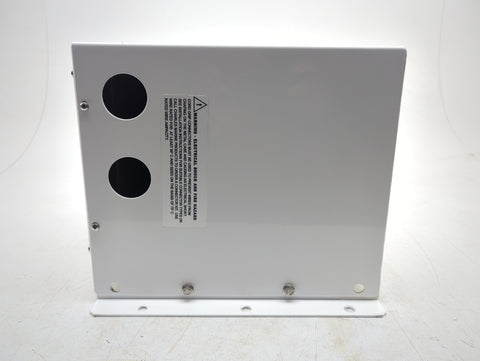

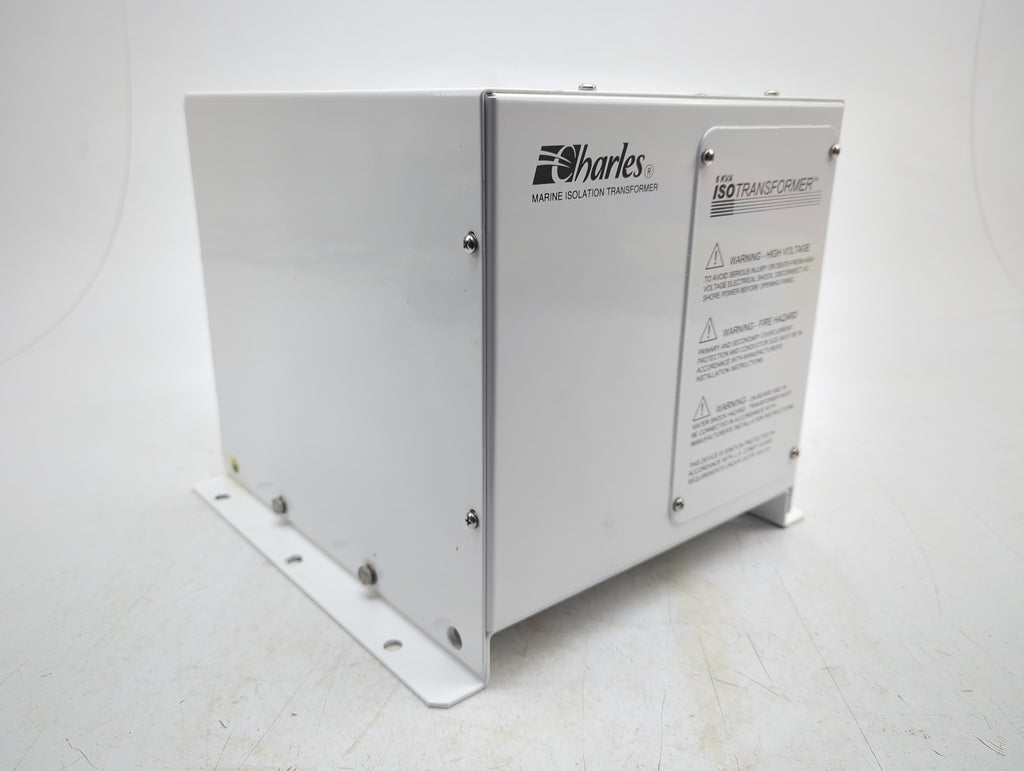

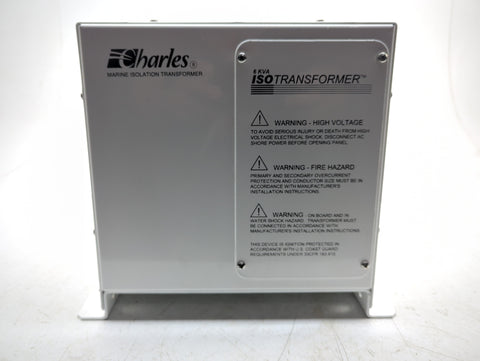

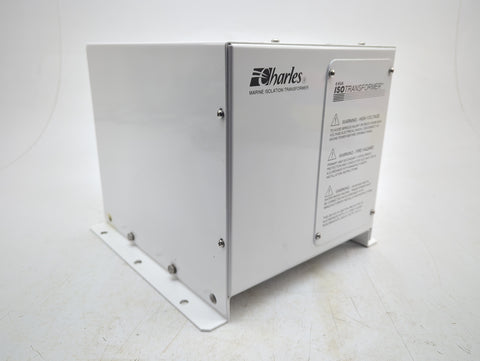

Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer
Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer
Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer
Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer
Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer

Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer

  • Sale
  • $1,799.95
  • 1 available
  • Charles Industries 93-IXFMR6T-B Marine 50A 6kVA 120VAC Isolation Transformer
  • The 6T KVA IsoTransformer is a shoreline isolation transformer intended for boats with 50 amp/120 volt service. Properly installed, it will electrically isolate AC shore power from the boat’s AC power system, reducing galvanic current corrosion due to the AC shore power connection.
  • Specifications:
    • Input Voltage: 120 VAC
    • Input Current: 50 A
    • Output Voltage: 120 VAC
    • Output Current: 50 A
    • KVA Continuous: 6 KVA
    • Operating Frequency: 50/60 Hz
    • °C Rise Insulation System 220A: 120°C
    • Insulation Class: H
    • % Impedance: 3.2
    • Operating Temperature: 0° to 50° C
    • Approximate Weight: 200 pounds
    • Dimensions (H X W X D): 11.75” X 14.75” X 16.06” (298.45 X 374.65 X 407.924 mm)
  • Manufacturer: Charles Industries
  • Model Number: 6kVA Isolation Transformer
  • Part Number: 93-IXFMR6T-B
  • Condition: New! In Stock, Ready to Ship! NOS New Old Stock. Due to the size and weight, this unit is being SOLD AS-IS.
