Clarion CMD5 Watertight Marine AM FM CD MP3 WMA Receiver Multimedia Controller
Sale
Regular price
$99.95
1 available
Watertight Marine AM FM CD MP3 WMA Receiver Multimedia Controller
FM Tuner Specifications:
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 9 dBf
50 dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (r3 dB): 30 Hz to 15 kHz
AM Tuner Specifications:
Frequency Range: 530 kHz to 1710 kHz
Usable Sensitivity: 25 PV
CD Player Specifications:
System: Compact Disc Digital Audio System
Usable Discs: Compact Disc
Frequency Response (r1 dB): 10 Hz to 20 kHz
Signal to Noise Ratio (1 kHz): 100 dB
Dynamic Range (1 kHz): 95 dB
Harmonic Distortion: 0.02%
Audio Specifications:
Maximum Power Output: 200 W (50 W u 4 ch)
Bass Control Action (60 Hz): r14 dB
Treble Control Action (10 kHz): r14 dB
Line Output Level (CD 1 kHz): 2V
General Specifications:
Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable), negative ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 : (4 : to 8 : allowable)
Weight / Source Unit: 4.62 lb. (2.1 kg)
Weight / Remote Control Unit:1.41 oz. (40 g) (including battery)
Dimensions / Source unit: 7-1/8" (W) X 2" (H) X 7-7/10" (D) [180.4 (W) X 51.2 (H) X 195.5 (D) mm]
Dimensions / Remote Control Unit: 1-3/4" (W) W 4-7/16" (H) X 1/2" (D) [44 (W) x 113 (H) x 13 (D) mm]
Escutcheon Section: 7-7/8" (W) X 3-5/8" (H) X 1-7/8" (D) [199.4 (W) u 91.9 (H) u 47 (D) mm]
Manufacturer: Clarion
Model Number: Multimedia Controller
Part Number: CMD5

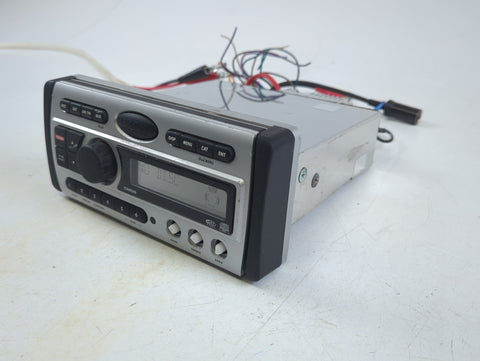

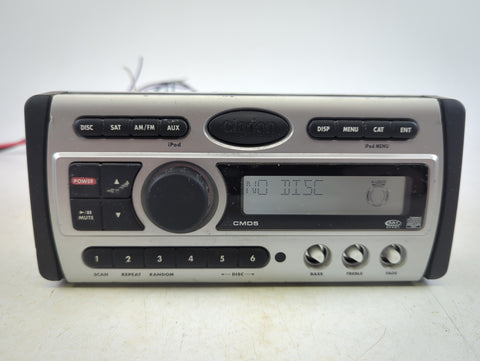

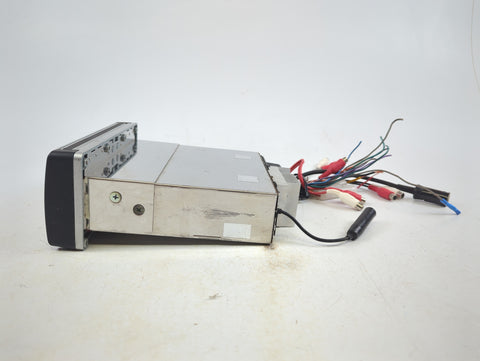

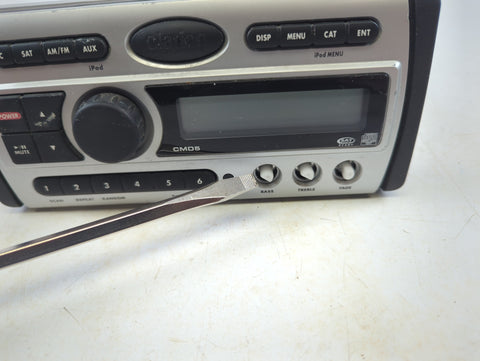

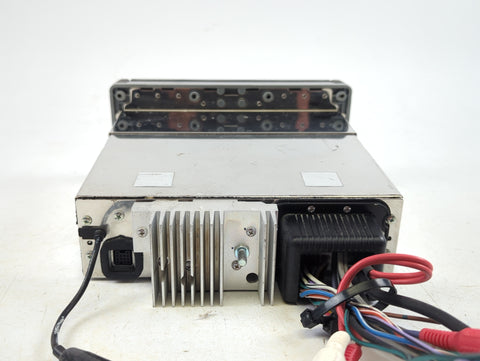

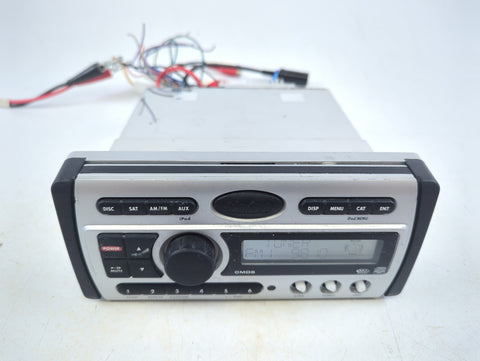

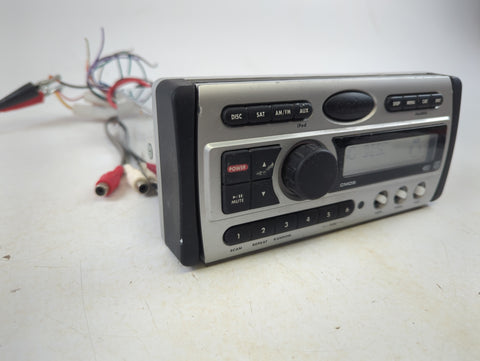

Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. NO KNOBS. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
