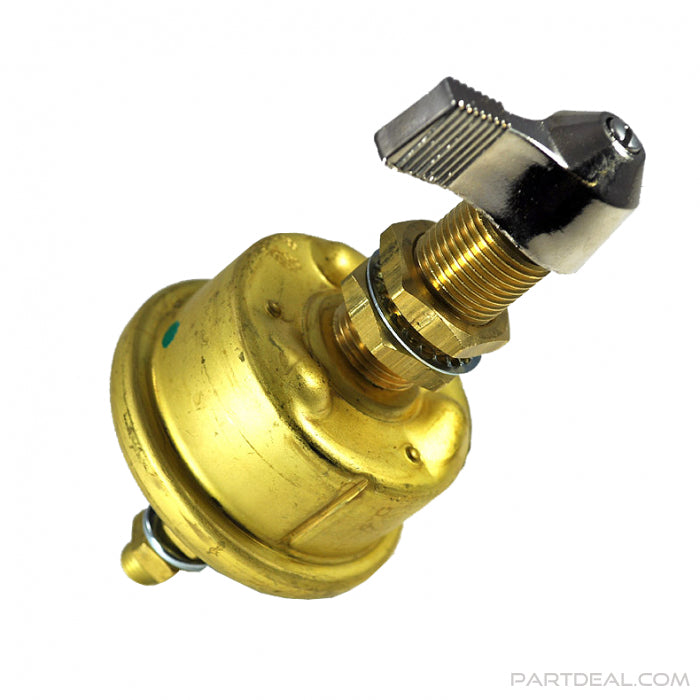

Cole Hersee M-284 Marine Grade On-Off 6-36V Master Disconnect Switch

Cole Hersee M-284 Marine Grade On-Off 6-36V Master Disconnect Switch

  • Sale
  • $49.95
  • 3 available
  • Single Pole Marine Grade Master Disconnect Switch
  • Designed to prevent electrical fires, tampering, theft and battery drain when equipment is unattended.
  • For 6V-36V DC systems.
  • Electrical Ratings
    • Single Pole
    • Master Disconnect Switches
    • 175 amps continuous
    • 1,000 amps intermittent
    • 15 seconds On, 5 minutes Off
  • Mounting stem: brass, 3/4"-24 thread, 1 13/32" (46.05mm) long
  • fits panels up through 15/16" (23.81mm) thick
  • Terminals: two 3/8" (9.52mm) diameter stud
  • Actuator: chrome plated lever
  • Case: brass
  • Manufacturer: Cole Hersee
  • Model Number: Master Disconnect Switch
  • Part Number: M-284
