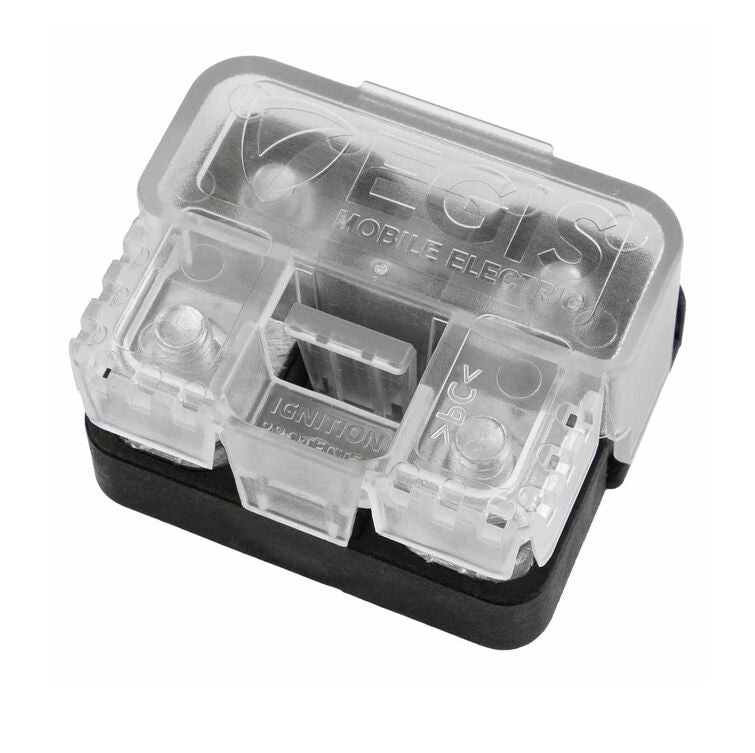

Egis 3914 Boat Marine MIDI / AMI MAXI Compact Fuse Block with Cover

Egis 3914 Boat Marine MIDI / AMI MAXI Compact Fuse Block with Cover

  • Sale
  • $35.95
  • 4 available
  • Egis Boat Marine MIDI / AMI MAXI Compact Fuse Block with Cover
  • Specifications:
    • Base Material: Nylon 6 30% GF
    • Max Voltage: 80Vdc
    • Maximum Amperage: Supports All MIDI Fuse Values
    • Max Storage/Shipping Temperatures: -50 °C to 140 C
    • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
    • Cover Material: Clear Polycarbonate
    • Mounting Holes : 2x #10 (M5)
    • Hardware Material: Tin-Plated Copper
    • Operating Ambient Temperature Range: -40 C to 125 C
    • Ingress Protection: IP54
  • Compatible with AMI/MIDI Fuses Up To 300A
  • Stainless-steel self-locking hardware ensures long-term reliability and ease of installation
  • Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high- temperature materials
  • Fuse not included
  • Manufacturer: Egis
  • Model Number: MIDI Fuse Block
  • Part Number: 3914
  • Also Known As: 22316814
