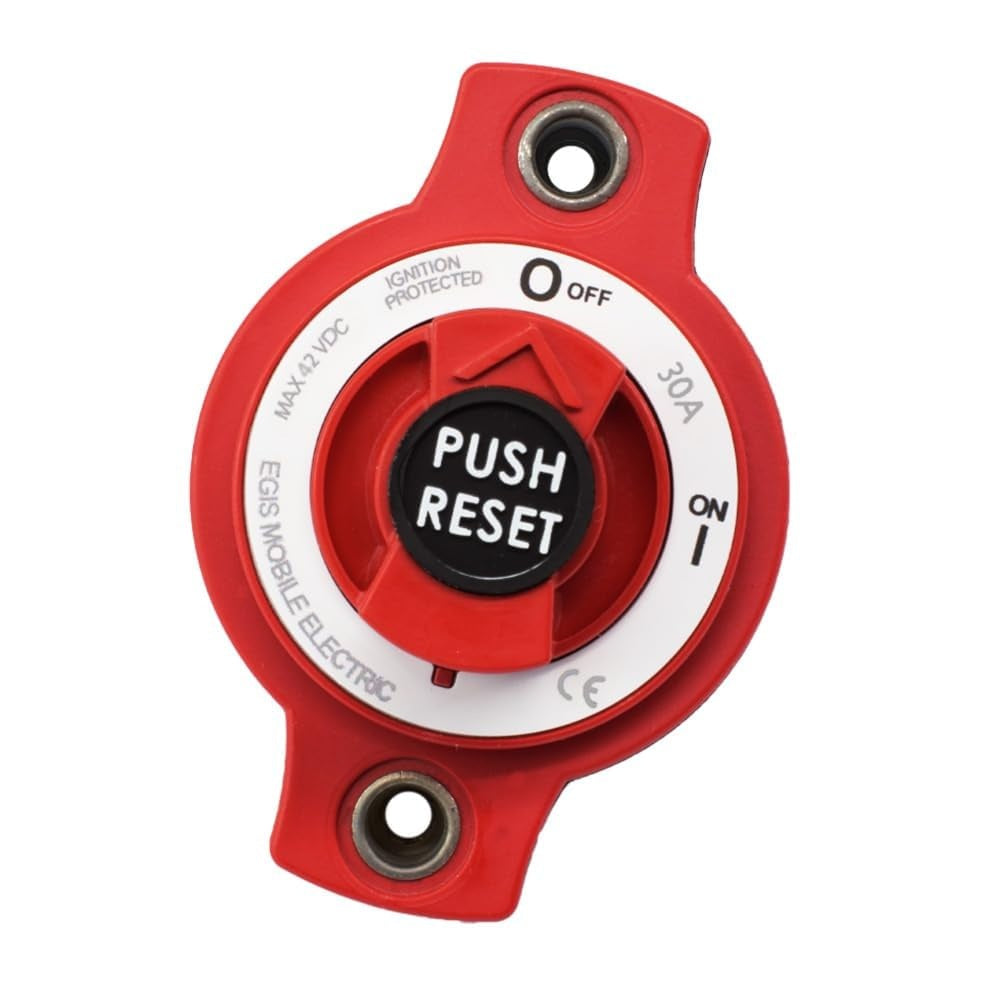

Egis 4701-30 Boat Marine 30A Panel Mount Mini-Breaker Battery Disconnect Switch

Egis 4701-30 Boat Marine 30A Panel Mount Mini-Breaker Battery Disconnect Switch

  • Sale
  • $38.95
  • 2 available
  • Egis Boat Marine 30A Panel Mount Mini-Breaker Battery Disconnect Switch
  • Specifications:
    • Current Rating: 30 Amps continuous
    • Max Operational Voltage: 42 Vdc
    • Interrupt Capacity (AIC): 3 kA (14 Vdc) / 1.5 kA (28 Vdc)
    • Type / Class: Thermal / Type III - Trip Free
    • Min / Max Operating Temperature: -40 C (-40 F) to 85 C (185 F)
    • Hardware Material: 18-8 Stainless, Self Locking
    • Dust & Water Ingress Protection: IP66
  • Combines Circuit Protection w/ Branch Disconnect
  • High Visibility Reset Button
  • Automatic Circuit Protection & Manual On/Off Switching
  • Allows for Circuit Isolation and Maintenance of Load Circuits
  • Manufacturer: Egis
  • Model Number: Mini-Breaker Disconnect Switch
  • Part Number: 4701-30
