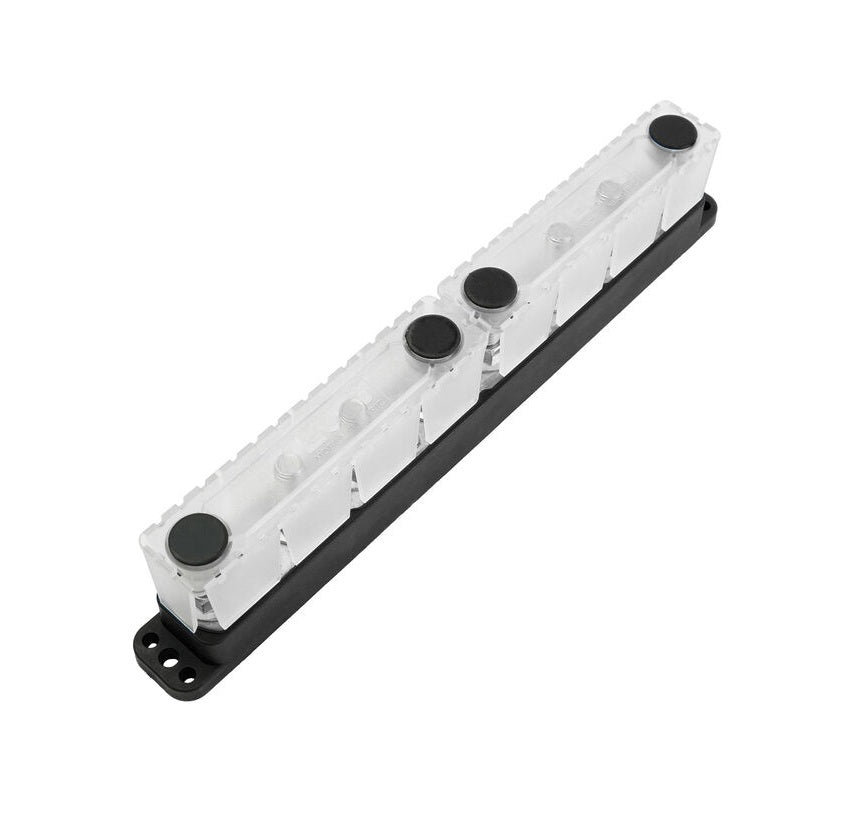

Egis 6600-804 PowerBar 80VDC 600A 8 Circuit X 3/8" (M10) Stud Tin-Plated Copper BusBar with Cover

Egis 6600-804 PowerBar 80VDC 600A 8 Circuit X 3/8" (M10) Stud Tin-Plated Copper BusBar with Cover

  • Sale
  • $139.95
  • 1 available
  • Egis PowerBar 80VDC 600A 8 Circuit X 3/8" (M10) Stud Tin-Plated Copper BusBar with Cover
  • Specifictaions:
    • Circuits: 8
    • Current Rating: 600A
    • Terminals: Dual 3/8" (M10)
    • Maximum Voltage: 80Vdc
    • Busbar Stud/Thread Size: M10-1.5
    • Screw terminal Size: #8-32
    • M10 Nut Recommended Torque: 120 in-lbs (13.6 N-m)
    • M10 Nut Maximum Torque: 140 in-lbs (15.8 N-m)
    • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
    • Base Material: Nylon 6 30% GF
    • Busbar Material: Tin-plated Copper
    • Mounting Holes: 4x #10(M5) & 2x 1/4"(M6)
  • Flex System Compatible with Flex interconnected busbars
  • All Stainless Steel Hardware with Self-Locking Fasteners
  • Insert-molded busbar and Studs maximize the strength and durability of the finished  installation.
  • Flexible Mounting Screw Sizing to accept #10 (M5) or ¼” (M6) screws.
  • Height Compatible with other FLEX System Components for simple interconnection with  LINX Busbars
  • Manufacturer: Egis
  • Model Number: PowerBar BusBar
  • Part Number: 6600-804
  • Also Known As: 21976832
