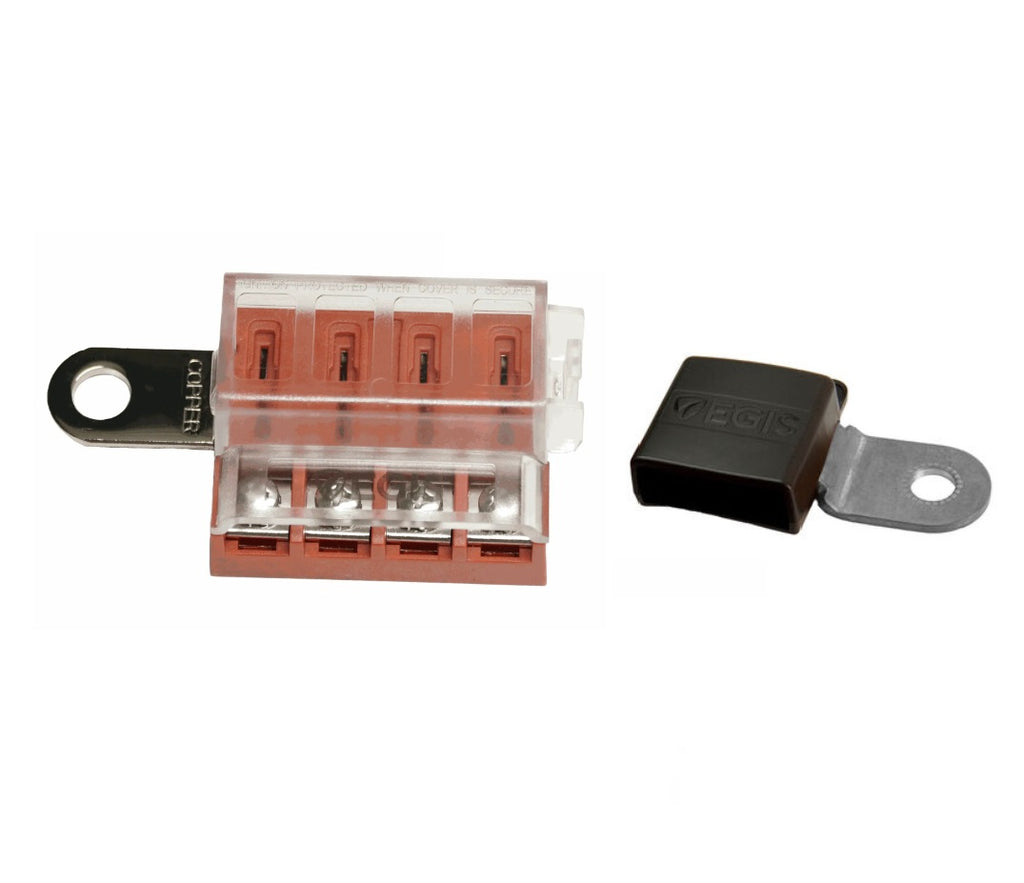

Egis 8023-04 Boat Marine 4 Circuit Fuse Block Busbar Battery Mount Terminal Kit Blue Sea 5024

Egis 8023-04 Boat Marine 4 Circuit Fuse Block Busbar Battery Mount Terminal Kit Blue Sea 5024

  • Sale
  • $43.95
  • 1 available
  • Egis Boat Marine 4 Circuit Fuse Block Busbar Battery Mount Terminal Kit
  • Fuse Type: ATO / ATC blade-style fuses
  • Maximum Voltage: 60 Vdc
  • Maximum Current Amps: 100 Amps (Entire Block)
  • Continuous Current Per Circuit: 30 Amps
  • Input Terminal Size: M5-0.8
  • Busbar Material: Tin-Plated Copper
  • Nominal Voltage:12/24 Vdc
  • Input Terminal Stud Size: M10 (3/8")
  • Hardware Material: Stainless Steel
  • Self-locking stainless steel attachment screws provide vibration-resistant, secure connections.
  • Tin-plated copper busbar
    • Ensures a reliable and corrosion-resistant connection to the main input current.
  • Protective Cover
    • Protects cable terminal edges from inadvertent shorts to each other or ground.
  • Manufacturer: Egis
  • Model Number: RT Series
  • Part Number: 8023-04
  • Also Known As: 21976667, Blue Sea 5024
