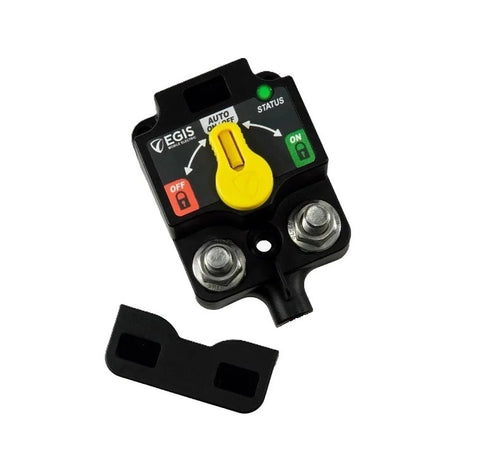

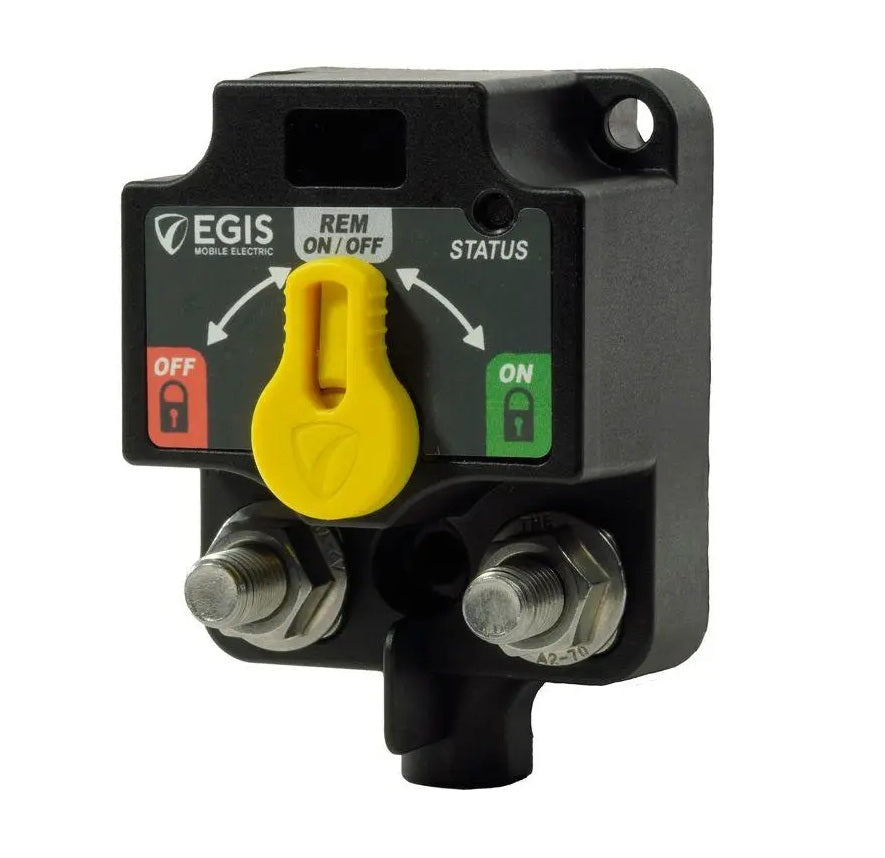

Egis 8710-1500 XD Series Boat Marine 500A Single Relay Remote Battery Switch
Egis 8710-1500 XD Series Boat Marine 500A Single Relay Remote Battery Switch
Egis 8710-1500 XD Series Boat Marine 500A Single Relay Remote Battery Switch

Egis 8710-1500 XD Series Boat Marine 500A Single Relay Remote Battery Switch

  • Sale
  • $124.95
  • 2 available
  • Egis XD Series Boat Marine 500A Single Relay Remote Battery Switch
  • Specifications:
    • Current Rating: 500A
    • Input Voltage Range: 8.0 Vdc - 36.0 Vdc Auto-Ranging
    • Nominal Voltage: 12 Vdc / 24 Vdc
    • Typ. Source Current For All Ctrl Lines: 10 Microns-Amps
    • Min / Max Operating Temperature: -40 C (-40 F) to 105 C (221 F)
    • Hardware Material: 18-8 Stainless, Self-Locking
    • Terminal Stud Torque (Max): 120 in-lb (13.56 N-m)
    • LED/Aux Output Max Drive Current: 400 Milli-Amps
    • Mechanical Switching Life: 1,000,000 Cycles
  • XD Series Single Relay
  • Replaces Legacy Remote Battery Switches
  • Fully Sealed IP67
  • Manually or Remote Operated
  • Manufacturer: Egis
  • Model Number: XD Series
  • Part Number: 8710-1500
  • Also Known As: 8710-1500B
