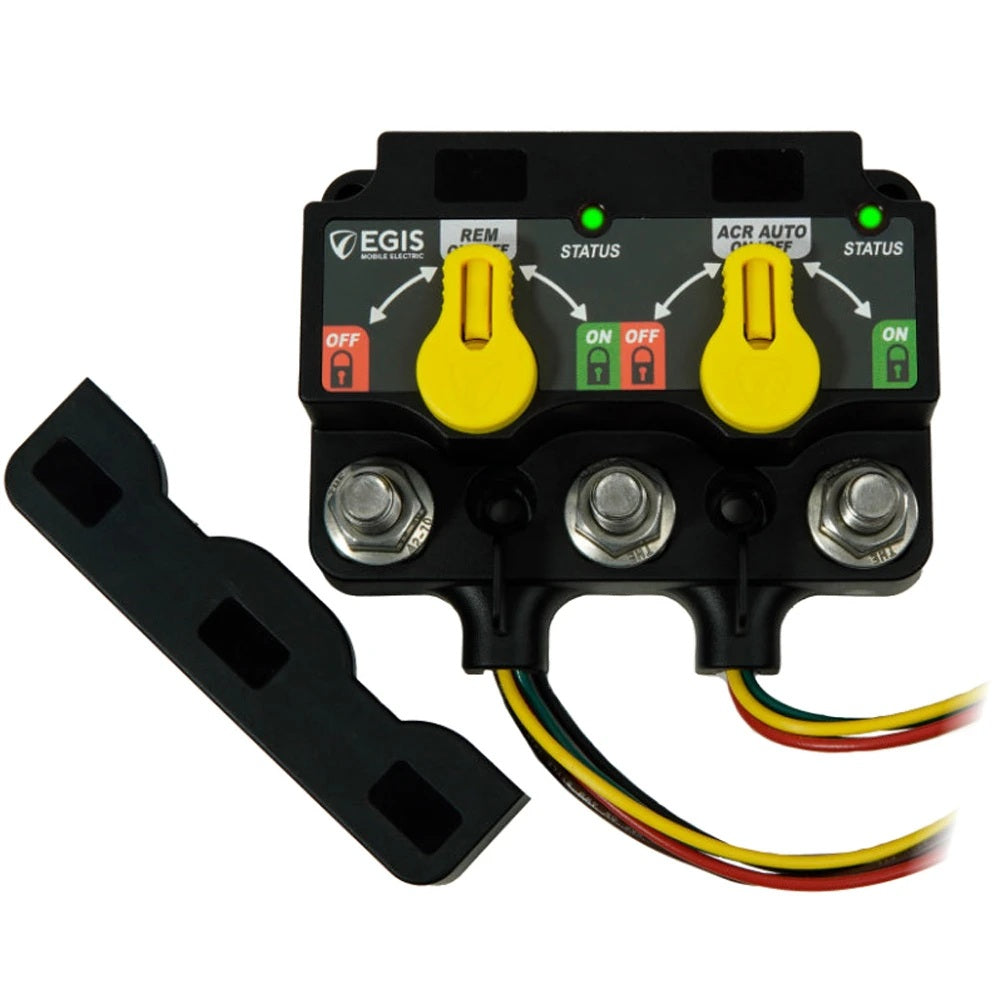

Egis 8720-1350 XD Series ACR/VSR Boat Marine 2 X 500A Dual Remote Relay Battery Switch

Egis 8720-1350 XD Series ACR/VSR Boat Marine 2 X 500A Dual Remote Relay Battery Switch

  • Sale
  • $259.95
  • 2 available
  • Egis XD Series ACR/VSR Boat Marine 2 X 500A Dual Remote Relay Battery Switch
  • Specifications:
    • Current Rating: 500A
    • Input Voltage Range: 8.0 Vdc - 36.0 Vdc Auto-Ranging
    • Nominal Voltage: 12 Vdc / 24 Vdc
    • Typ. Source Current For All Ctrl Lines: 10 Microns-Amps
    • Min / Max Operating Temperature: -40 C (-40 F) to 105 C (221 F)
    • Hardware Material: 18-8 Stainless, Self-Locking
    • Terminal Stud Torque (Max): 120 in-lb (13.56 N-m)
    • LED/Aux Output Max Drive Current: 400 Milli-Amps
    • Mechanical Switching Life: 1,000,000 Cycles
  • XD Series Dual Remote Relay ACR/VSR
  • Each relay location is configurable as either a Simple Relay or ACR
  • Single or Dual Wire Relay Control
  • Fully Sealed IP67
  • Manufacturer: Egis
  • Model Number: XD Series
  • Part Number: 8720-1350
  • Also Known As: 22033302
