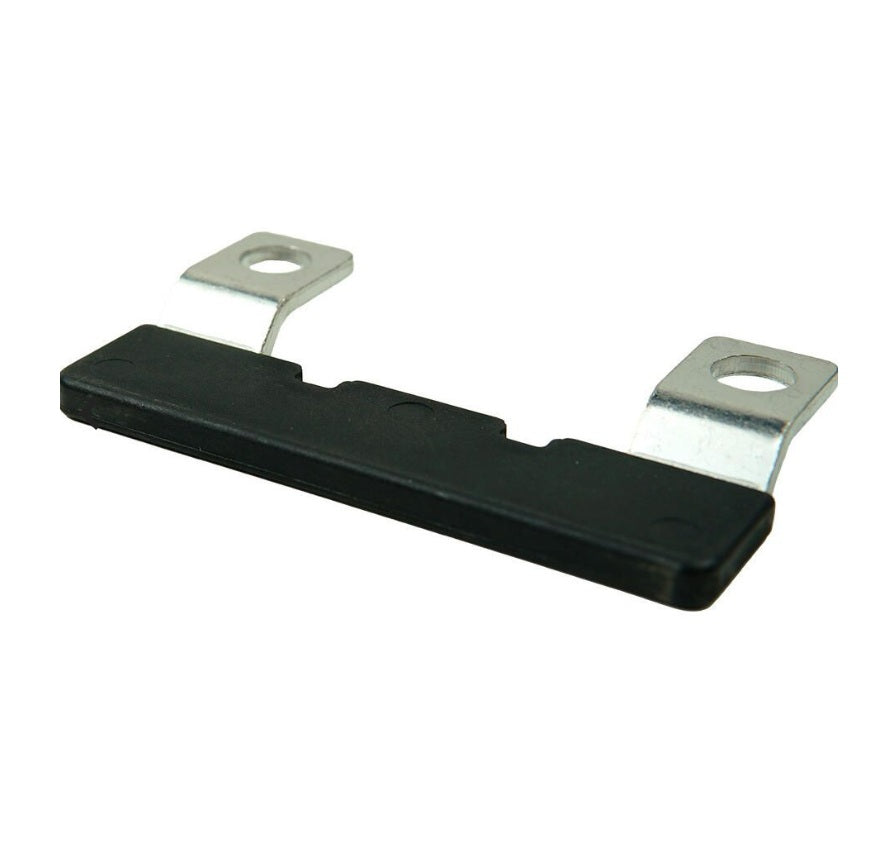

Egis 8791 Boat Marine 500A XD Relay Cross-Over Link Busbar Bus Bar

Egis 8791 Boat Marine 500A XD Relay Cross-Over Link Busbar Bus Bar

  • Sale
  • $16.95
  • 6 available
  • Egis XD Series Boat Marine 500A XD Relay Cross-Over Link Busbar Bus Bar
  • Dimensions:
    • Length: 3.5" (90mm)
    • Width: 1.85" (47mm)
    • Thickness: 1/8" (2.8mm)
    • Terminal Stud Hole Size: 3/8" (10.5mm)
  • Continuous Current: 500A
  • Maximum Voltage: 72 VDC
  • Material: Tin-Plated Copper
  • Link Together XD Single, Dual And Triple XD Relays
  • Robust Protective Insulation
  • Connects SD Relays
  • Reduces Bulky Wiring
  • Manufacturer: Egis
  • Model Number: XD Relay
  • Part Number: 8791
