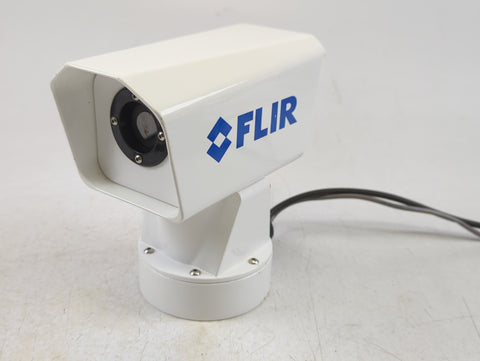

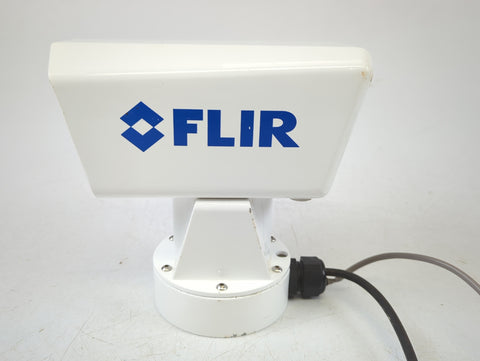

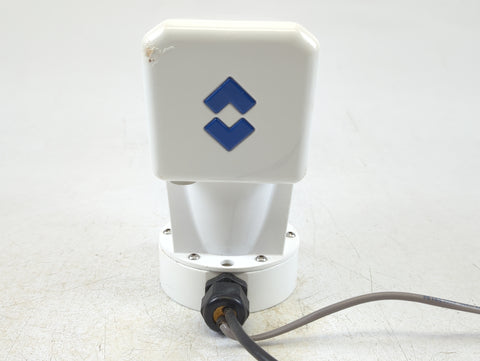

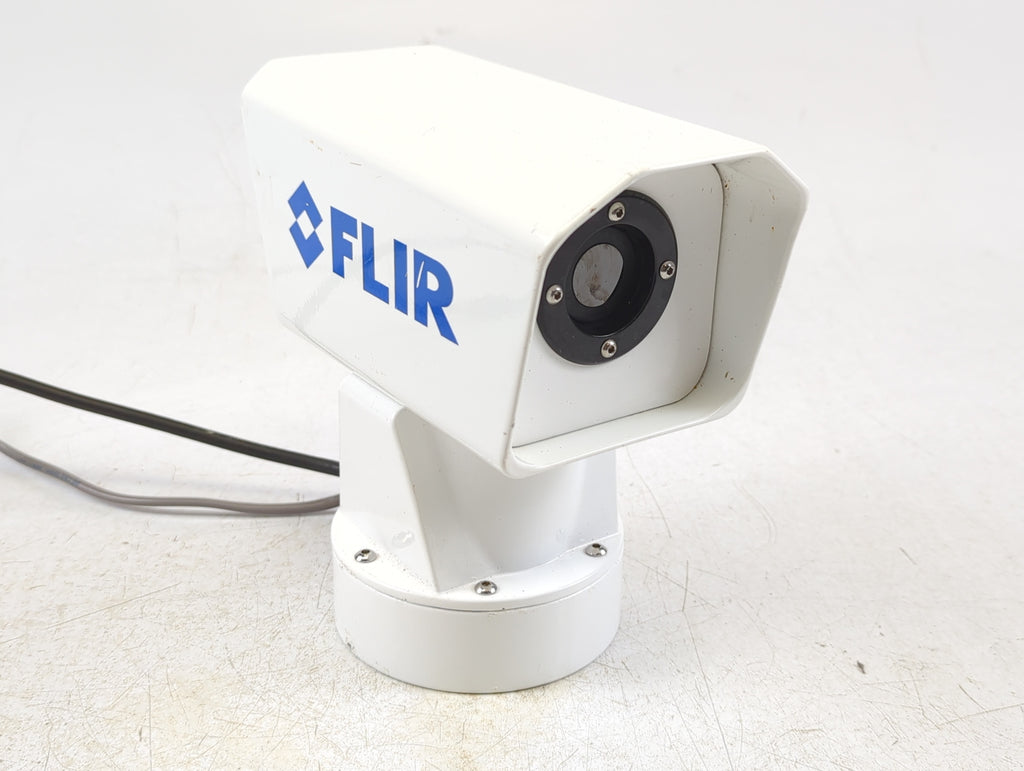

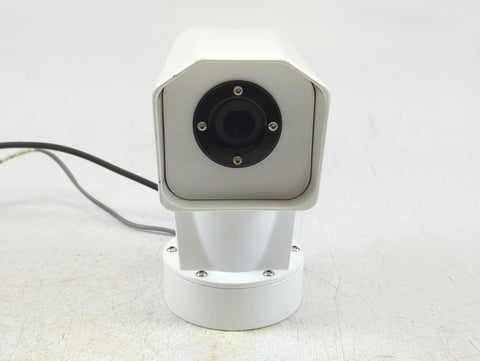

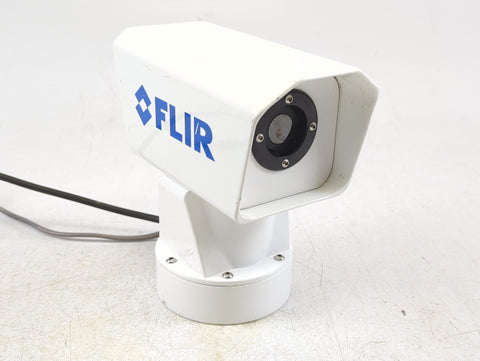

Flir Navigator II SR-19 427-0013-03-00 Boat Marine Fixed Night Vision Thermal Imaging Camera
Sale
Regular price
$499.95
1 available
Flir Navigator II SR-19 427-0013-03-00 Boat Marine Fixed Night Vision Thermal Imaging Camera
The Navigator II thermal imager lets you see floating debris, outcroppings of land, channel markers, and other boats in total darkness and bad weather, allowing you to navigate with confidence day and night.
Features:
Navigation: Thermal imaging cameras make navigation safer and take the guesswork out of cruising, day and night. Navigator II makes crystal-clear images from heat, not light, allowing you to see and avoid virtually any natural or man-made obstacle. Navigate with FLIR and make everyone on board safer; protect you and your boat from things that go ‘bump’ in the night.
Search and Rescue: When someone falls overboard, retrieving them from the water in a timely manner can make the difference between life and death. The Navigator II thermal imager uses the same cutting-edge FLIR technologies that Coast Guards, police agencies, and militaries around the world use for search and rescue.
Easy to Use: Navigator II includes features that make it easier to use than any other pan/tilt thermal imager on the market. On-screen symbology, a programmable Home position, FLIR’s exclusive Accu-Point camera control and position feature, and an improved Joystick Control Unit all make the Navigator II a breeze to use.
Best Image: FLIR knows that the maritime environment is an ever-changing one, so Navigator II comes with color palettes and four Auto-Gain Control (AGC) presets to optimize its thermal image for use in daytime running, nighttime running, man overboard situations, and nighttime docking conditions.
Specifications:
FPA Size (HxV): 320 X 240
Weight: 4.6 lbs (2.1 kg)
Dimensions (LxWxH): 10.5” X 5” X 5.68” (26.7 X 12.7 X 14.4 cm)
Sensor Type: Uncooled Microbolometer
Spectral Range: 7.5 to 13μm
Pixel Pitch: 38 microns
Input Power Range: 14V to 32VDC, 18V to 27VAC
Nominal/Peak Power Requirement: 6/16 W at 24VDC
Fuse: 1 Amp fast-blow mini blade fuse
Operating Temperature Range: -32°C to 55°C (-25°F to 131°F)
Storage Temperature Range: -50°C to 85°C (-58°F to 185°F)
Lens Heater: Thermostat controlled
Analog Video: NTSC or PAL (EIA-170 or CCIR 624, respectively)
Camera Focus: Fixed focus (no adjustment needed)
Minimum Focus: 0.1 meters
Serial Remote Interface: RS-232, RS-422
User Control: Via devices supporting Pelco-D protocol or Windows-based application program (Windows-based GUI)

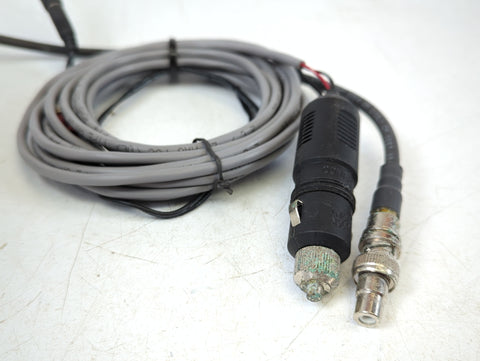

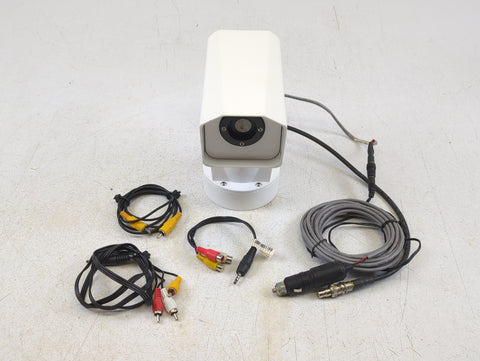

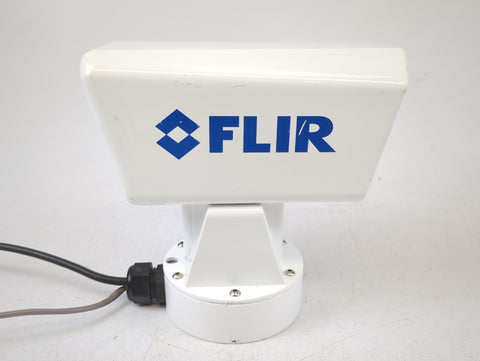

Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
